Part Number # LR989
SKU # 2394843
Image Disclaimers Message
Brand: Crouse Hinds
LR989

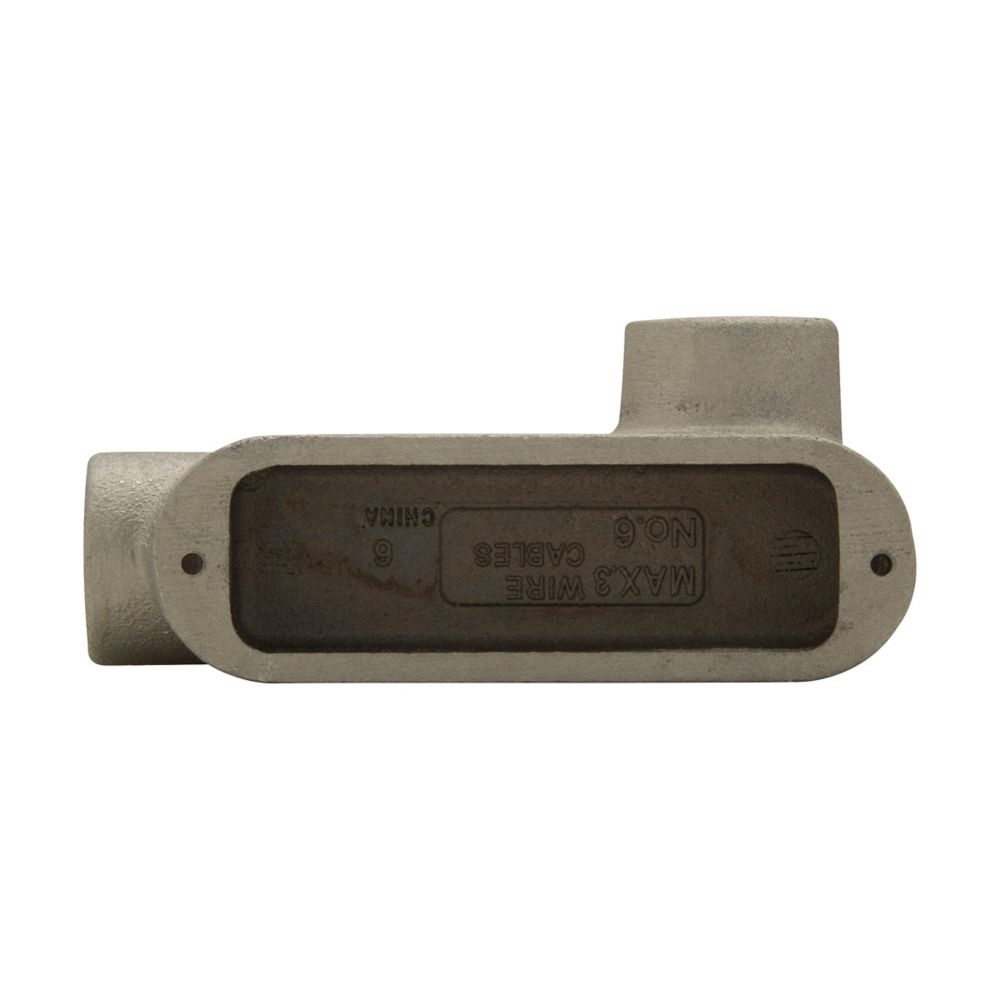

Crouse Hinds LR989 Condulet Conduit Outlet Body
Part Number # LR989
SKU # 2394843
$799.48 / Each
Typical price:$1055.32 / Each
Crouse Hinds LR989 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | LR989 |
| SKU #: | 2394843 |
| Capacity: | 385.5 cu-in |
| Dimensions: | 16-7/8 in L x 8-1/8 in W x 5-11/16 in H |
| Enclosure: | NEMA 3R |
| Finish: | Natural |
| Form: | Mark 9 |
| Hub Size: | 3-1/2 in |
| Type: | Type LR |
| Connection type: | Thread |
| Country of origin: | US |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131708 |
| UPC: | 00078227453080 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$799.48 / Each
Typical price:$1055.32 / Each
Quantity:
- Crouse-Hinds Condulet Conduit Outlet Body, Type LR, 3-1/2 in Hub, 2 Hubs, 385.5 cu-in Capacity, Mark 9 Form, NEMA 3R Enclosure, Thread Connection, Copper-Free Aluminum, Natural, 16-7/8 in L x 8-1/8 in W x 5-11/16 in H Dimensions
LR989 Application
For providing openings for making splices and taps in conductors, connecting conduit sections and rigid conduit, industrial facilities and factoriesLR989 Item Features
- Mark 9 bodies provide more room for heavier conductors
- Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation
- Mark 9 covers feature self retaining cover screws
- Integral gasket on cover or solid neoprene
- Wedgenut or Snaptight cover style
- Right side access opening
- Act as pull outlets for conductors being installed
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
LR989 Standards
UL 514B|CSA C22.2 No. 18|Federal Specification W-C-586DSKU #2394843Part Number #LR989UNSPSC39131708UPC00078227453080
