Part Number # MR3E4BC100A
SKU # 2446849
MR3E4BC100A
Crouse Hinds MR3E4BC100A
Part Number # MR3E4BC100A
SKU # 2446849
$49.52 / Each
Typical price:$65.36 / Each
Crouse Hinds MR3E4BC100A Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | MR3E4BC100A |
| SKU #: | 2446849 |
| Amperage Rating: | 13 A |
| Dimensions: | 10 in L |
| NEMA Rating: | 1/3/4/6P/13 |
| Type: | Style I 3-Pole 1-Phase |
| Country of origin: | MX |
| Material: | Die Cast Zamak 5 Zinc |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00066227533223 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$49.52 / Each
Typical price:$65.36 / Each
Quantity:
Crouse Hinds MR3E4BC100A
Brand: Crouse Hinds
Part Number: MR3E4BC100A

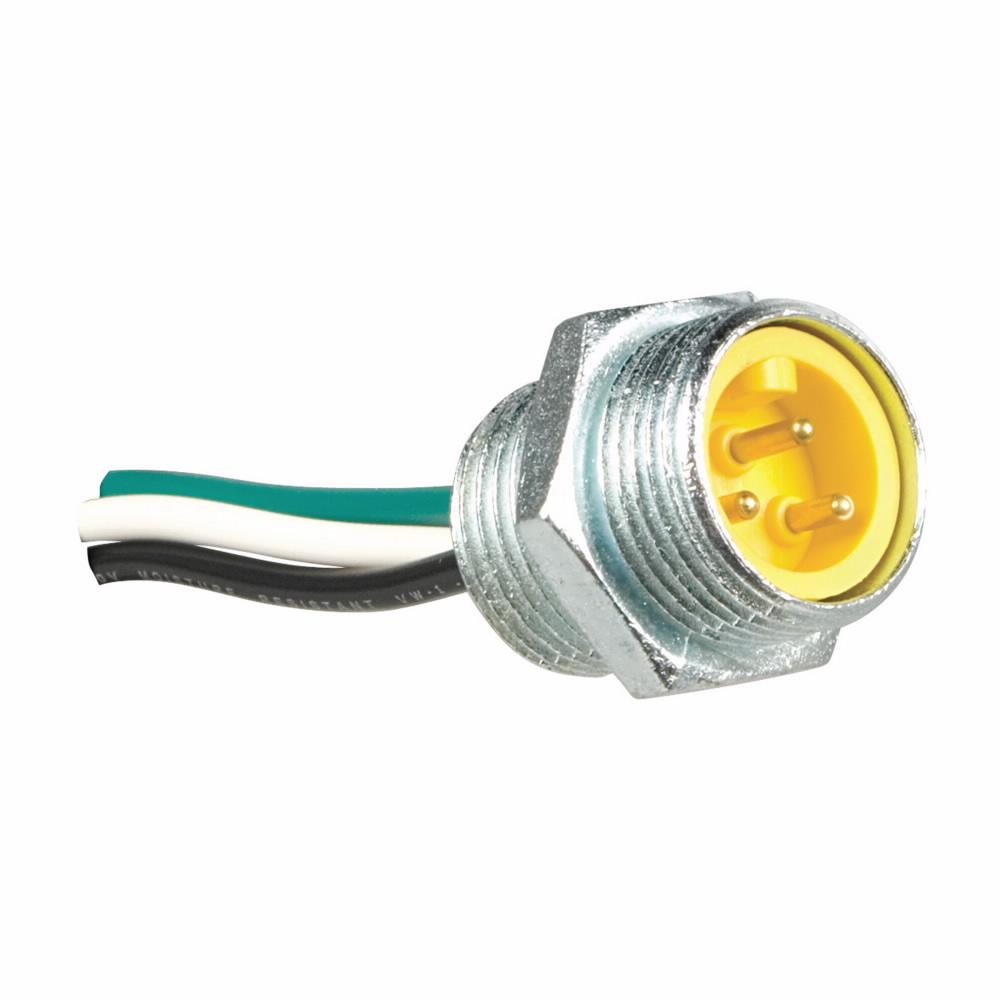

EATON Crouse-Hinds LynxPOWER™ Mini-Line Male Receptacle, Style I 3-Pole 1-Phase, 600 VAC, 13 A, 7800 W Power, 1/3/4/6P/13 NEMA Rating, Die Cast Zamak 5 Zinc, Gray, 10 in L
Additional Description: CRHD-MR3E4BC100A 3P ML M R EXT THRD 1/2IN 16/1C 10IN
Catalog Description: Eaton Crouse-Hinds series LynxPOWER Mini-Line receptacle, 13A, #16 AWG, Male receptacle, external thread, 1/2"-14 NPT, Passive, Zinc, Three-pole, Style I, 10 in cable length
MR3E4BC100A Application
Industrial Facilities and Factories, Facility, Power Distribution and Control ApplicationsMR3E4BC100A Item Features
- Modular components allow for easy expansion and reconfiguration without the need for rewiring, eliminates the need for multiple cable assemblies, reduces installation time, reduces design time and lessens the need for special tools
- Environmentally sealed connectors rated at IP68 to prevent the ingress of dust, water and other contaminants to reduce maintenance and downtime
- Compact space-saving receptacle bodies
- Superior female contact design with stainless steel sleeve for minimal degradation
- Receptacle-to-pigtail potting bonds securely for excellent reliability
- Internal contact support maintains pin location and proper keyway alignment
- Shroud and cork design exceeds IP68 and NEMA 6P rating (rated 1200 psi hose down spray)
- Control panel or box mounting
- 16 AWG single conductor PVC US standard color code
- 1/2-14 NPT mounting thread
MR3E4BC100A Standards
CSA LR13963|CSA LR13964|IEC IP68|SAE H178-2|UL 2238 E468986|UL Recognized|UL E169897SKU #2446849Part Number #MR3E4BC100AUNSPSC39121406UPC00066227533223
Image provided may only be a representation of final product and may include optional equipment
