Part Number # PVML-5-P-R1-UNV1
SKU # 2383913
PVML-5-P-R1-UNV1

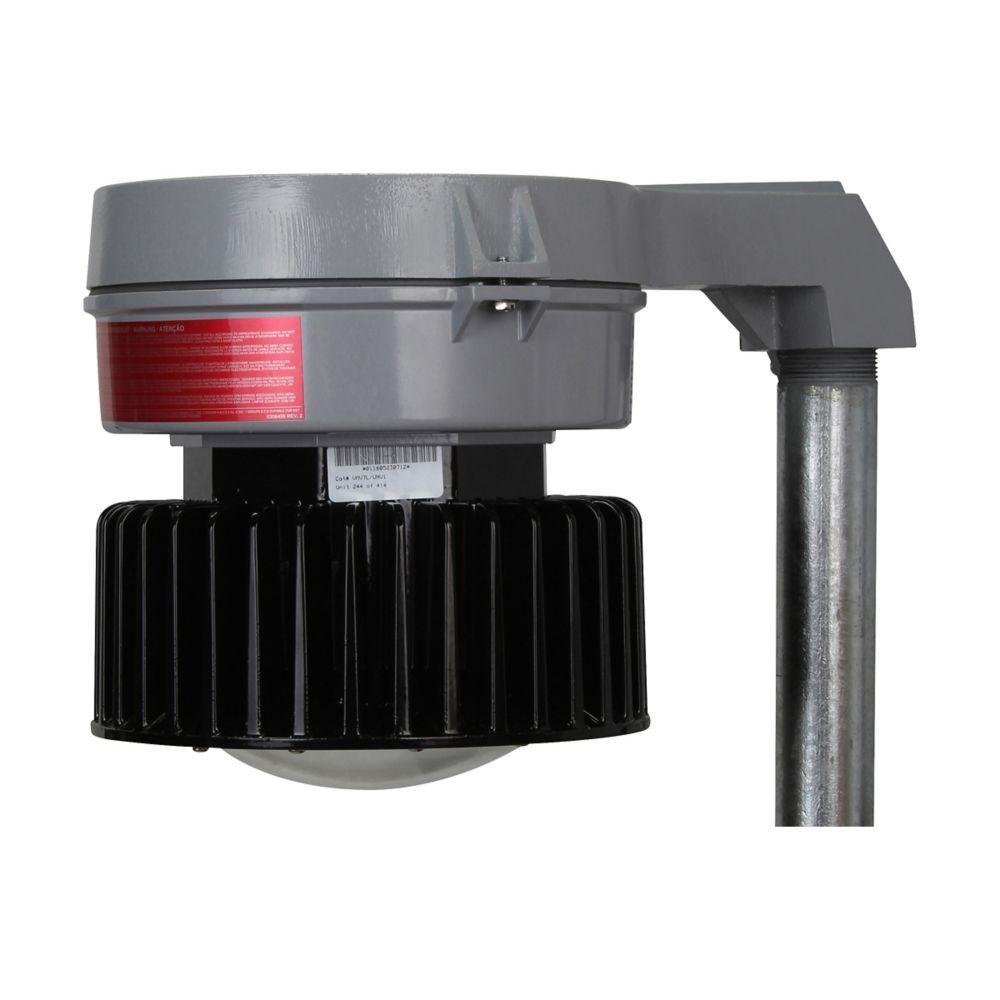

Crouse Hinds PVML-5-P-R1-UNV1 Pro Luminaire
Part Number # PVML-5-P-R1-UNV1
SKU # 2383913
Crouse Hinds PVML-5-P-R1-UNV1 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | PVML-5-P-R1-UNV1 |
| SKU #: | 2383913 |
| Amperage Rating: | 0.45 to 0.16, 0.45 to 0.16 A |
| Dimensions: | 16.03 in L x 11.1 in H |
| Fixture Wattage: | 43, 43 W |
| Light Output: | 127, 127 Lumens/W |
| Lumens: | 5045, 5045 Lumens |
| Series: | PVML |
| Type: | Type I Optic Straight |
| Mounting type: | Stanchion |
| UNSPSC: | 39112102 |
| UPC: | 00066227688029 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds PVML-5-P-R1-UNV1 Pro Luminaire
Brand: Crouse Hinds
Part Number: PVML-5-P-R1-UNV1
Crouse-Hinds Champ Pro Luminaire, Type I Optic Straight, Series: PVML, 100 to 277 VAC/127 to 250 VDC VAC/VDC, 43 W Fixture, 0.45 to 0.16 A, LED Lamp, 100 W Lamp, 127 Lumens/W, 60000 hr Average Life, Cool White Light, 5000 K Color, 70 CRI, Dimmable Ballast, Clear Glass Lens, 5045 Lumens, NEMA 4X/IP66, Stanchion Mount, Die Cast Aluminum Housing, Epoxy Powder Coated Housing, 16.03 in L x 11.1 in H
Additional Description: CRHD-PVML-5-P-R1-UNV1 (N) LED LT STNCH MNT 1-1/2 HUB TYPE I NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Champ Pro PVML LED fixture, Cool white, 100W HID equivalent, No guard, Glass lens, 5000 lumens, 126 lm/W, Die cast aluminum, Stanchion straight, Type I, 1-1/2" trade size, 100-277 Vac, 127-250 Vdc, 43W
PVML-5-P-R1-UNV1 Application
Heavy Industrial, Mine Site Processing Areas, Platforms, Loading Docks, Tunnels, Indoor/Outdoor Spotlighting, Outdoor Wall, Stanchion Mounted General Area Lighting and Areas Requiring Frequent On and Off of Lights, Extremely Corrosive, Wet, Dusty, Hot and/or Cold Conditions ExistPVML-5-P-R1-UNV1 Item Features
- Instant illumination and restrike
- Better visibility with crisp, white light
- Cold temperature operation/no warm-up required
- Easy installation compact modular fixture attaches onto existing Champ mounting module
- Energy efficient up to 77% energy savings over HID
- Contains no mercury or other hazardous substances
- Shock and vibration resistant solid state luminaires have no filaments or glass components that could break greatly reduces the risk of premature failure
- Full cut-off with no wasted light above the fixture
- Without wire guard
PVML-5-P-R1-UNV1 Standards
CE Certified|cUL Listed to CSA C22.2 #250|CEC Certified|DLC Listed|NEC Certified|UL 1598/1598ASKU #2383913Part Number #PVML-5-P-R1-UNV1UNSPSC39112102UPC00066227688029
Image provided may only be a representation of final product and may include optional equipment
