Part Number # SP3463D
SKU # 2303496
Image Disclaimers Message
SP3463D

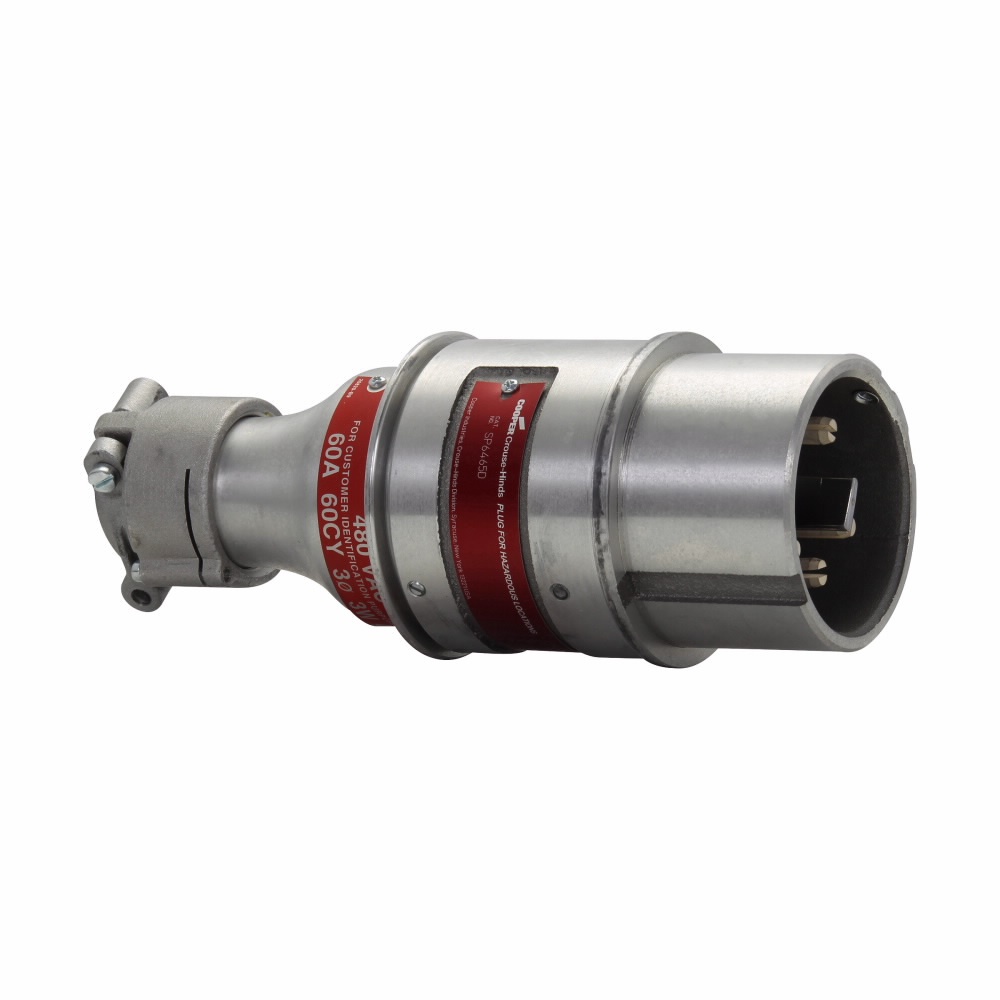

Crouse Hinds SP3463D Interlocked Plug
Part Number # SP3463D
SKU # 2303496
$1766.61 / Each
Typical price:$2331.92 / Each
Crouse Hinds SP3463D Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | SP3463D |
| SKU #: | 2303496 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 5 in Dia x 10-3/4 in L |
| Enclosure: | NEMA 3/7D/9F/9G/12 |
| Frequency Rating: | 60 to 400, 60 to 400 Hz |
| NEMA Rating: | NEMA 3/7D/9F/9G/12 |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Type: | Dead Front Dust Ignition Proof Explosionproof Raintight, Dead Front Dust-Ignitionproof Explosionproof Raintight |
| Country of origin: | US |
| Material: | Copper Free Aluminum, Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00782274082974 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1766.61 / Each
Typical price:$2331.92 / Each
Quantity:
- EATON Interlocked Plug, Dead Front Dust-Ignitionproof Explosionproof Raintight, 480 VAC, 30 A, 60 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/7D/9F/9G/12 NEMA Rating, Copper-Free Aluminum, 5 in Dia x 10-3/4 in L Dimensions
SP3463D Application
Wet Locations, Motor Generator Sets, Compressors, Heating and Cooling Units, Conveyors and Lighting Systems, Industrial Facilities, Factories, Power Distribution and Control ApplicationsSP3463D Includes
Cable Grip and Neoprene BushingSP3463D Item Features
- Dust-ignitionproof, raintight
- Plugs are furnished with pressure terminations
- Use in areas which are hazardous due to the presence of flammable vapors or gases and combustible dusts
- Indoors or outdoors at petroleum refineries, chemical and petrochemical plants, as well as facilities for processing and handling grain, flour and starch
- Positive engagement without mismatching is assured by a distinct physical polarization of the plug and receptacle in every rating
- 1/2 to 7/8 in Dia cable
SP3463D Standards
ANSI Specified|UL 1010|NEC CompliantSKU #2303496Part Number #SP3463DUNSPSC39121402UPC00782274082974
