SRD3584NW

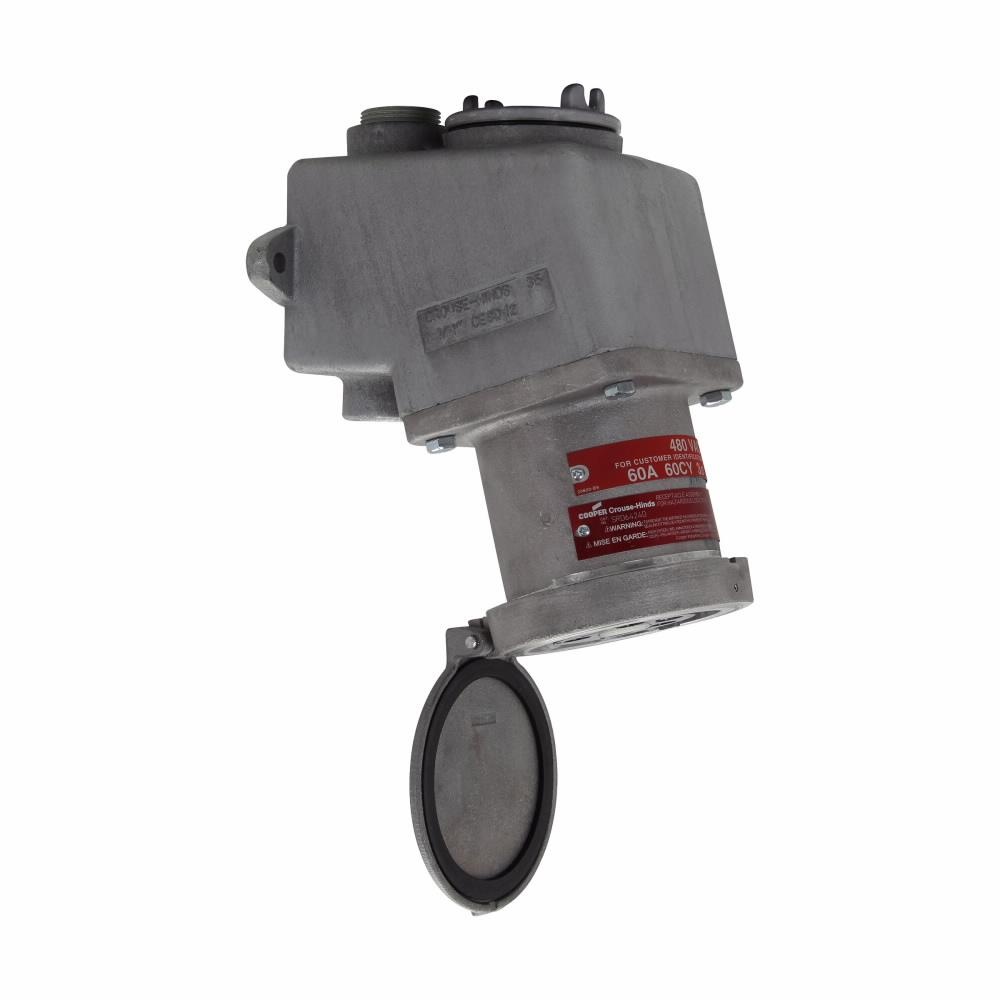

Crouse Hinds SRD3584NW Receptacle Assembly
Part Number # SRD3584NW
SKU # 2215054
Crouse Hinds SRD3584NW Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | SRD3584NW |
| SKU #: | 2215054 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 7-1/4 in L x 9-15/16 in W x 18-1/2 in H |
| Enclosure: | NEMA 3/12/7D/9F/9G, NEMA 3/7D/9F/9G/12 |
| Frequency Rating: | 60 to 400, 60 to 400 Hz |
| Number of Poles: | 5 |
| Number of Wires: | 4 |
| Series: | SRD |
| Type: | Dead Front Interlocked, Style 2 Dead Front Explosionproof Through-Feed |
| Color: | Natural |
| Country of origin: | US |
| Material: | Copper Free Aluminum, Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00782274083223 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds SRD3584NW Receptacle Assembly
Brand: Crouse Hinds
Part Number: SRD3584NW
Crouse-Hinds Interlocked Receptacle, Style 2 Dead Front Explosionproof Through-Feed, Series: SRD, 480 VAC, 30 A, 60 to 400 Hz Frequency, 5 Pole, 4 Wires, NEMA 3/7D/9F/9G/12 Enclosure, Copper-Free Aluminum, Natural, 7-1/4 in L x 9-15/16 in W x 18-1/2 in H Dimensions
Additional Description: CRHD-SRD3584NW (N) 30A 4W5P DF INTRLCK RCPT FS SWT THRD CAP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series SRD interlocked receptacle with switch, 30A, Through feed, Four-wire, five-pole, Brass contacts, Style 2, Copper-free aluminum, Threaded cap, 1-1/4", 480 Vac
SRD3584NW Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Motor Generator Sets, Compressors, Heating and Cooling Units, Lighting Systems and Conveyors, Petroleum Refineries, Chemical and Petrochemical Plants, Grain Processing, Handling Facilities and Wet Location ApplicationsSRD3584NW Item Features
- Feature a built-in rotary switch that operates automatically when the plug is inserted and withdrawn, the switch, capable of making and breaking the circuit at full rated load, is operated by a helical blade in the center of the plug
- The plug and receptacle contacts cannot be made or broken under load, when the plug is inserted, the plug and receptacle contacts engage before the switch closes
- When the plug is withdrawn, the switch opens before the plug and receptacle contacts disengage, this sequence of operation provides the maximum safety of a dead front receptacle, arcing is isolated in a flame-tight and dusttight chamber
- Operation is simple, safe and positive, to disconnect the portable device, the plug is simply pulled straight out, no separate interlock device or operating handle need be actuated
- Positive engagement without mismatching is assured by a distinct physical polarization of the plug and receptacle in every rating
- Plugs are furnished with pressure terminations, receptacles are furnished with flexible leads for splicing to the supply conductors, a threaded cover at the top provides access to the wiring compartment
- Back box is provided with 1-1/4 in vertical feed-through hubs
- Dust-ignitionproof and raintight
SRD3584NW Standards
ANSI Specified|UL 1010|NEC Certified|Class I, Division 1/2, Group D, Class II, Division 1/2, Group F/G, Class IIISKU #2215054Part Number #SRD3584NWUNSPSC39121406UPC00782274083223
