T27CG

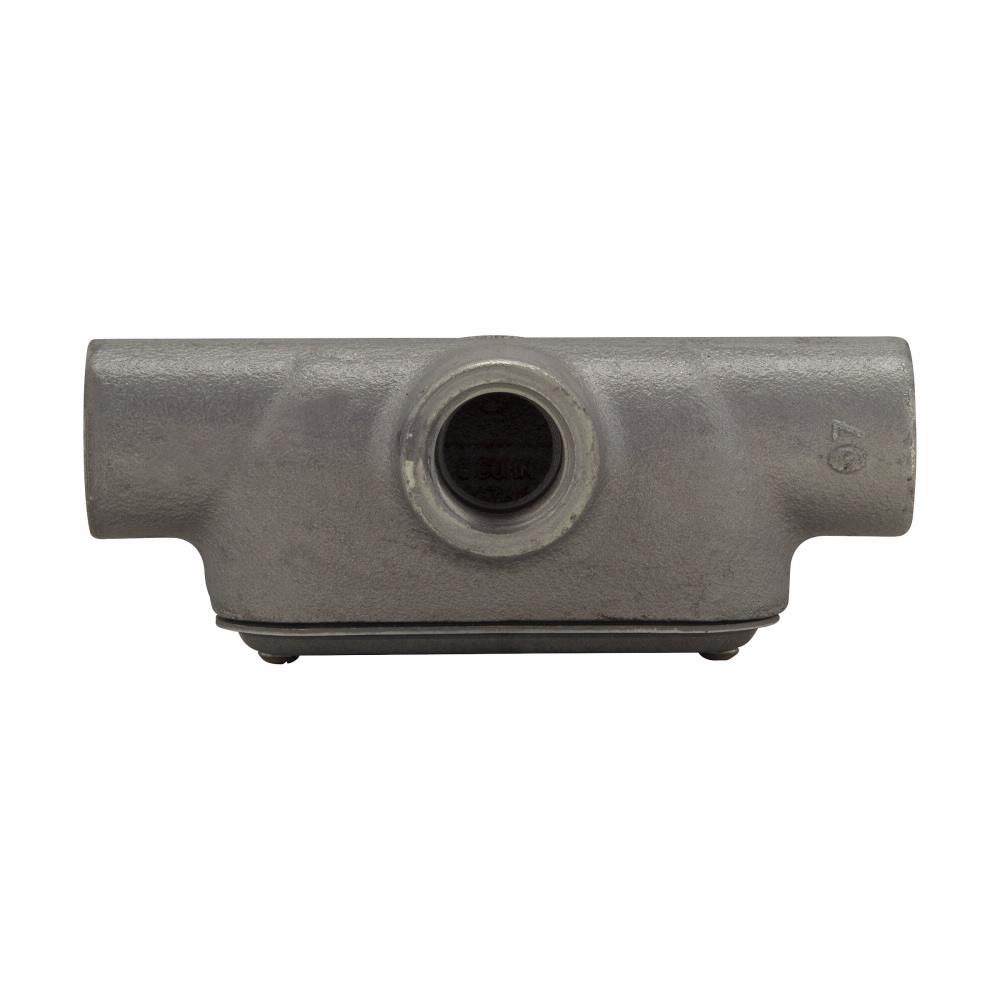

Crouse Hinds T27CG Conduit Outlet Body
Part Number # T27CG
SKU # 2380129
$305.60 / 5Each
Typical price:$403.40 / Each
Crouse Hinds T27CG Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | T27CG |
| SKU #: | 2380129 |
| Dimensions: | 6-1/4 in L x 2 in W x 2-5/8 in H |
| UNSPSC: | 39131708 |
| UPC: | 00782274141091 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$305.60 / 5Each
Typical price:$403.40 / Each
Quantity:
Crouse Hinds T27CG Conduit Outlet Body
Brand: Crouse Hinds
Part Number: T27CG
EATON Crouse-Hinds Condulet SnapPack Conduit Outlet Body, Type T, 3/4 in Hub, 3 Hubs, 9 cu-in Capacity, 7, NPT, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 6-1/4 in L x 2 in W x 2-5/8 in H
Additional Description: CRHD-T27CG 3/4 T FORM 7 CNDT OUTLET BODY CVR/GASK
Catalog Description: Eaton Crouse-Hinds series Condulet Form 7 SnapPack conduit outlet body, gasket and cover, Feraloy iron alloy, T shape, 3/4"
T27CG Application
For use in rigid conduit systems and industrial facilities and factoriesT27CG Item Features
- Act as pull outlets for conductors being installed
- Provide an opening for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide access to conductors in a conduit system for maintenance and future system changes
- All SnapPack product is individually bar coded to facilitate more efficient inventory control
- Distributors and end users need to stock a single sku instead of three separate component numbers, order the body, cover and gasket with one catalog number, saving transaction costs and making product selection and merchandising fast and easy
- Form 7 conduit bodies are compact with a round back design for neat, efficient installations
- Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation
- Sheet steel wedgenut cover is provided with integral gasket, the wedgenut design facilitates installation and removal, nuts and screws are held captive in cover
- Cover screws are stainless steel with a combination slotted and Phillips head, for easy installation and superior corrosion protection
T27CG Standards
UL 514B|CSA C22.2 No. 18SKU #2380129Part Number #T27CGUNSPSC39131708UPC00782274141091
Image provided may only be a representation of final product and may include optional equipment
