T97
Crouse Hinds T97 Condulet Conduit Outlet Body
Part Number # T97
SKU # 2394866
Crouse Hinds T97 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | T97 |
| SKU #: | 2394866 |
| Dimensions: | 14-5/16 in L x 6-15/16 in W x 4-7/8 in H |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Material: | Feraloy Iron Alloy |
| UNSPSC: | 39131708 |
| UPC: | 00782274628806 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds T97 Condulet Conduit Outlet Body
Brand: Crouse Hinds
Part Number: T97
Crouse-Hinds Condulet Conduit Outlet Body, Type T, 3-1/2 in Hub, 3 Hubs, 216 cu-in Capacity, 7 Form, NEMA 3R Enclosure, Thread Connection, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 14-5/16 in L x 6-15/16 in W x 4-7/8 in H Dimensions
Additional Description: CRHD-T97 (N) 3 1/2 NPT IRON T FORM 7 COND BDY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, T shape, 3-1/2"
T97 Application
For use in rigid conduit systems and industrial facilities and factoriesT97 Item Features
- Form 7 Condulet outlet bodies approach conduit in size for neat, compact installations
- Stainless steel cover screw
- Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation
- Form 7 has exclusive Snaptight and wedgenut cover attachment to provide clear, unobstructed cover opening
- Wedgenut design facilitates installation and removal
- Nuts are held captive in cover, covers can be used with or without gaskets
- Form 7 covers with integral sealing gaskets are installed without the use of screws, reducing installation time and costs
- Act as pull outlets for conductors being installed
- Provides openings for making splices and taps in conductors
- Connect conduit sections
- Make 90 deg bends in conduit runs
- Provides taps for branch conduit runs
- Provides for access to conductors for maintenance and future system changes
- Electro-galvanized/aluminum acrylic painted finish
T97 Standards
UL 514B|CSA C22.2 No. 18|Federal Specification W-C-586DSKU #2394866Part Number #T97UNSPSC39131708UPC00782274628806

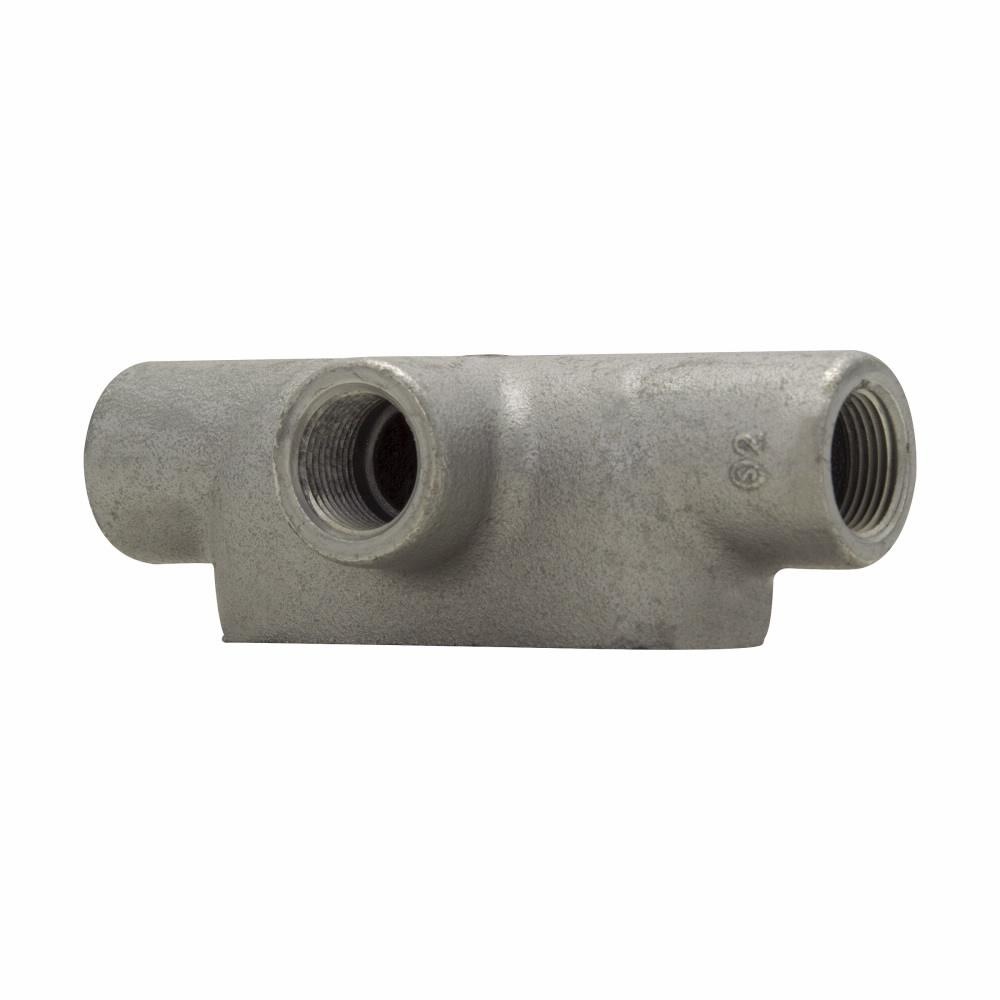

Image provided may only be a representation of final product and may include optional equipment
