Part Number # T989
SKU # 2394856
Image Disclaimers Message
Brand: Crouse Hinds
T989

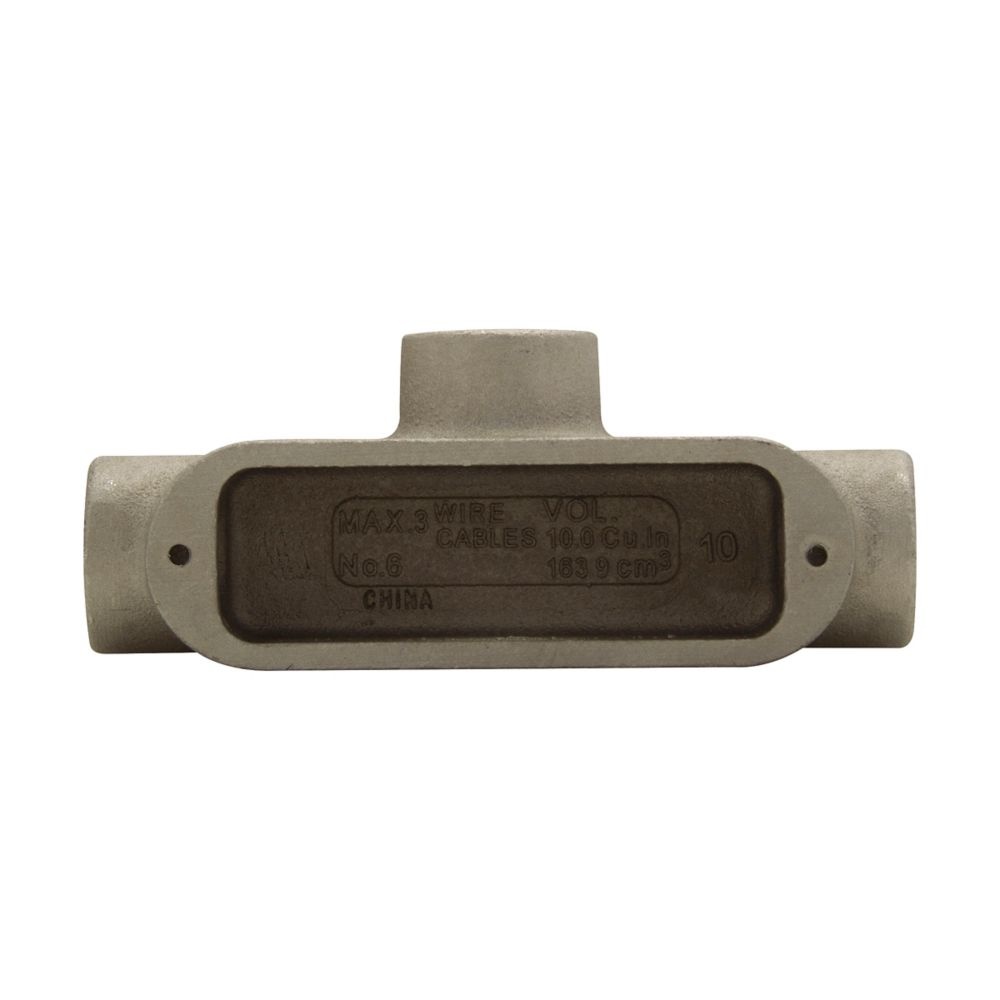

Crouse Hinds T989 Condulet Conduit Outlet Body
Part Number # T989
SKU # 2394856
$957.27 / Each
Typical price:$1263.60 / Each
Crouse Hinds T989 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | T989 |
| SKU #: | 2394856 |
| Capacity: | 398 cu-in |
| Dimensions: | 18-3/4 in L x 8-1/8 in W x 5-11/16 in H |
| Finish: | Natural |
| Form: | Mark 9 |
| Hub Size: | 3-1/2 in |
| Type: | Type T |
| Connection type: | NPT |
| Country of origin: | US |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131708 |
| UPC: | 00782274629902 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$957.27 / Each
Typical price:$1263.60 / Each
Quantity:
- EATON Crouse-Hinds Condulet Conduit Outlet Body, Type T, 3-1/2 in Hub, 3 Hubs, 398 cu-in Capacity, Mark 9, NPT, Copper-Free Aluminum, Natural, 18-3/4 in L x 8-1/8 in W x 5-11/16 in H
T989 Application
For use in rigid conduit systems and industrial facilities and factoriesT989 Item Features
- Act as pull outlets for conductors being installed
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
- Mark 9 bodies provide more room for heavier conductors
- Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation
- Roomy interiors deep body cavity provides increased volume allowing higher wiring capacity
- Smooth, rounded integral bushing in each hub protects conductor installation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Completely interchangeable with Crouse-Hinds mark 9 bodies, gaskets and covers
- Equivalent FM9 and mark 9 units have identical applications and installation dimensions
- Smooth hub bushings and cover openings protect conductor insulation, smooth hub openings allow easy conduit joining
- Stainless steel pan head cover screws secure cover to body and provide superior screwdriver seating and torque, cover screws are captive to prevent loss in sizes 1/2 thru 2 in
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
T989 Standards
UL 514B|CSA C22.2 No. 18|Federal Specification W-C-586DSKU #2394856Part Number #T989UNSPSC39131708UPC00782274629902
