Part Number # TB27CG
SKU # 2418258
Image Disclaimers Message
Brand: Crouse Hinds
TB27CG
Crouse Hinds TB27CG
Part Number # TB27CG
SKU # 2418258
$298.40 / 5Each
Typical price:$393.90 / Each
Crouse Hinds TB27CG Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | TB27CG |
| SKU #: | 2418258 |
| Dimensions: | 6-1/4 in L x 2-7/8 in W x 1-3/4 in H |
| Finish: | Aluminum Acrylic Painted/Electro-Galvanized |
| Form: | 7 |
| Hub Size: | 3/4 in |
| Type: | Type TB |
| Connection type: | Thread |
| Country of origin: | US |
| Material: | Feraloy Iron Alloy |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131708 |
| UPC: | 00782274141121 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$298.40 / 5Each
Typical price:$393.90 / Each
Quantity:

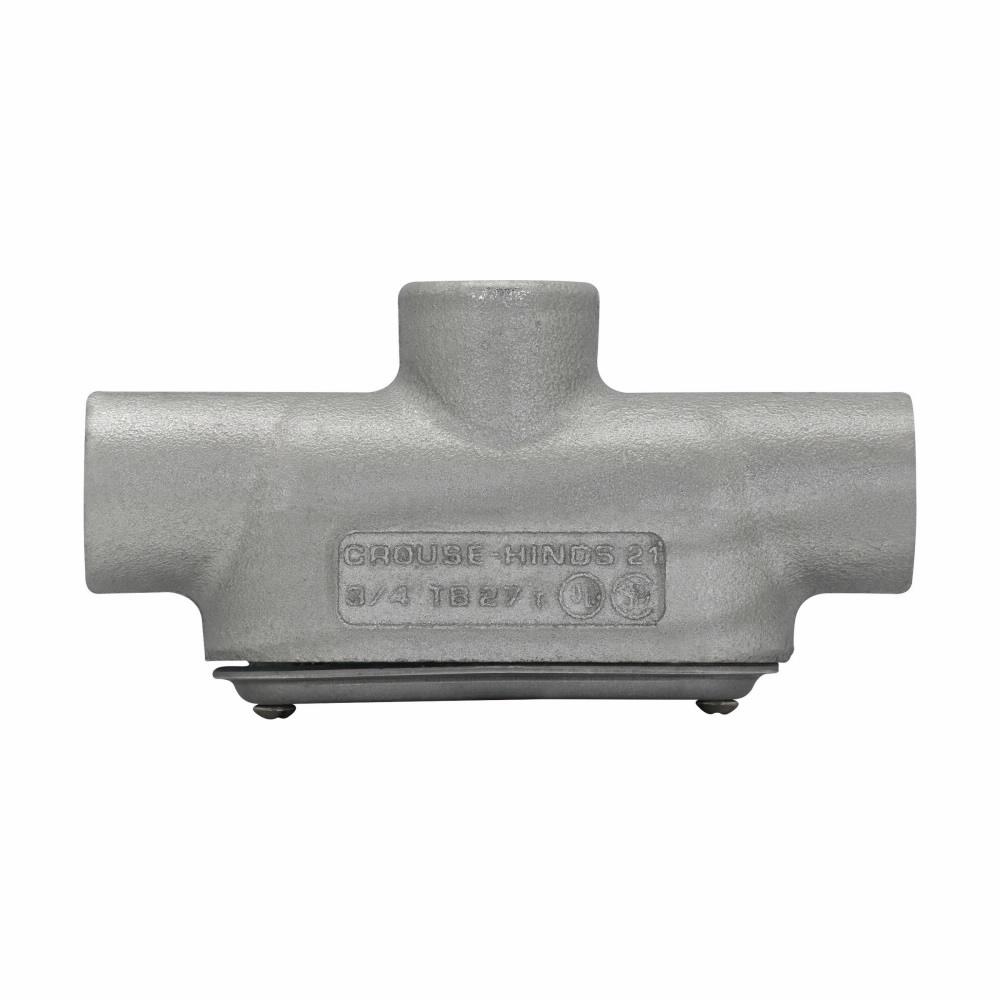

- Crouse-Hinds Condulet SnapPack Conduit Outlet Body, Type TB, 3/4 in Hub, 3 Hubs, 7 Form, Thread Connection, Feraloy Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 6-1/4 in L x 2-7/8 in W x 1-3/4 in H Dimensions
TB27CG Application
For rigid conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors, industry facilities and factories applicationsTB27CG Item Features
- All SnapPack product is individually bar coded to facilitate more efficient inventory control
- Distributors and end users need to stock a single sku instead of three separate component numbers, order the body, cover and gasket with one catalog number saving transaction costs and making product selection and merchandising fast and easy
- Form 7 conduit bodies are compact with a round back design for neat, efficient installations
- Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation
- Sheet steel wedgenut cover is provided with integral gasket
- The wedgenut design facilitates installation and removal
- Nuts and screws are held captive in cover
- Cover screws are stainless steel with a combination slotted and phillips head, for easy installation and superior corrosion protection
TB27CG Standards
UL 514B|CSA C22.2 No. 18SKU #2418258Part Number #TB27CGUNSPSC39131708UPC00782274141121
