Part Number # TP521
SKU # 2230781
Image provided may only be a representation of
final product and may include optional equipment
TP521

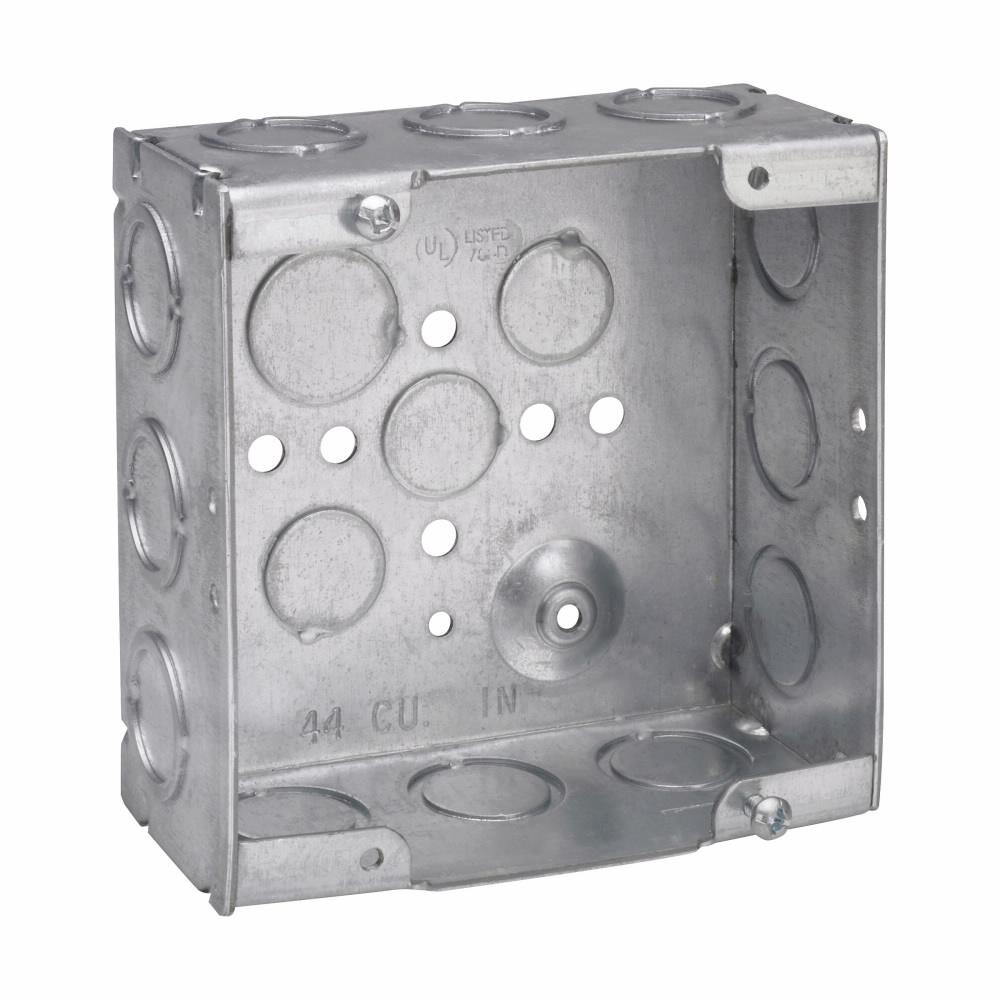

Crouse Hinds TP521 Outlet Box
Part Number # TP521
SKU # 2230781
Crouse Hinds TP521 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | TP521 |
| SKU #: | 2230781 |
| Capacity: | 44, 44 cu-in |
| Dimensions: | 4-11/16 in H x 4-11/16 in W x 2-1/8 in D, 4-11/16 in W x 2-1/8 in D x 4-11/16 in H |
| Knockout Size: | (2) 1/2 in, (2) 3/4 in, (12) 1/2 in, (1) 3/4 in C, (2) 1/2, (2) 3/4, (12) 1/2, (1) 3/4 C in, 1/2 in, 3/4 in |
| Number of Knockouts: | 16 |
| Series: | TP, TP Series |
| Type: | Welded |
| Material: | Steel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121308 |
| UPC: | 00786189105216 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds TP521 Outlet Box
Brand: Crouse Hinds
Part Number: TP521
Crouse-Hinds Thepitt Outlet Box, Welded, Series: TP, 16 Knockouts, (2) 1/2 in, (2) 3/4 in, (12) 1/2 in, (1) 3/4 in C Knockout, Square Shape, 44 cu-in Capacity, Steel, Natural, 4-11/16 in W x 2-1/8 in D x 4-11/16 in H Dimensions
Additional Description: CRHD-TP521 4 11/16 SQ OUTLET BOX WELDED 1/2 & 3/4 KO 2 1/8 D & 3/4 KO 2 1/8 D
Catalog Description: Eaton Crouse-Hinds series Square Outlet Box, (2) 1/2", (2) 3/4", 4-11/16", Conduit (no clamps), Welded, 2-1/8", Steel, (12) 1/2", (1) 3/4" C, 44.0 cubic inch capacity
TP521 Application
For conduit and exposed work application providing an easy method for the installation of electrical device (switches, receptacles, fans, lights), commercial, institutional buildings, structures and other applicationsTP521 Item Features
- (12) 1/2 in with 3/4 in C side knockouts
- (2) 1/2, (2) 3/4 in bottom knockouts
- Raised ground screw locations in the welded boxes saves time in installation
- Concentric knockouts have a 1/2 and 3/4 in knockout in the same locations for customer flexibility
- Knockouts are suitable for use without a bonding jumper in circuits above or below 250 VAC
- Welded or drawn construction to match customer preference
- Extensive cover offering to meet various customer application and needs
TP521 Standards
UL ListedSKU #2230781Part Number #TP521UNSPSC39121308UPC00786189105216
