Part Number # TP525
SKU # 2291063
TP525
Crouse Hinds TP525 Outlet Box
Part Number # TP525
SKU # 2291063
Crouse Hinds TP525 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | TP525 |
| SKU #: | 2291063 |
| Capacity: | 44, 44 cu-in |
| Dimensions: | 4-11/16 in H x 4-11/16 in W x 2-1/8 in D, 4-11/16 in W x 2-1/8 in D x 4-11/16 in H |
| Knockout Size: | (2) 1/2 in, (2) 1/2 in, (1) 3/4 in E, (12) 1/2 in, (1) 3/4 in E, (2) 1/2, (2) 1/2, (1) 3/4 E, (12) 1/2, (1) 3/4 E in, 1/2 in, 3/4 in |
| Number of Knockouts: | 16 |
| Series: | TP, TP Series |
| Type: | Welded |
| Material: | Steel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121308 |
| UPC: | 00786189105254 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds TP525 Outlet Box
Brand: Crouse Hinds
Part Number: TP525
Crouse-Hinds Thepitt Outlet Box, Welded, Series: TP, 16 Knockouts, (2) 1/2 in, (2) 1/2 in, (1) 3/4 in E, (12) 1/2 in, (1) 3/4 in E Knockout, Square Shape, 44 cu-in Capacity, Steel, Natural, 4-11/16 in W x 2-1/8 in D x 4-11/16 in H Dimensions
Additional Description: CRHD-TP525 4 11/16 SQ OUTLET BOX WELDED 1/2 & 3/4 KO 2 1/8 D
Catalog Description: Eaton Crouse-Hinds series Square Outlet Box, (2) 1/2", (2) 1/2", (1) 3/4" E, 4-11/16", Conduit (no clamps), Welded, 2-1/8", Steel, (12) 1/2", (1) 3/4" E, 44.0 cubic inch capacity
TP525 Application
For conduit and exposed work application providing an easy method for the installation of electrical device (switches, receptacles, fans, lights), commercial, institutional buildings, structures and other applicationsTP525 Item Features
- (12) 1/2 in with 3/4 in E side knockouts
- (2) 1/2, (2) 1/2 with 3/4 in E bottom knockouts
- Raised ground screw locations in the welded boxes saves time in installation
- Concentric knockouts have a 1/2 and 3/4 in knockout in the same locations for customer flexibility
- Knockouts are suitable for use without a bonding jumper in circuits above or below 250 VAC
- Welded or drawn construction to match customer preference
- Extensive cover offering to meet various customer application and needs
TP525 Standards
cUL Listed|UL ListedSKU #2291063Part Number #TP525UNSPSC39121308UPC00786189105254

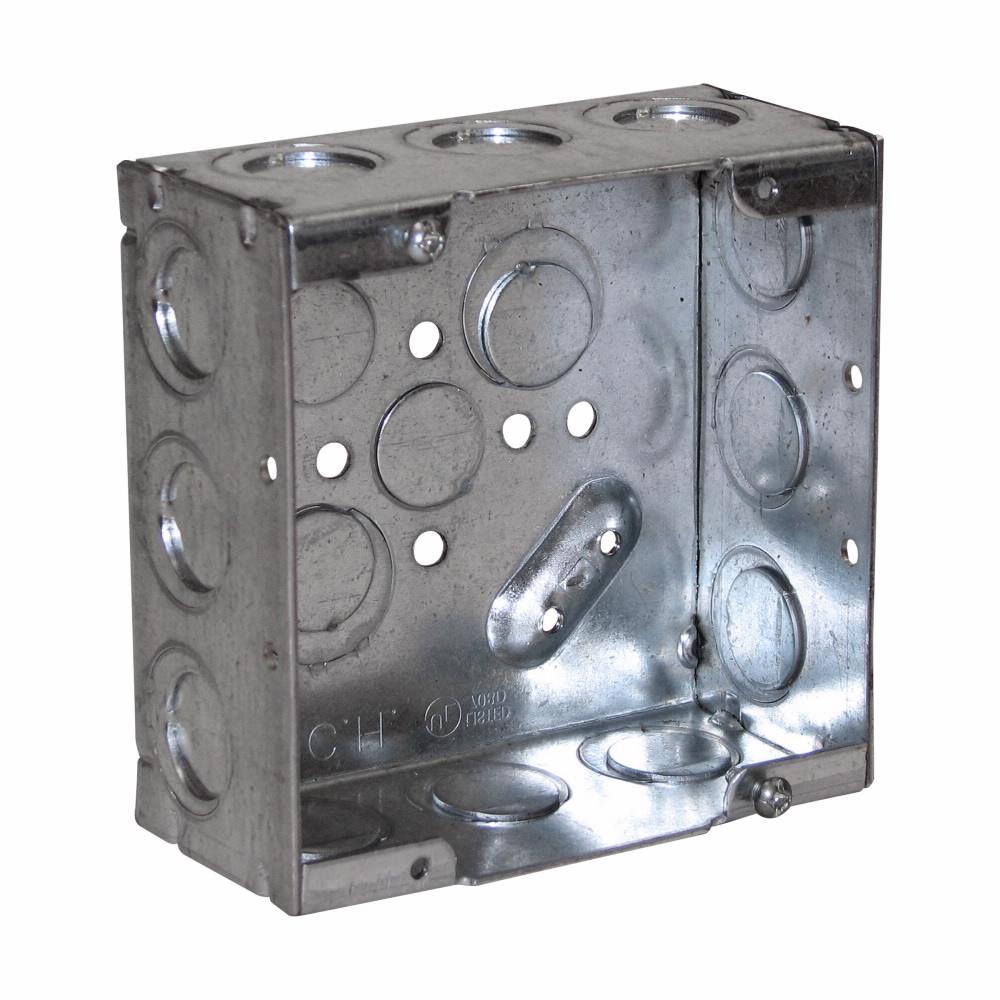

Image provided may only be a representation of final product and may include optional equipment
