Part Number # TP563
SKU # 2137114
TP563

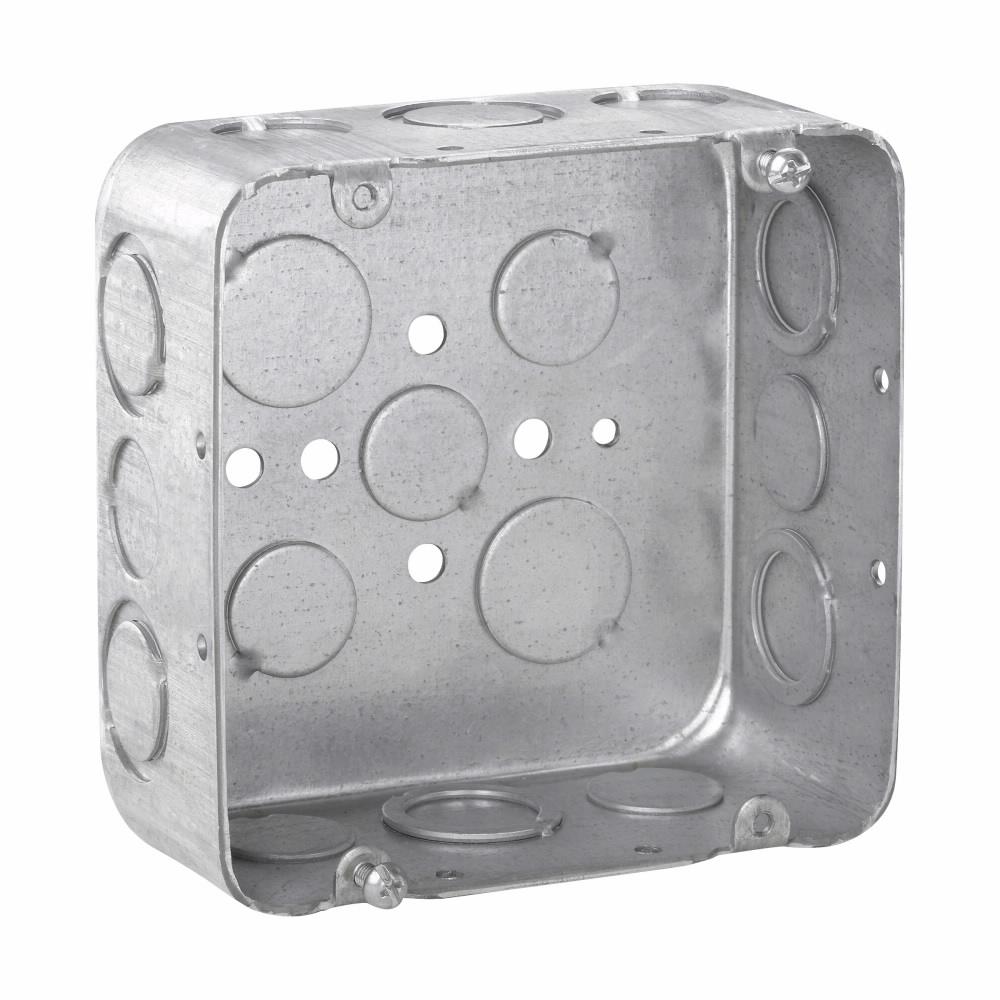

Crouse Hinds TP563 Outlet Box
Part Number # TP563
SKU # 2137114
Crouse Hinds TP563 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | TP563 |
| SKU #: | 2137114 |
| Capacity: | 42, 42 cu-in |
| Dimensions: | 4-11/16 in H x 4-11/16 in W x 2-1/8 in D, 4-11/16 in W x 2-1/8 in D x 4-11/16 in H |
| Knockout Size: | (3) 1/2 in, (2) 3/4 in, (6) 1/2 in, (6) 1/2 in, (1) 3/4 in C, (3) 1/2, (2) 3/4, (6) 1/2, (6) 1/2, (1) 3/4 C in, 1/2 in, 3/4 in |
| Number of Knockouts: | 17 |
| Series: | TP, TP Series |
| Type: | Drawn |
| Country of origin: | US |
| Material: | Steel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121308 |
| UPC: | 00786189105636 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds TP563 Outlet Box
Brand: Crouse Hinds
Part Number: TP563
Crouse-Hinds Thepitt Outlet Box, Drawn, Series: TP, 17 Knockouts, (3) 1/2 in, (2) 3/4 in, (6) 1/2 in, (6) 1/2 in, (1) 3/4 in C Knockout, Square Shape, 42 cu-in Capacity, Steel, Natural, 4-11/16 in W x 2-1/8 in D x 4-11/16 in H Dimensions
Additional Description: CRHD-TP563 72171 1/2 & 3/4 C KO
Catalog Description: Eaton Crouse-Hinds series Square Outlet Box, (3) 1/2", (2) 3/4", 4-11/16", Conduit (no clamps), Drawn, 2-1/8", Steel, (6) 1/2", (6) 1/2", (1) 3/4" C, 42.0 cubic inch capacity
TP563 Application
For conduit and exposed work application providing an easy method for the installation of electrical device (switches, receptacles, fans, lights), commercial, institutional buildings, structures and other applicationsTP563 Item Features
- (6) 1/2, (6) 1/2 with 3/4 in C side knockouts
- (3) 1/2, (2) 3/4 in bottom knockouts
- Raised ground screw locations in the welded boxes saves time in installation
- Concentric knockouts have a 1/2 and 3/4 in knockout in the same locations for customer flexibility
- Knockouts are suitable for use without a bonding jumper in circuits above or below 250 VAC
- Welded or drawn construction to match customer preference
- Extensive cover offering to meet various customer application and needs
TP563 Standards
UL ListedSKU #2137114Part Number #TP563UNSPSC39121308UPC00786189105636
Image provided may only be a representation of final product and may include optional equipment
