Part Number # V2LM2CHT2/UNV1
SKU # 2367530
V2LM2CHT2/UNV1

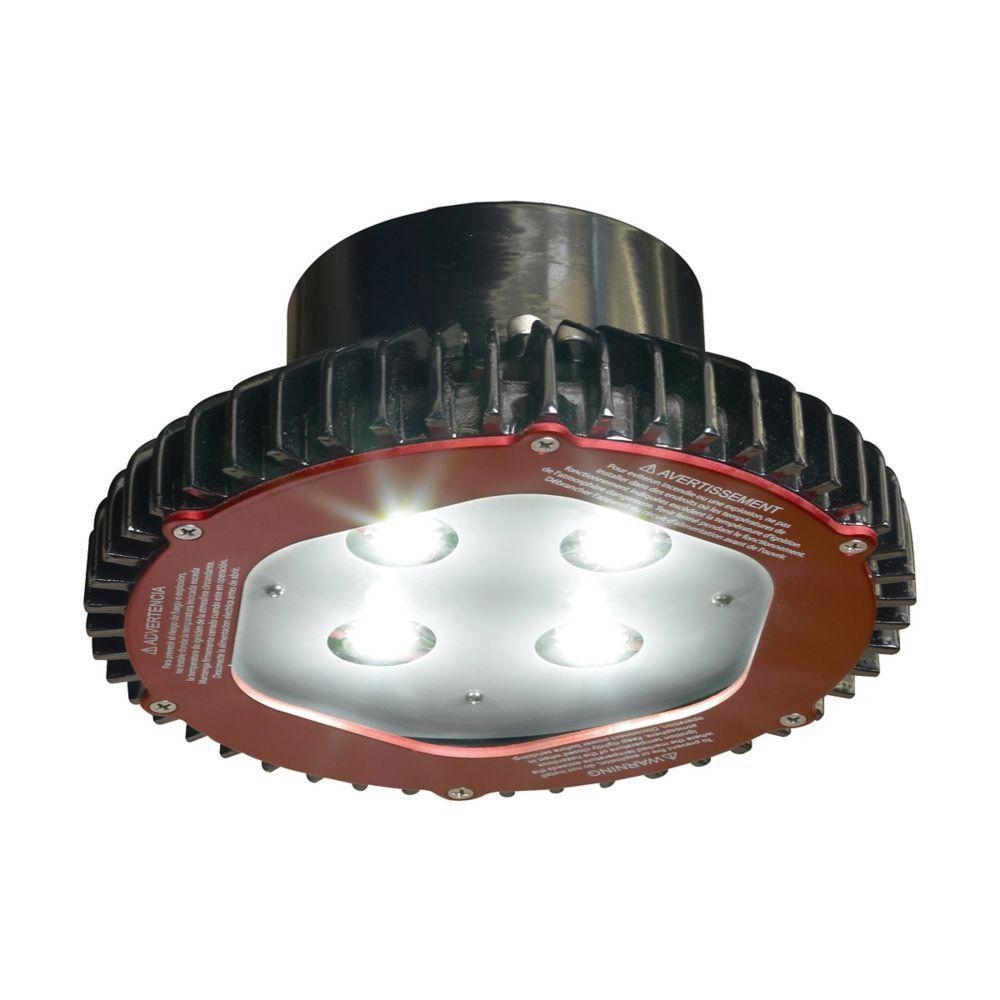

Crouse Hinds Vaporgard V2LM2CHT2/UNV1 Low Profile Hazardous Area Rated Downlight
Part Number # V2LM2CHT2/UNV1
SKU # 2367530
Crouse Hinds V2LM2CHT2/UNV1 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | V2LM2CHT2/UNV1 |
| SKU #: | 2367530 |
| Amperage Rating: | 0.12 A |
| Dimensions: | 11.25 in L x 8.75 in W x 7.06 in H |
| Fixture Wattage: | 14 W |
| Housing Finish: | Corro-Free Epoxy Powder Coated, Corro-free™ Epoxy Powder Coated |
| Light Color: | Cool White |
| Lumens: | 1772 Lumens |
| Type: | Low Profile Hazardous Area Rated |
| Housing material: | Copper-Free Aluminum |
| UNSPSC: | 39112102 |
| UPC: | 00066227684151 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds Vaporgard V2LM2CHT2/UNV1 Low Profile Hazardous Area Rated Downlight
Brand: Crouse Hinds
Part Number: V2LM2CHT2/UNV1
Crouse-Hinds Vaporgard Downlight, Low Profile Hazardous Area Rated, Series: V Series, 120 to 277 VAC, 14 W Fixture, 0.12 A, LED Lamp, 60000 hr Average Life, Cool White Light, 5000 K Color Temperature, 70 CRI, Clear Glass Lens, 1772 Lumens, NEMA 4X/IP66 Enclosure, Wall Mounting, Copper-Free Aluminum Housing Material, Corro-Free Epoxy Powder Coated Housing Finish, 11.25 in L x 8.75 in W x 7.06 in H Dimensions
Additional Description: CRHD-V2LM2CHT2/UNV1 C1D2 LOW PROFILE LED 1500 LM WALL MOUNT COOL WHITE COOL WHITE
Catalog Description: Eaton Crouse-Hinds series Vaporgard V2L LED, 0.12A, Cool white, AC drive, 50W HID or 150-200W incan equiv, 50/60 Hz, Without guard, Heat and impact resistant glass lens, 1700 lm, Copper-free alum, VXT wall mt, 3/4", 120-277 Vac, 14W
V2LM2CHT2/UNV1 Application
Industrial Facilities and Factories - Facility/Lighting and Lighting ControlsV2LM2CHT2/UNV1 Item Features
- Easy installation and replacement - contractor-friendly design is ideal for both retrofit and new construction applications
- Installed using the same wall and ceiling mounts as incandescent Vaporgard fixtures
- Low profile design - unique domeless, low profile design for low mounting heights and confined spaces where incandescent and hid based luminaires are too large to fit in the mechanical envelope required
- Modular design - compact and modular design allows for easy component replacement and future upgrades
- Rugged heat sink - heat sink designed to perform in high ambient temperatures up to 55 deg C and as low as -30 deg C
- Thick walled castings make for a tough, rugged housing that keeps the internal driver and LED temperature down
- Enhance safety and productivity - instant illumination and re-strike
- Cold temperature operation, no warm-up time
- Lightweight, low profile and cool surface temperatures
- Driver with internal fusing for branch circuit protection
- Reduce operation and maintenance costs - high efficacy LEDs can save up to 90% in energy costs
- No mercury or hazardous chemicals - eliminates disposal concerns
- Mounts to existing Vaporgard mounting modules
- Reliable performance in any environment - shock and vibration-resistant
- PTFE coated lens (suffix S896) option for increased safety in food processing facilities
- without guard
V2LM2CHT2/UNV1 Standards
ATEX EN 60079-0: 2012+A11:2013|ATEX EN 60079-31:2014|ATEX EN 60079-7: 2015+A1:2018|CEC Certified|CSA C22.2 No. 137|Hazardous Rating: Class I, Division 2, Groups A, B, C and D/Class II, Divisions 1 and 2, Groups F, G|IEC 60079-0:2011|IEC 60079-31:2013|IEC 60079-7:2017|NEC Certified|UL 844/1598/1598ASKU #2367530Part Number #V2LM2CHT2/UNV1UNSPSC39112102UPC00066227684151
Image provided may only be a representation of final product and may include optional equipment
