Part Number # 1SNA103620R0100
SKU # 2358563
1SNA103620R0100
ENTRELEC 1SNA103620R0100 Terminal Block & Strip Insulating Accessories
Part Number # 1SNA103620R0100
SKU # 2358563
ENTRELEC 1SNA103620R0100 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA103620R0100 |
| SKU #: | 2358563 |
| Series: | SCFEX3 |
| Suitable For Use With: | M10/10/M10/10-PE-N/M16/12/M16/12-2A-G/M16/12-PE-N/M2-5/6-2G-2G/M35/16-2A-2G/M4/6/M4/6-SNB/M4/6-SNBT/M4/6-SNTS/M4/7-R/M6/8/M6/8-SNB/MA2-5/5/MA2-5/5-SNB/MA2-5/5-SNBT/MA2-5/5-CPE/MS4/6/MS6/8 |
| UNSPSC: | 39121425 |
| UPC: | 00662019953199 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

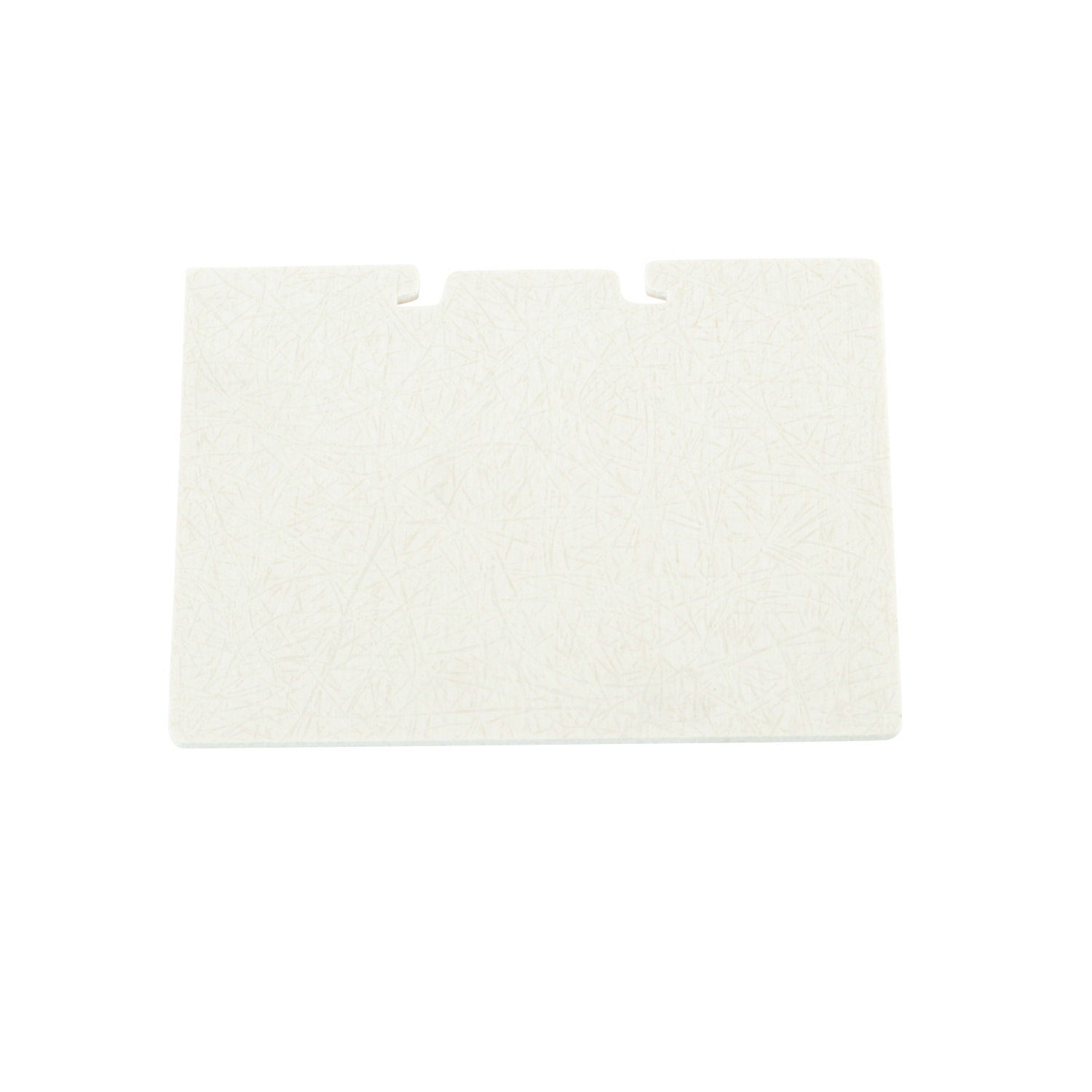

ENTRELEC 1SNA103620R0100 Terminal Block & Strip Insulating Accessories
Brand: ENTRELEC
Part Number: 1SNA103620R0100
TE, 1SNA103620R0100, Partition Plate, Terminal Block, Series: SCFEX3, For Use With: M10/10/M10/10-PE-N/M16/12/M16/12-2A-G/M16/12-PE-N/M2-5/6-2G-2G/M35/16-2A-2G/M4/6/M4/6-SNB/M4/6-SNBT/M4/6-SNTS/M4/7-R/M6/8/M6/8-SNB/MA2-5/5/MA2-5/5-SNB/MA2-5/5-SNBT/MA2-5/5-CPE/MS4/6/MS6/8, Grey
Additional Description: TEC -1SNA103620R0100 SCFEX3 Circuit Separators 010362001
Catalog Description: Terminal Block & Strip Insulating Accessories
1SNA103620R0100 Application
For Separator end section application1SNA103620R0100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA103620R0100 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2358563Part Number #1SNA103620R0100UNSPSC39121425UPC00662019953199
Image provided may only be a representation of final product and may include optional equipment
