Brand: ENTRELEC
1SNA105001R2700

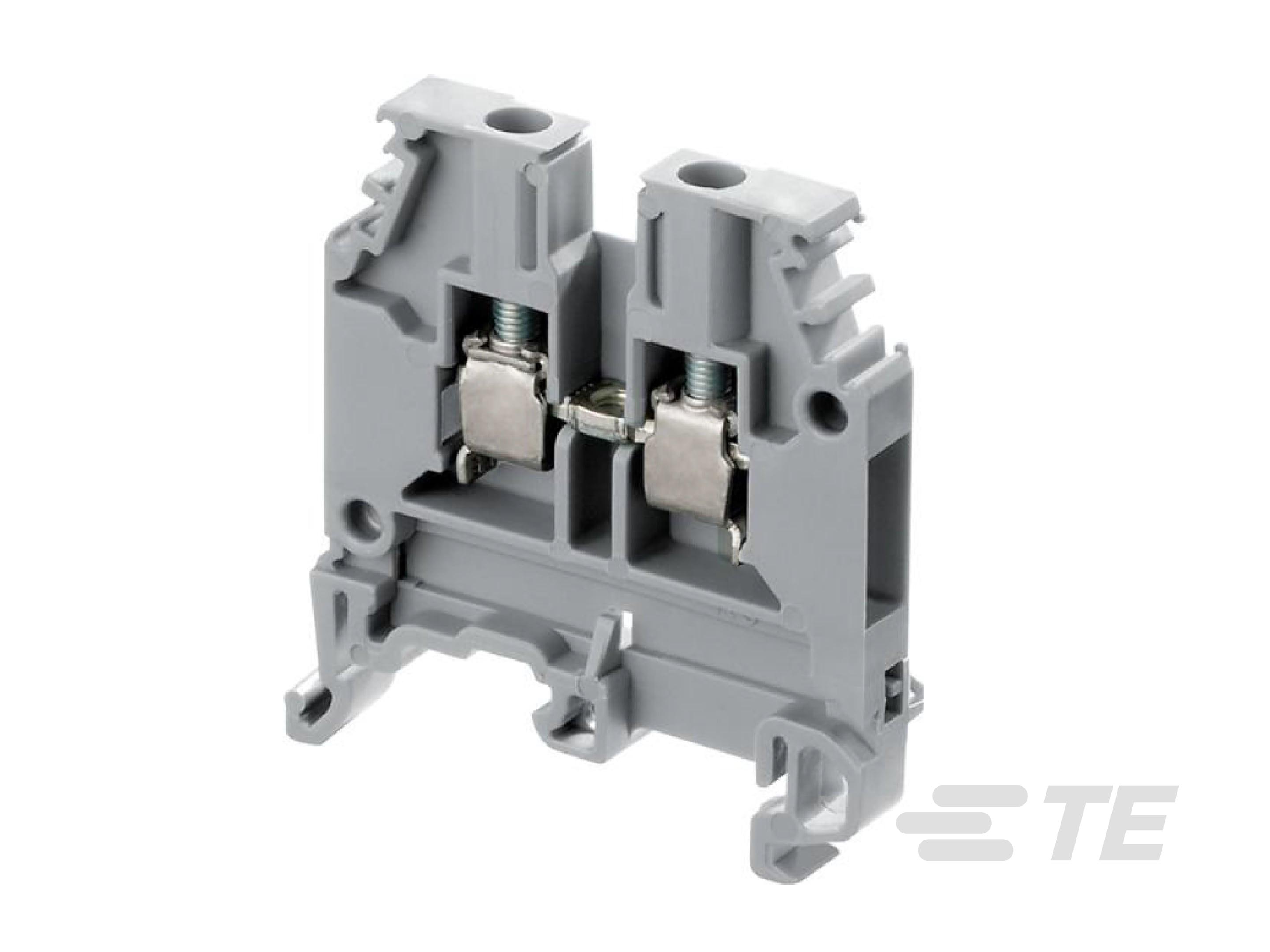

ENTRELEC 1SNA105001R2700 Flexibility: snap onto symmetrical and asymmetrical rails
Part Number # 1SNA105001R2700
SKU # 1711118
$64.00 / 50Each
Typical price:$82.70 / Each
ENTRELEC 1SNA105001R2700 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA105001R2700 |
| SKU #: | 1711118 |
| Amperage Rating: | 32 A |
| Dimensions: | 44.5 mm H x 6 mm W x 40.5 mm L |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Screw |
| Torque Rating: | 0.5 N-m |
| Type: | M4/6 |
| Wire Size: | 10 AWG |
| Color: | Green |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019953441 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$64.00 / 50Each
Typical price:$82.70 / Each
Quantity:
- TE Connectivity, 1SNA105001R2700, TE Connectivityrminal Block, M4/6, Series: SNA, 1 kV, 32 A, 2 Pole, 10 AWG Wire, 9.5 mm Wire Strip Length, 6 mm Spacing, 0.5 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Green, 44.5 mm H x 6 mm W x 40.5 mm L Dimensions
1SNA105001R2700 Application
For Signal1SNA105001R2700 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA105001R2700 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #1711118Part Number #1SNA105001R2700UNSPSC39121410UPC00662019953441
