Part Number # 1SNA105135R1100
SKU # 2194325

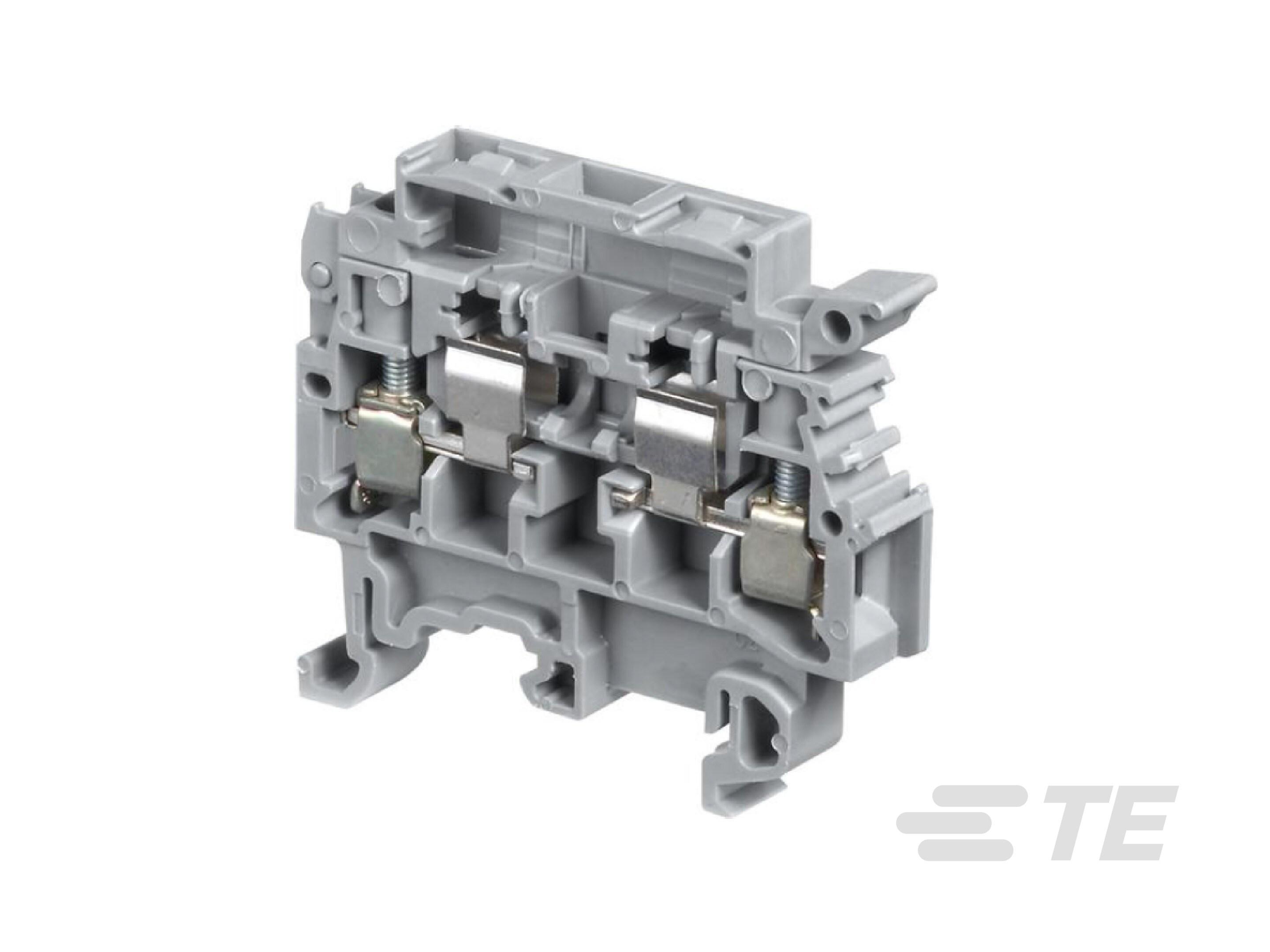

Image provided may only be a representation of
final product and may include optional equipment
1SNA105135R1100
ENTRELEC 1SNA105135R1100 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks).
Part Number # 1SNA105135R1100
SKU # 2194325
ENTRELEC 1SNA105135R1100 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA105135R1100 |
| SKU #: | 2194325 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 56.5 mm H x 8 mm W x 41 mm D |
| Number of Poles: | 2 |
| Spacing: | 8 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | Fused |
| Connection type: | Screw Clamp |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| UNSPSC: | 39121629 |
| UPC: | 00662019953731 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA105135R1100 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks).
Brand: ENTRELEC
Part Number: 1SNA105135R1100
Orange, fuse holder block with 8 mm spacing, 10 Amp rated UL current with screw clamp connection that accepts 22-12 AWG UL wire range
Additional Description: TEC -1SNA105135R1100 M4/8.SF2 Screw Clamp Terminal Blocks - For 5 x 20 and 5 x 25 fuses - Orange 010513511
Catalog Description: Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks).
1SNA105135R1100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
SKU #2194325Part Number #1SNA105135R1100UNSPSC39121629UPC00662019953731
