ENTRELEC 1SNA114825R0500 Possibility of mounting the protective cover CPM and the marker holder PEP
Part Number # 1SNA114825R0500
SKU # 12383

1SNA114825R0500
ENTRELEC 1SNA114825R0500 Possibility of mounting the protective cover CPM and the marker holder PEP
Part Number # 1SNA114825R0500
SKU # 12383
ENTRELEC 1SNA114825R0500 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA114825R0500 |
| SKU #: | 12383 |
| Block Type: | Screw Clamp |
| Suitable For Use With: | Terminal Blocks and Strips |
| Type: | SCFM6 |
| UNSPSC: | 39121425 |
| UPC: | 00662019955711 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA114825R0500 Possibility of mounting the protective cover CPM and the marker holder PEP
Brand: ENTRELEC
Part Number: 1SNA114825R0500

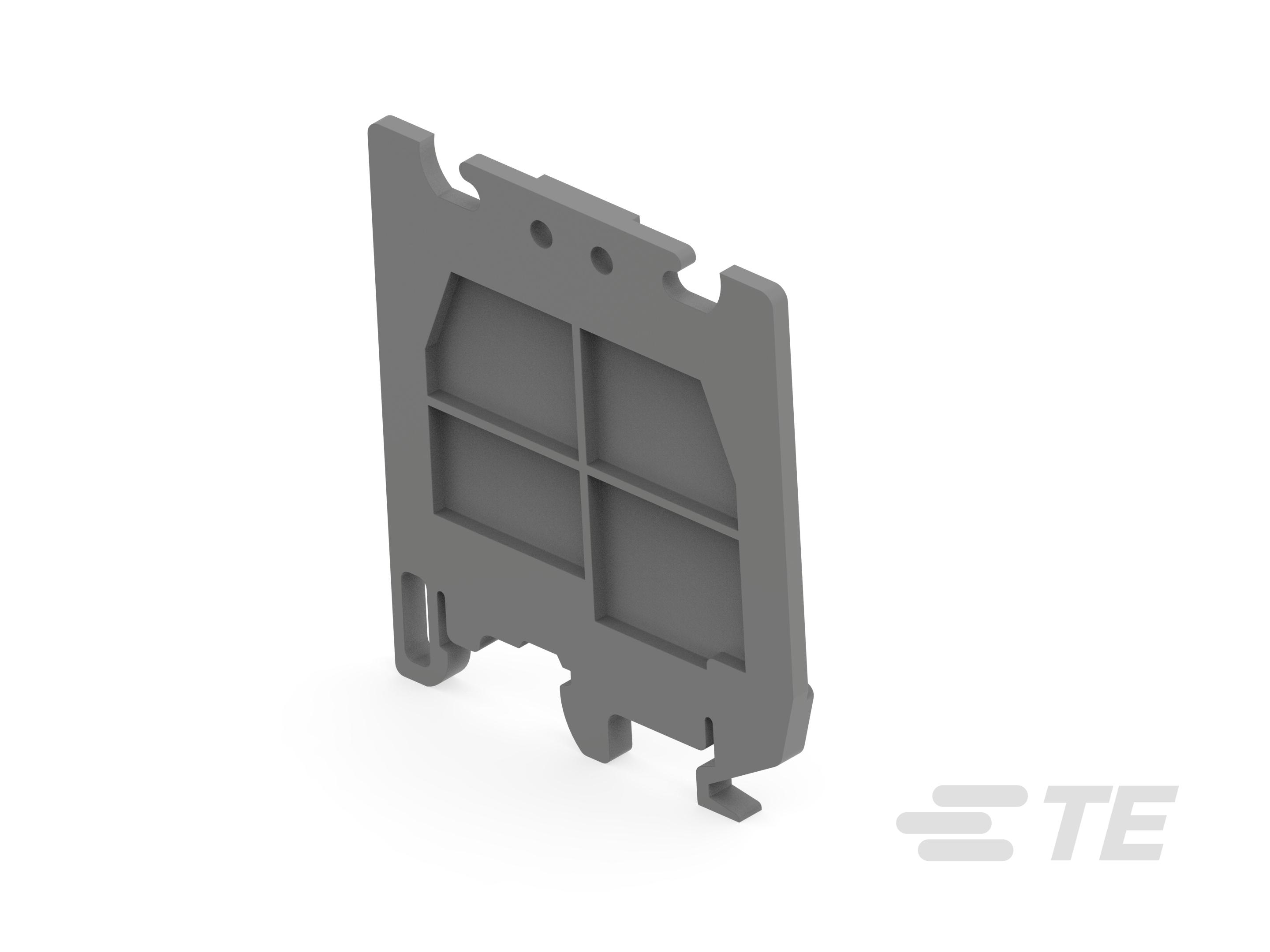

TE Connectivity, 1SNA114825R0500, Circuit Separator, SCFM6, Series: SNA, Screw Clamp Block, For Use With: TE Connectivityrminal Blocks and strips, Polyamide, Grey
Additional Description: TEC -1SNA114825R0500 SCFM6 Circuit Separators 011482505
Catalog Description: - Possibility of mounting the protective cover CPM and the marker holder PEP, - Extends 5 mm 0.20 in on sides of the block and 11.5 mm 0.45 in on top, - Mounting on DIN1-G32 and DIN3-TH35 rail.
1SNA114825R0500 Application
For Screw Clamp Terminal Blocks1SNA114825R0500 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA114825R0500 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #12383Part Number #1SNA114825R0500UNSPSC39121425UPC00662019955711
Image provided may only be a representation of final product and may include optional equipment
