Part Number # 1SNA115120R1700
SKU # 1711299
1SNA115120R1700
ENTRELEC 1SNA115120R1700 Flexibility: snap onto symmetrical and asymmetrical rails
Part Number # 1SNA115120R1700
SKU # 1711299
ENTRELEC 1SNA115120R1700 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115120R1700 |
| SKU #: | 1711299 |
| Amperage Rating: | 57, 57 A |
| Dimensions: | 1.75 in L x 0.394 in W x 2.18 in H, 44.5 mm H x 10 mm W x 40.5 mm L |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 10, 10 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C |
| Terminal Size: | M10 |
| Terminal Type: | Feed-Through, Screw |
| Torque Rating: | 1.2 N-m, 1.2 to 1.4, 1.2 to 1.4 N-m |
| Type: | M10/10 |
| Wire Size: | 6, 6 AWG |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB, TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019955896 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115120R1700 Flexibility: snap onto symmetrical and asymmetrical rails
Brand: ENTRELEC
Part Number: 1SNA115120R1700

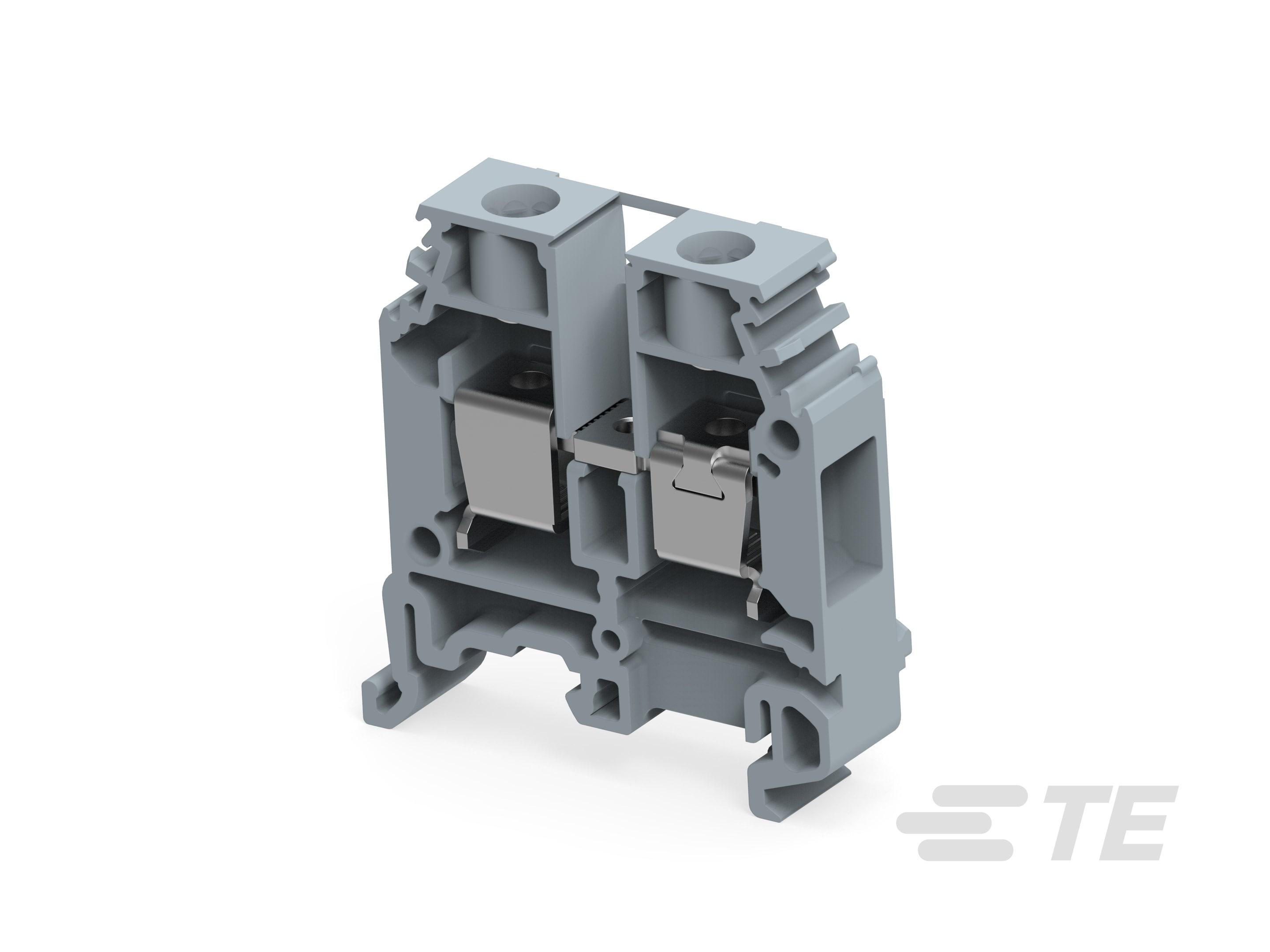

TE, 1SNA115120R1700, Terminal Block, M10/10, Series: SNA, 1000 V, 57 A, 2 Pole, 6 AWG Wire, 12 mm Wire Strip Length, 10 mm Spacing, 1.2 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 44.5 mm H x 10 mm W x 40.5 mm L Dimensions
Additional Description: TEC -1SNA115120R1700 M10/10 Screw Clamp Terminal Blocks - Feed-through - Grey 011512017
Catalog Description: - Flexibility: snap onto symmetrical and asymmetrical rails, - Many colors are available in addition to our generic grey to help you quickly identify any specific functions.
1SNA115120R1700 Application
For energy, explosive atmospheres, maritime, material handling and traction industries, control panels and standard distribution applications1SNA115120R1700 Item Features
- Self-locking clamp design prevents screw loosening
- Funneled side entry for up to two ferruled or non - ferruled solid or stranded wires
- High quality steel offers a very high over - torque resistance
- 600 VAC main circuit voltage
- Clamp is protected from harsh environments by a zinc bichromate surface treatment
- Use with applications ranging from standard distribution and control panels
- Compensates for the flattening of copper under contact pressure
- Mounting on DIN rail G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715
1SNA115120R1700 Standards
RoHS Compliant|CE Certified|CSA Certified|cUL Listed|EAC Certified|UL94 V-0 Flammability RatingSKU #1711299Part Number #1SNA115120R1700UNSPSC39121410UPC00662019955896
Image provided may only be a representation of final product and may include optional equipment
