ENTRELEC 1SNA115166R1100 Ease one potential distribution on 4 independent screw clamps
Part Number # 1SNA115166R1100
SKU # 2229103

1SNA115166R1100
ENTRELEC 1SNA115166R1100 Ease one potential distribution on 4 independent screw clamps
Part Number # 1SNA115166R1100
SKU # 2229103
ENTRELEC 1SNA115166R1100 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115166R1100 |
| SKU #: | 2229103 |
| Dimensions: | 65.5 mm H x 6 mm W x 52 mm L |
| Type: | M4/6.D1 |
| UNSPSC: | 39121410 |
| UPC: | 00662019956053 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA115166R1100 Ease one potential distribution on 4 independent screw clamps
Brand: ENTRELEC
Part Number: 1SNA115166R1100
TE Connectivity, 1SNA115166R1100, TE Connectivityrminal Block, M4/6.D1, Series: SNA, 800 V, 32 A, 4 Pole, 10 AWG Wire, 8.5 mm Wire Strip Length, 6 mm Spacing, 0.5 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 65.5 mm H x 6 mm W x 52 mm L Dimensions
Additional Description: TEC -1SNA115166R1100 M4/6.D1 Screw Clamp Terminal Blocks - Double deck - Grey 011516611
Catalog Description: - Ease one potential distribution on 4 independent screw clamps, - Flexibility: snap onto symmetrical and asymmetrical rails.
1SNA115166R1100 Application
For Signal1SNA115166R1100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115166R1100 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2229103Part Number #1SNA115166R1100UNSPSC39121410UPC00662019956053

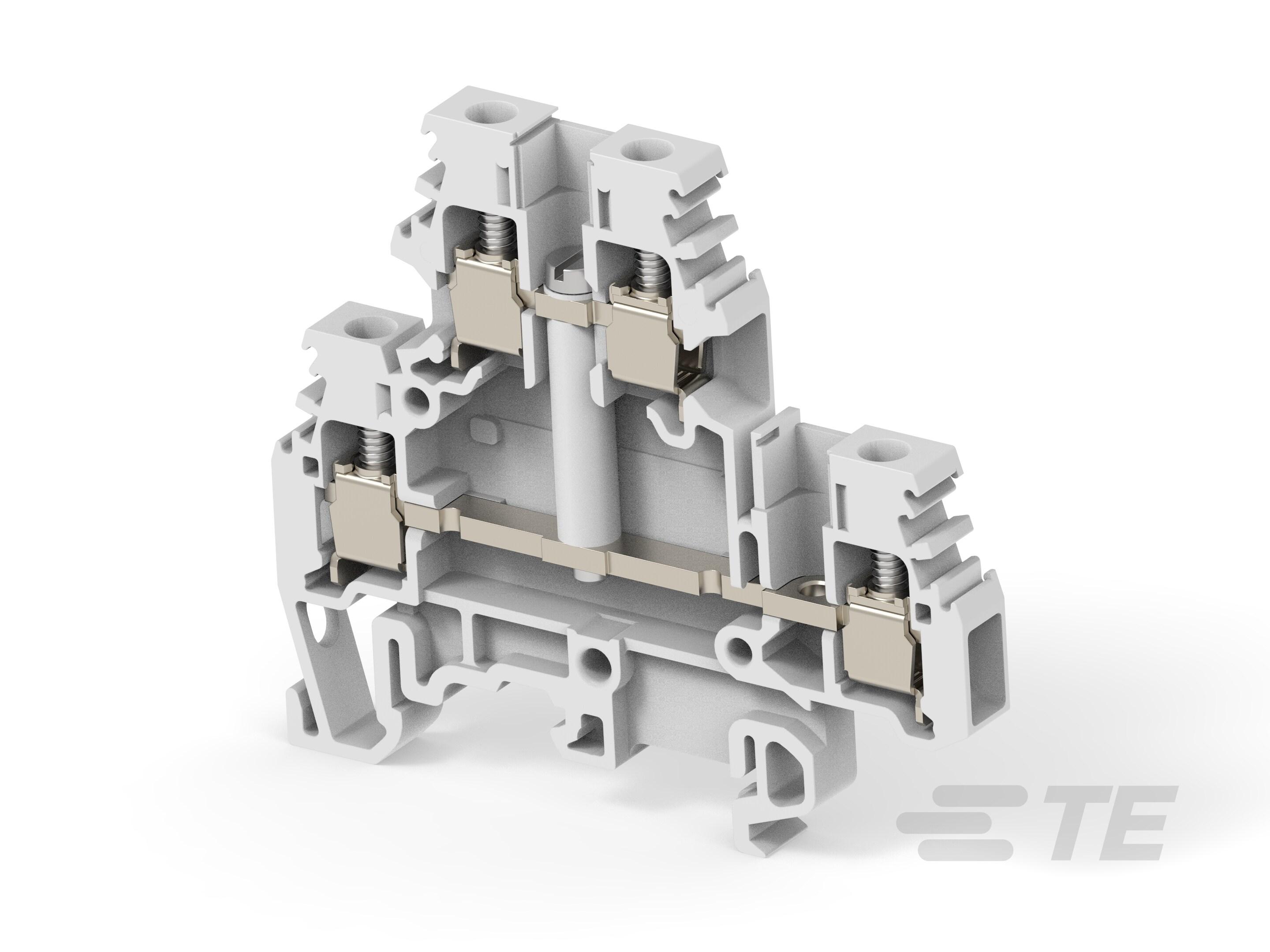

Image provided may only be a representation of final product and may include optional equipment
