ENTRELEC 1SNA115229R2000 Mainly dedicated to energy markets for security purposes on CT circuits
Part Number # 1SNA115229R2000
SKU # 2196370

1SNA115229R2000
ENTRELEC 1SNA115229R2000 Mainly dedicated to energy markets for security purposes on CT circuits
Part Number # 1SNA115229R2000
SKU # 2196370
ENTRELEC 1SNA115229R2000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115229R2000 |
| SKU #: | 2196370 |
| Dimensions: | 44.5 mm H x 6 mm W x 40.5 mm L |
| Type: | M4/6.SNTS |
| UNSPSC: | 39121410 |
| UPC: | 00662019956251 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA115229R2000 Mainly dedicated to energy markets for security purposes on CT circuits
Brand: ENTRELEC
Part Number: 1SNA115229R2000
TE Connectivity, 1SNA115229R2000, TE Connectivityrminal Blocks, M4/6.SNTS, Series: SNA, 500 V, 10 A, 2 Pole, 10 AWG Wire, 9.5 mm Wire Strip Length, Clamp TE Connectivityrminal, 6 mm Spacing, DIN Rail Mounting, Screw Connection, -55 to 110 | deg C, Polyamide, Gray/Orange, 44.5 mm H x 6 mm W x 40.5 mm L Dimensions
Additional Description: TEC -1SNA115229R2000 (N) M4/6.SNTS Spring Loaded Screw Clamp Terminal Blocks - Disconnect with blade - with test socket - Grey, Orange 011522920 Orange 011522920 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Mainly dedicated to energy markets for security purposes on CT circuits, - Security: specific shape in linking bar to lock the ferrule, Spring clamp can maintain contact pressure even if screw clamp is loose.
1SNA115229R2000 Application
For Signal1SNA115229R2000 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115229R2000 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2196370Part Number #1SNA115229R2000UNSPSC39121410UPC00662019956251

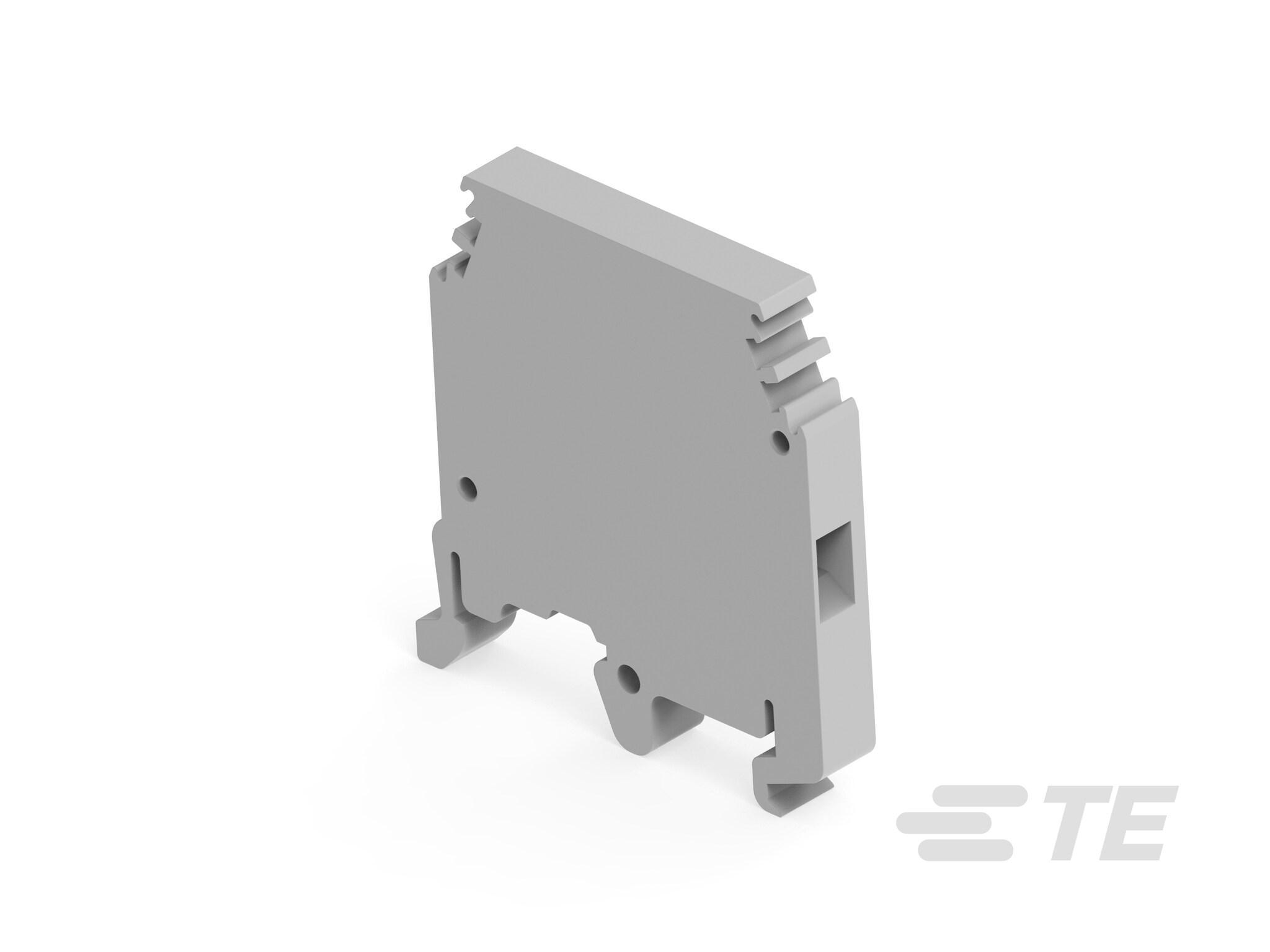

Image provided may only be a representation of final product and may include optional equipment
