Part Number # 1SNA115260R0300
SKU # 2221733
1SNA115260R0300
ENTRELEC 1SNA115260R0300 Particulary adapted when many test sockets are used: no circuit separators needed
Part Number # 1SNA115260R0300
SKU # 2221733
ENTRELEC 1SNA115260R0300 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115260R0300 |
| SKU #: | 2221733 |
| Dimensions: | 44.5 mm H x 8 mm W x 40.5 mm L |
| Type: | M6/8.1 |
| UNSPSC: | 39121410 |
| UPC: | 00662019956381 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115260R0300 Particulary adapted when many test sockets are used: no circuit separators needed
Brand: ENTRELEC
Part Number: 1SNA115260R0300
TE Connectivity, 1SNA115260R0300, TE Connectivityrminal Block, M6/8.1, Series: SNA, 1 kV, 41 A, 2 Pole, 8 AWG Wire, 12 mm Wire Strip Length, 8 mm Spacing, 0.8 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 44.5 mm H x 8 mm W x 40.5 mm L Dimensions
Additional Description: TEC -1SNA115260R0300 (N) M6/8.1 Screw Clamp Terminal Blocks - Feed-through - Grey 011526003 NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Particulary adapted when many test sockets are used: no circuit separators needed, - Use of jumper bars requires the user to cut out the partition, - Flexibility: snap onto symmetrical and asymmetrical rails.
1SNA115260R0300 Application
For Signal1SNA115260R0300 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115260R0300 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2221733Part Number #1SNA115260R0300UNSPSC39121410UPC00662019956381

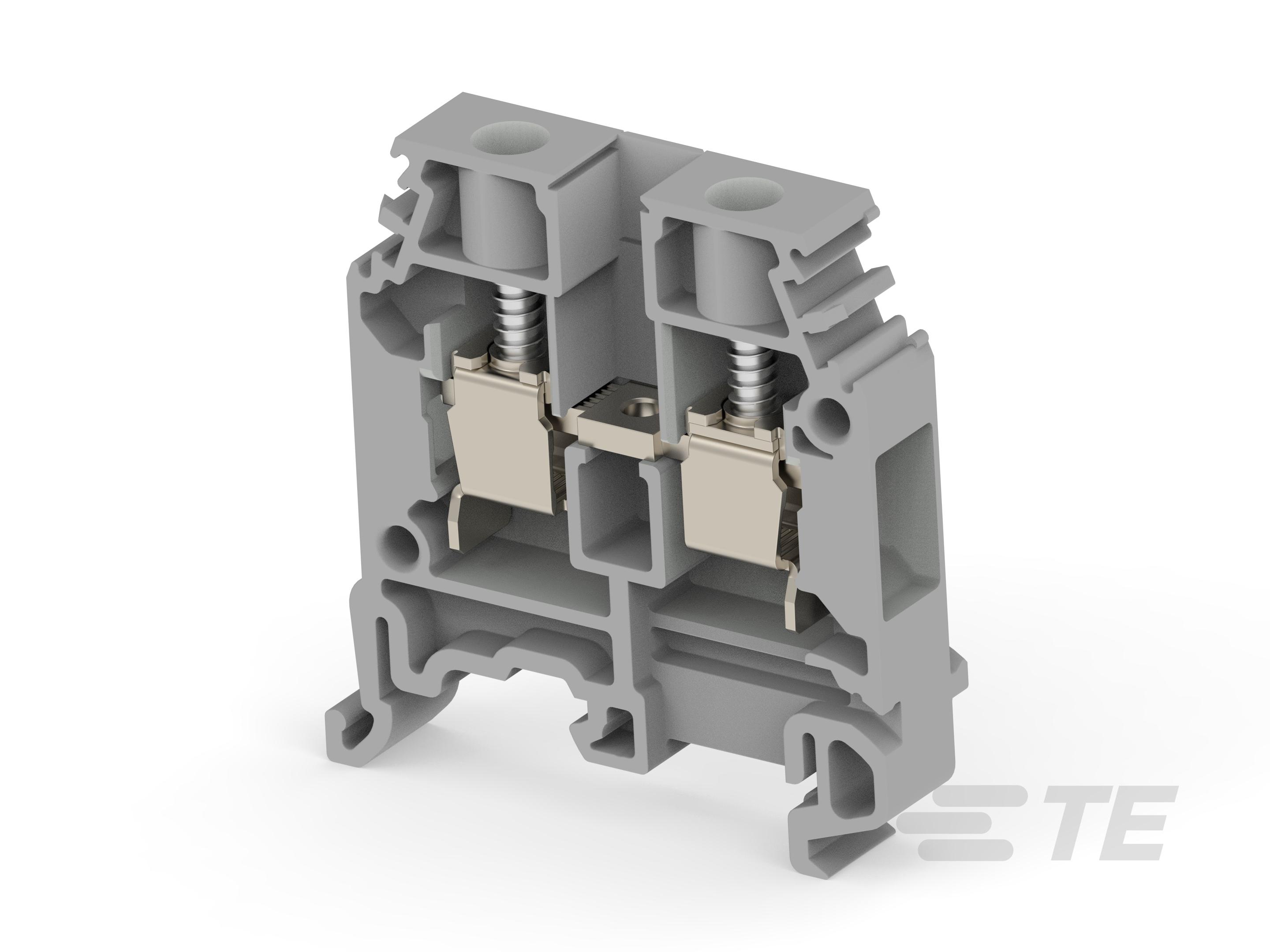

Image provided may only be a representation of final product and may include optional equipment
