Part Number # 1SNA115378R0500
SKU # 2330044
1SNA115378R0500

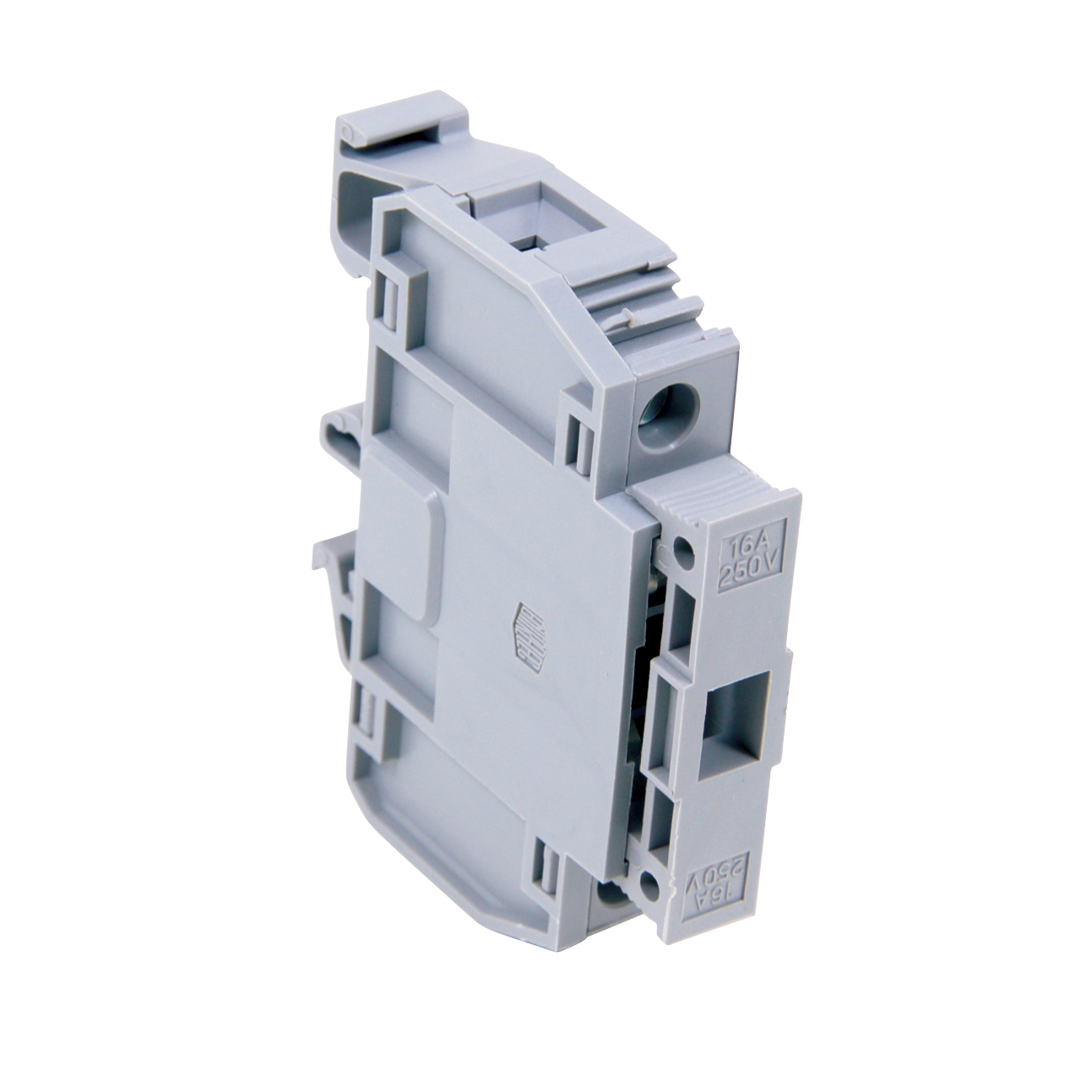

ENTRELEC 1SNA115378R0500 Modular Terminal Blocks
Part Number # 1SNA115378R0500
SKU # 2330044
ENTRELEC 1SNA115378R0500 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115378R0500 |
| SKU #: | 2330044 |
| Amperage Rating: | 10, 10 A |
| Dimensions: | 51.5 mm L x 16 mm W x 68 mm H, 68 mm H x 16 mm W x 51.5 mm D |
| Series: | SNA |
| Spacing: | 16, 16 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C |
| Terminal Size: | M10/16 |
| Torque Rating: | 0.8 to 1, 0.8 to 1 N-m |
| Type: | 1-Level, Fused |
| Wire Size: | 8, 8 AWG |
| Connection type: | Screw Clamp |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| UNSPSC: | 39121629 |
| UPC: | 00662019956817 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115378R0500 Modular Terminal Blocks
Brand: ENTRELEC
Part Number: 1SNA115378R0500
ABB Fuse Terminal Block, 1-Level, Series: SNA, 750 VAC, 10 A, 8 AWG Wire, 11 mm Wire Strip Length, M10/16 Terminal, 16 mm Spacing, 0.8 to 1 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 51.5 mm L x 16 mm W x 68 mm H Dimensions
Additional Description: TEC -1SNA115378R0500 M10/16.SFL Screw Clamp Terminal Blocks - For 6.3 x 32 fuses - Grey 011537805
Catalog Description: Modular Terminal Blocks
1SNA115378R0500 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
SKU #2330044Part Number #1SNA115378R0500UNSPSC39121629UPC00662019956817
Image provided may only be a representation of final product and may include optional equipment
