1SNA115468R2000

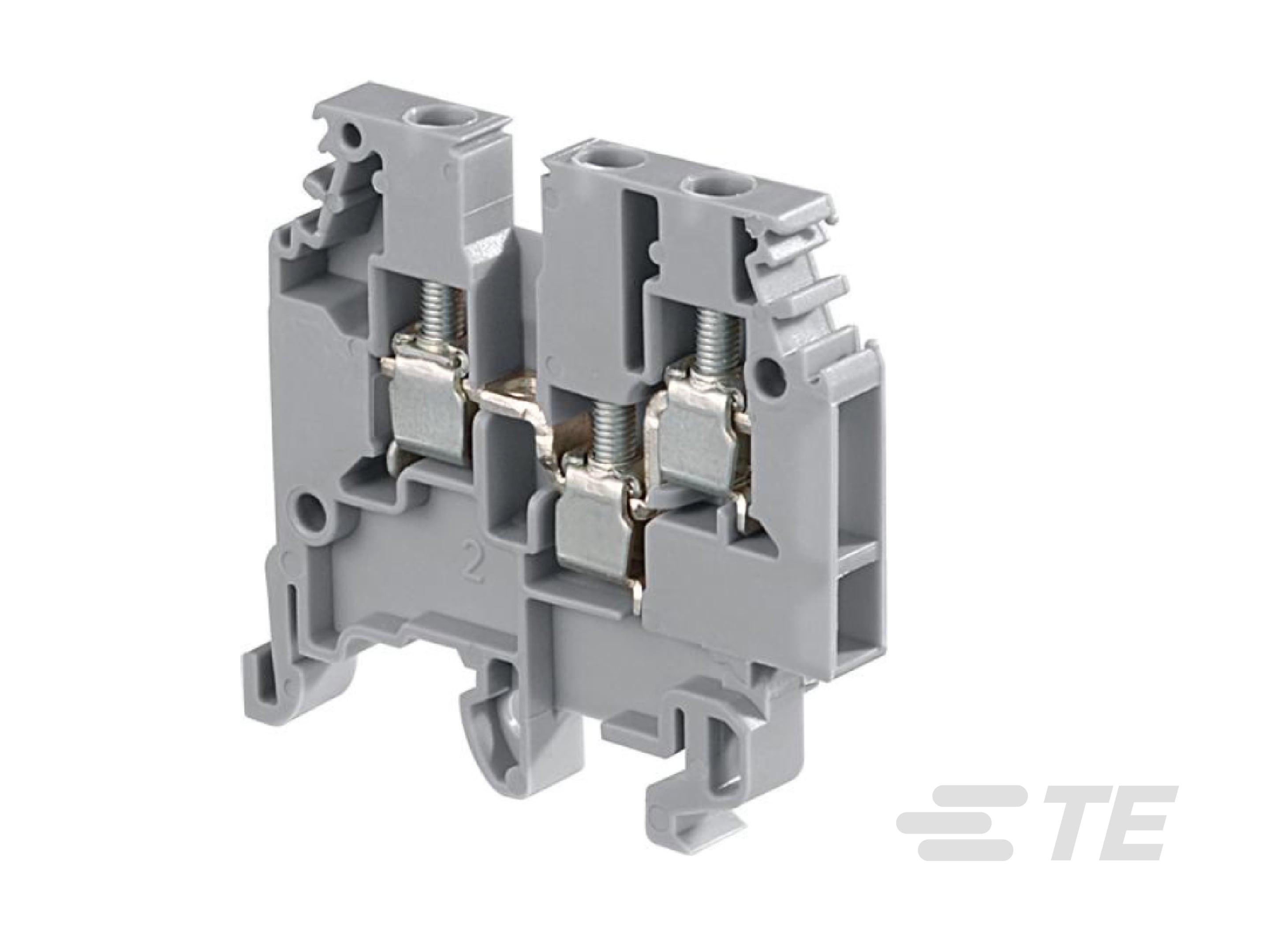

ENTRELEC 1SNA115468R2000 Ease one potential distribution on 3 independent screw clamps
Part Number # 1SNA115468R2000
SKU # 2241912
ENTRELEC 1SNA115468R2000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115468R2000 |
| SKU #: | 2241912 |
| Amperage Rating: | 32 A |
| Dimensions: | 51.5 mm H x 6 mm W x 40.5 mm L |
| Number of Poles: | 3 |
| Series: | SNA |
| Spacing: | 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Screw |
| Torque Rating: | 0.5 N-m |
| Type: | M4/6.3A |
| Wire Size: | 10 AWG |
| Color: | Gray |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019957043 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115468R2000 Ease one potential distribution on 3 independent screw clamps
Brand: ENTRELEC
Part Number: 1SNA115468R2000
TE, 1SNA115468R2000, Terminal Block, M4/6.3A, Series: SNA, 800 V, 32 A, 3 Pole, 10 AWG Wire, 9.5 mm Wire Strip Length, 6 mm Spacing, 0.5 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 51.5 mm H x 6 mm W x 40.5 mm L Dimensions
Additional Description: TEC -1SNA115468R2000 M4/6.3A Screw Clamp Terminal Blocks - Feed-through - Grey 011546820
Catalog Description: - Ease one potential distribution on 3 independent screw clamps, - Flexibility: snap onto symmetrical and asymmetrical rails.
1SNA115468R2000 Application
For Signal1SNA115468R2000 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115468R2000 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2241912Part Number #1SNA115468R2000UNSPSC39121410UPC00662019957043
