1SNA115498R1700

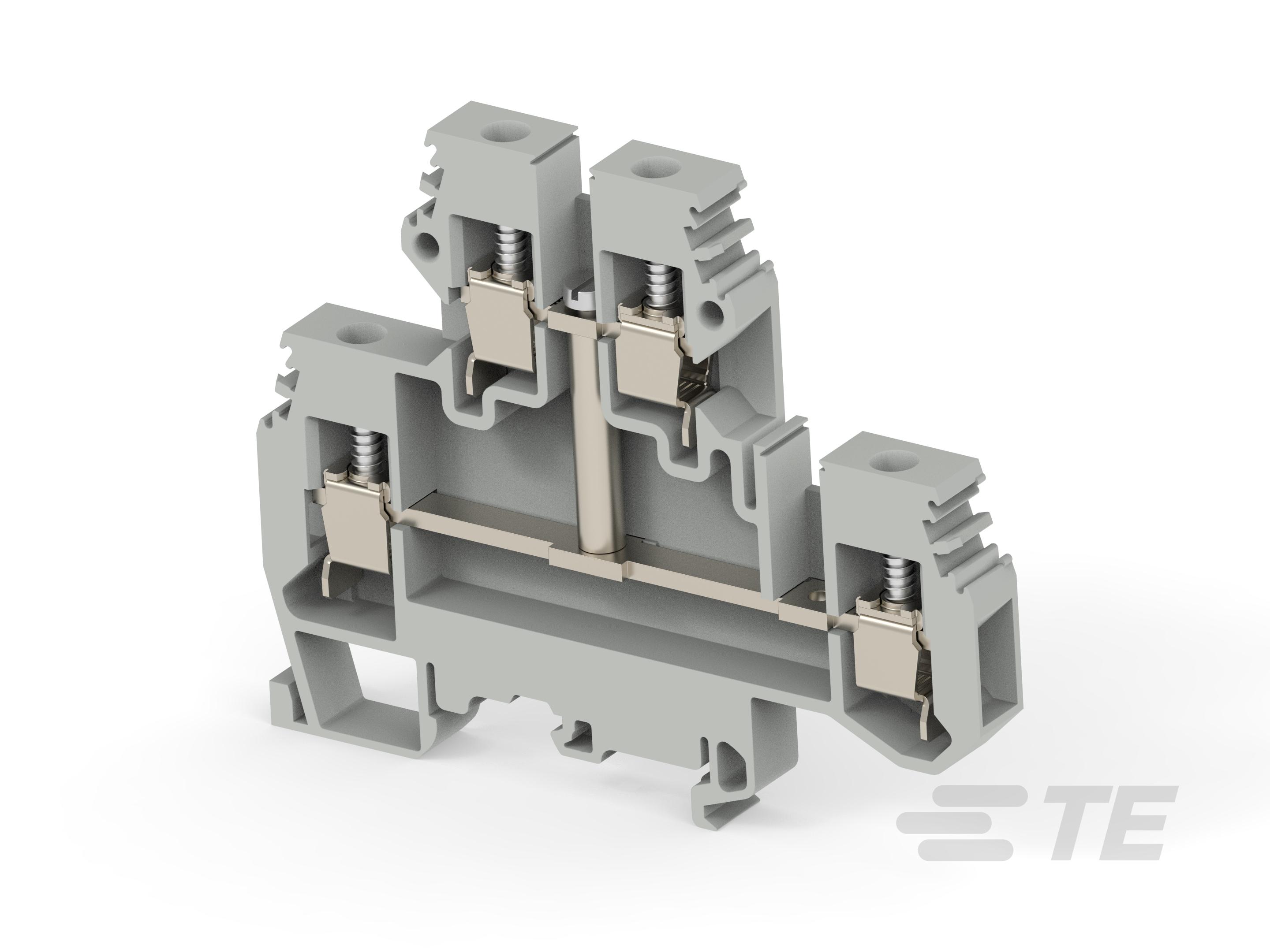

ENTRELEC 1SNA115498R1700 Ease one potential distribution on 4 independent screw clamps
Part Number # 1SNA115498R1700
SKU # 1711410
ENTRELEC 1SNA115498R1700 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115498R1700 |
| SKU #: | 1711410 |
| Amperage Rating: | 41 A |
| Dimensions: | 88 mm H x 8 mm W x 66 mm L |
| Number of Poles: | 4 |
| Series: | SNA |
| Spacing: | 8 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Screw |
| Torque Rating: | 0.8 N-m |
| Type: | M6/8.D1 |
| Wire Size: | 8 AWG |
| Color: | Gray |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019957111 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115498R1700 Ease one potential distribution on 4 independent screw clamps
Brand: ENTRELEC
Part Number: 1SNA115498R1700
TE, 1SNA115498R1700, Terminal Block, M6/8.D1, Series: SNA, 800 V, 41 A, 4 Pole, 8 AWG Wire, 12 mm Wire Strip Length, 8 mm Spacing, 0.8 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 88 mm H x 8 mm W x 66 mm L Dimensions
Additional Description: TEC -1SNA115498R1700 M6/8.D1 Screw Clamp Terminal Blocks - Double deck - Grey 011549817
Catalog Description: - Ease one potential distribution on 4 independent screw clamps, - Flexibility: snap onto symmetrical and asymmetrical rails.
1SNA115498R1700 Application
For Signal1SNA115498R1700 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115498R1700 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #1711410Part Number #1SNA115498R1700UNSPSC39121410UPC00662019957111
