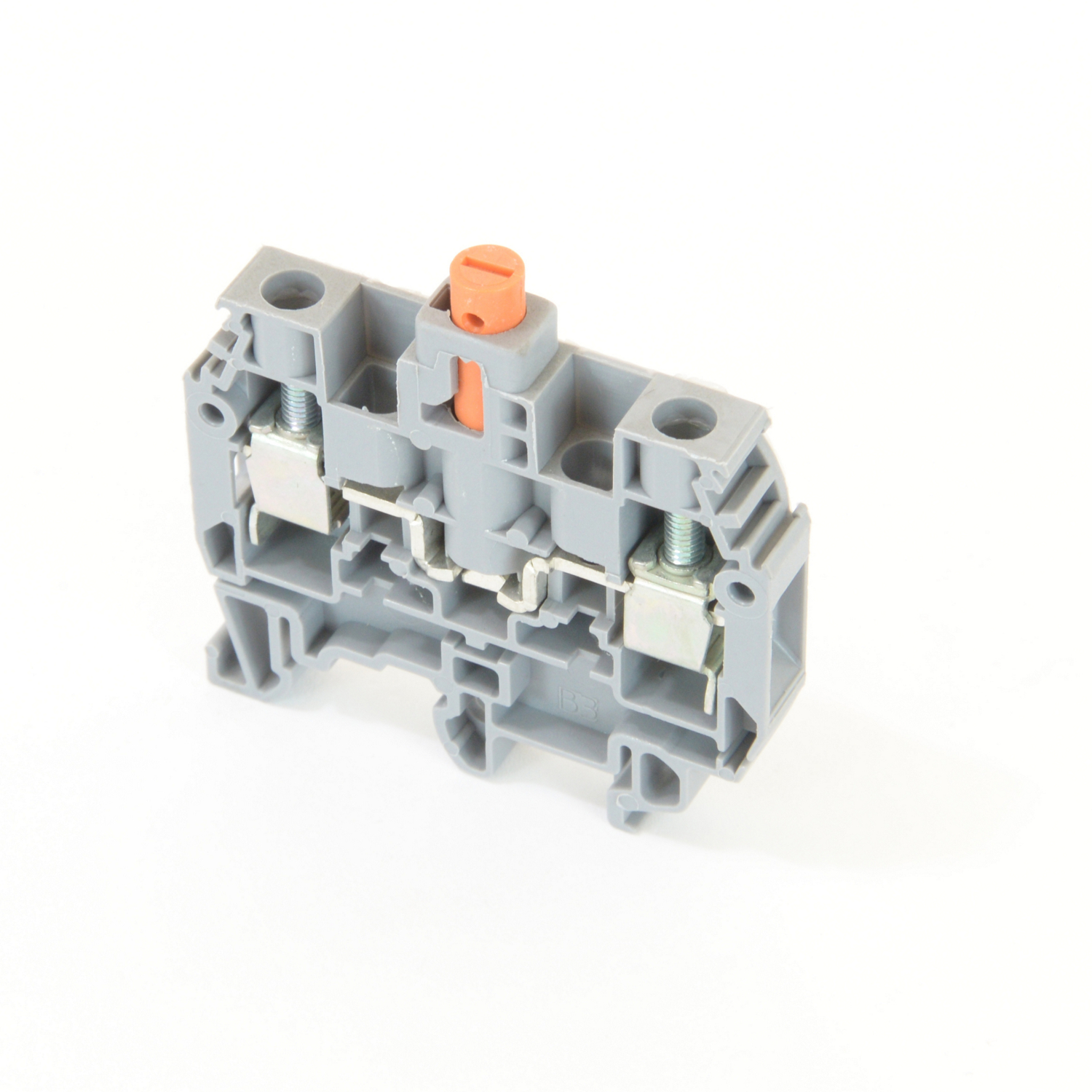

ENTRELEC 1SNA115499R1000 Modular Terminal Blocks
Part Number # 1SNA115499R1000
SKU # 2132733

1SNA115499R1000
ENTRELEC 1SNA115499R1000 Modular Terminal Blocks
Part Number # 1SNA115499R1000
SKU # 2132733
ENTRELEC 1SNA115499R1000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115499R1000 |
| SKU #: | 2132733 |
| Dimensions: | 55.5 mm H x 8 mm W x 45 mm D |
| UNSPSC: | 39121410 |
| UPC: | 00804325226721 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA115499R1000 Modular Terminal Blocks
Brand: ENTRELEC
Part Number: 1SNA115499R1000
TE, 1SNA115499R1000, Terminal Block, Low Voltage, 500 V, 15 A, 8 AWG Wire, 8 mm Spacing, 0.8 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Grey/Orange, 55.5 mm H x 8 mm W x 45 mm D Dimensions
Additional Description: TEC -1SNA115499R1000 (N) M6/8.STP2 Screw Clamp Terminal Blocks - Disconnect with push-turn knob - Grey, Orange NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Modular Terminal Blocks
1SNA115499R1000 Application
For Disconnect application1SNA115499R1000 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115499R1000 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2132733Part Number #1SNA115499R1000UNSPSC39121410UPC00804325226721
Image provided may only be a representation of final product and may include optional equipment
