1SNA115541R1100

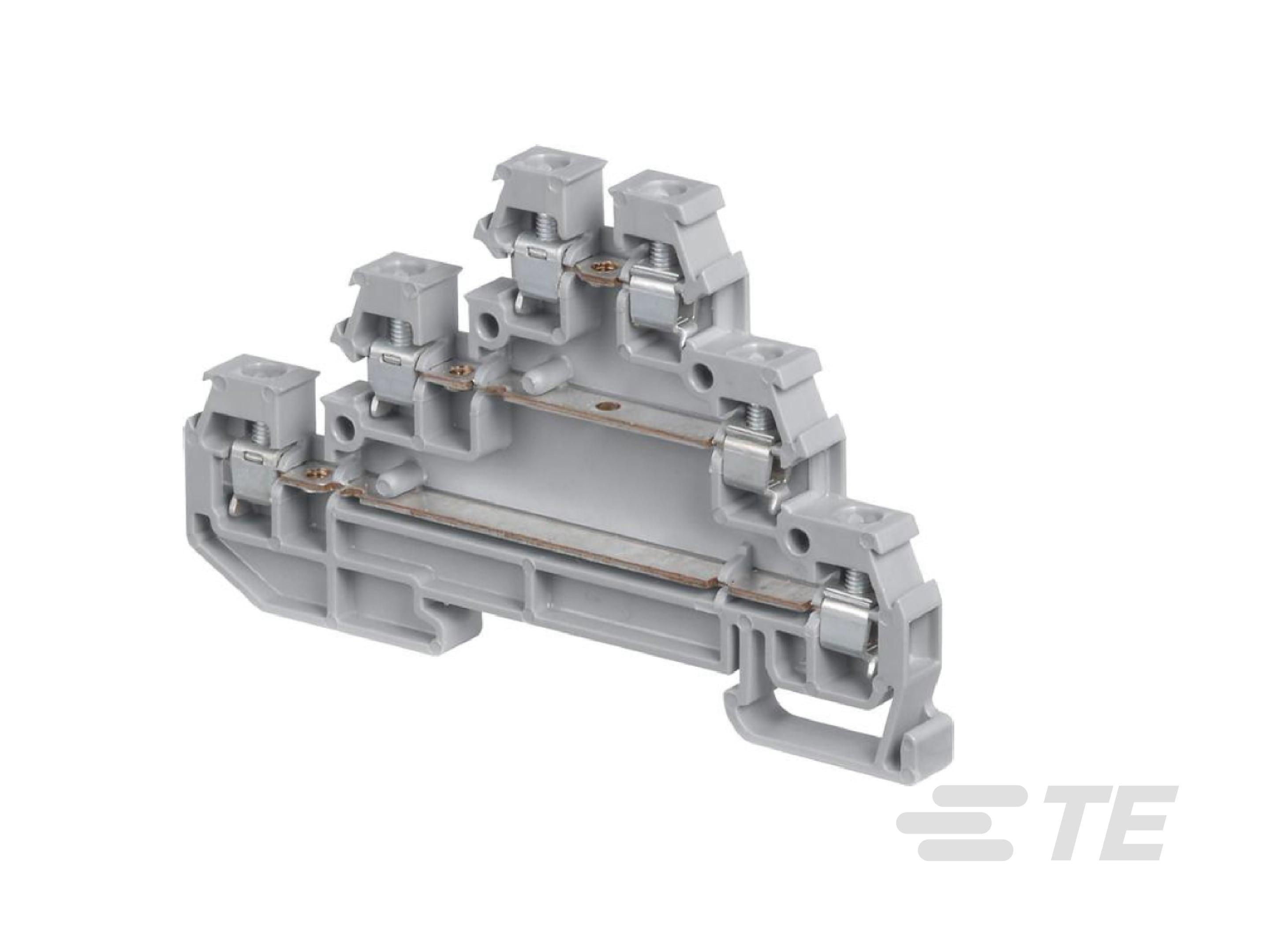

ENTRELEC 1SNA115541R1100 Save space with triple deck terminal blocks: 3 independent circuits connected in just 6 mm 0.236 in spacing
Part Number # 1SNA115541R1100
SKU # 12400
ENTRELEC 1SNA115541R1100 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115541R1100 |
| SKU #: | 12400 |
| Amperage Rating: | 22, 22 A |
| Diameter - Thread Size: | 3/8-16 |
| Dimensions: | 43.5 mm L x 6 mm W x 81 mm H, 81 mm H x 6 mm W x 43.5 mm L |
| Finish: | Plain |
| Head Type: | Hex |
| Measurement System: | Imperial |
| Number of Poles: | 6 |
| Series: | 00080, SNA |
| Spacing: | 6, 6 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C |
| Terminal Size: | D2.5/6.D, D2.5/6.DA |
| Terminal Type: | Screw |
| Torque Rating: | 0.4 N-m, 0.4 to 0.6 N-m |
| Type: | 3-Level, 3-Level Feed-Through, D2.5/6.DA, Full Rolled Thread |
| Wire Size: | 12 AWG, 22 to 14, 22 to 14 AWG |
| Color: | Gray |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Medium Carbon Alloy Steel, Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019957265 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115541R1100 Save space with triple deck terminal blocks: 3 independent circuits connected in just 6 mm 0.236 in spacing
Brand: ENTRELEC
Part Number: 1SNA115541R1100
TE, 1SNA115541R1100, Terminal Block, D2.5/6.DA, Series: SNA, 380 V, 22 A, 6 Pole, 12 AWG Wire, 6 mm Wire Strip Length, 6 mm Spacing, 0.4 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 81 mm H x 6 mm W x 43.5 mm L Dimensions
Additional Description: TEC -1SNA115541R1100 D2.5/6.DA Screw Clamp Terminal Blocks - Triple deck - Grey 011554111 1SNA115541R1100
Catalog Description: - Save space with triple deck terminal blocks: 3 independent circuits connected in just 6 mm 0.236 in spacing, - Adapted for 3 wires sensor/actuator.
1SNA115541R1100 Application
For Signal1SNA115541R1100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115541R1100 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #12400Part Number #1SNA115541R1100UNSPSC39121410UPC00662019957265
