Part Number # 1SNA115542R1200
SKU # 1378202

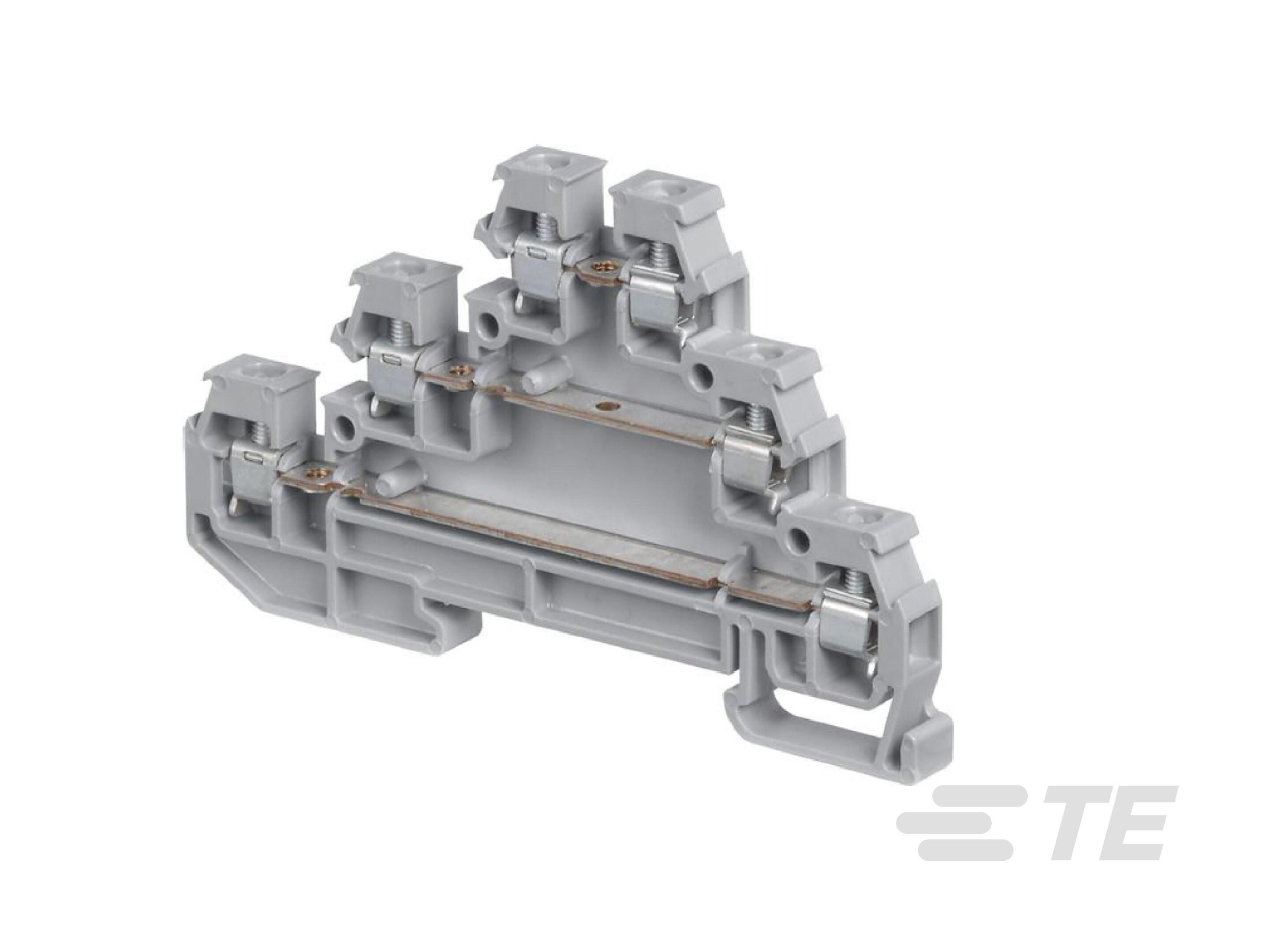

Image provided may only be a representation of
final product and may include optional equipment
1SNA115542R1200
ENTRELEC 1SNA115542R1200 Save space with triple deck terminal blocks: adapted for 3 wires sensor/actuator in just 6 mm 0.236 in spacing.
Part Number # 1SNA115542R1200
SKU # 1378202
ENTRELEC 1SNA115542R1200 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115542R1200 |
| SKU #: | 1378202 |
| Series: | D2.5/6.D |
| Spacing: | 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Screw |
| Type: | Multi-Position |
| Wire Size: | 12 AWG, 4 mm |
| Connection type: | Screw Clamp |
| Country of origin: | PL |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019957272 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115542R1200 Save space with triple deck terminal blocks: adapted for 3 wires sensor/actuator in just 6 mm 0.236 in spacing.
Brand: ENTRELEC
Part Number: 1SNA115542R1200
Gray three level sensor terminal blocks without ground connection 26 Amps UL rated with a screw clamp connection that accepts 20-12 AWG wire range
Additional Description: TEC -1SNA115542R1200 D2.5/6.D Screw Clamp Terminal Blocks - Sensors / Actuators - Grey 011554212
Catalog Description: Save space with triple deck terminal blocks: adapted for 3 wires sensor/actuator in just 6 mm 0.236 in spacing.
1SNA115542R1200 Application
For Sensor application1SNA115542R1200 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115542R1200 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #1378202Part Number #1SNA115542R1200UNSPSC39121410UPC00662019957272
