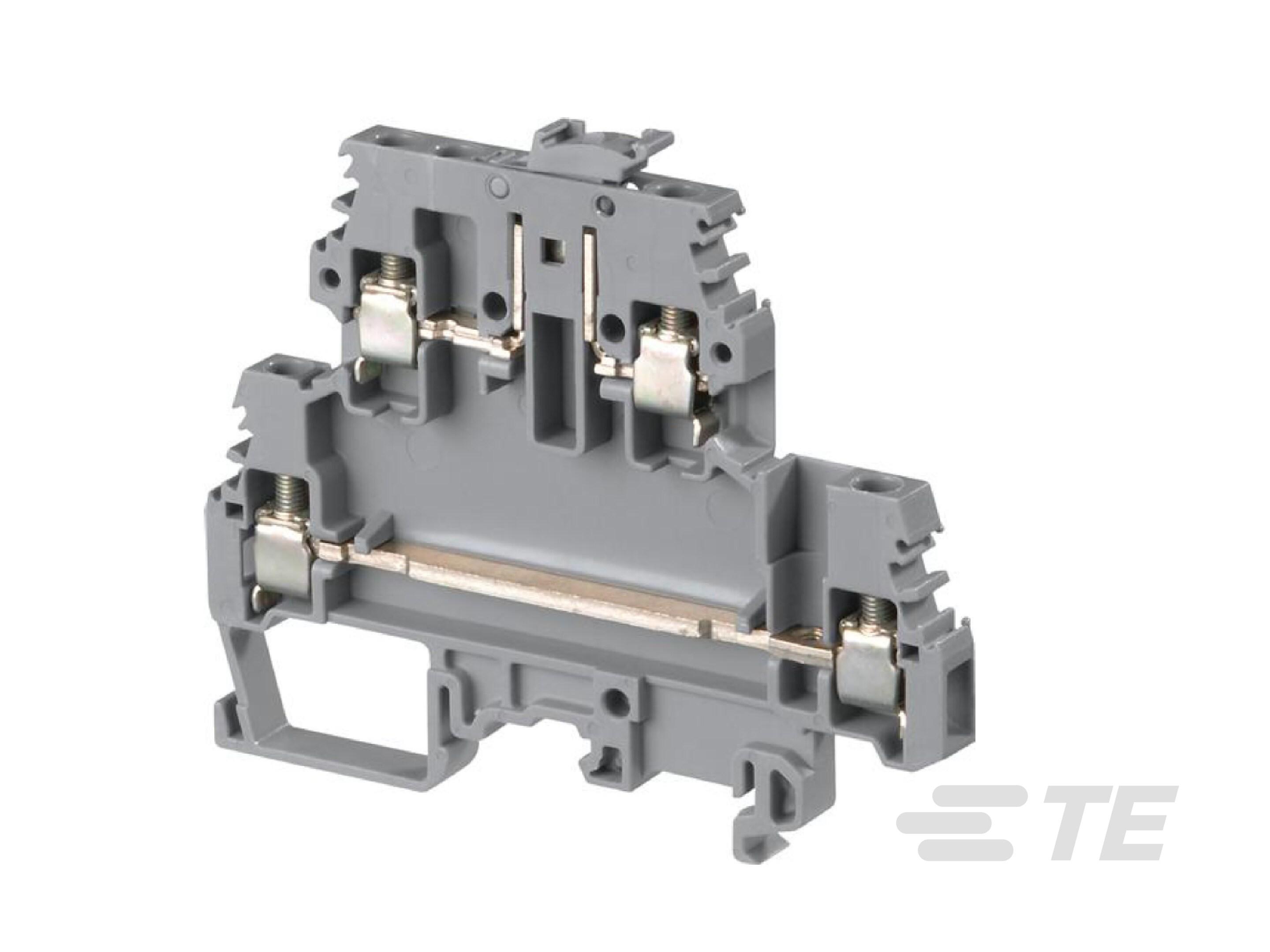

ENTRELEC 1SNA115561R1500 Save space with double deck terminal blocks: 1 disconnect circuit on top + 1 independent feed-through circuit on bottom in just 6 mm 0.236 in spacing
Part Number # 1SNA115561R1500
SKU # 2241973

1SNA115561R1500
ENTRELEC 1SNA115561R1500 Save space with double deck terminal blocks: 1 disconnect circuit on top + 1 independent feed-through circuit on bottom in just 6 mm 0.236 in spacing
Part Number # 1SNA115561R1500
SKU # 2241973
ENTRELEC 1SNA115561R1500 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115561R1500 |
| SKU #: | 2241973 |
| Dimensions: | 94.5 mm H x 6 mm W x 96 mm L |
| Type: | M4/6.D2.SNBT |
| UNSPSC: | 39121410 |
| UPC: | 00662019023274 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA115561R1500 Save space with double deck terminal blocks: 1 disconnect circuit on top + 1 independent feed-through circuit on bottom in just 6 mm 0.236 in spacing
Brand: ENTRELEC
Part Number: 1SNA115561R1500
TE Connectivity, 1SNA115561R1500, TE Connectivityrminal Block, M4/6.D2.SNBT, Series: SNA, 400 V, 10 A, 4 Pole, 12 AWG Wire, 9.5 mm Wire Strip Length, 6 mm Spacing, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 94.5 mm H x 6 mm W x 96 mm L Dimensions
Additional Description: TEC -1SNA115561R1500 M4/6.D2.SNBT Screw Clamp Terminal Blocks - Disconnect with blade - with test socket - Grey 011556115 011556115
Catalog Description: - Save space with double deck terminal blocks: 1 disconnect circuit on top + 1 independent feed-through circuit on bottom in just 6 mm 0.236 in spacing, - Ease your disconnect operations with the disconnect blade operated by hand or with a screwdriver, - Same profile as M4/6.D2 feed-through terminal block for aligned marking and identical end section use.
1SNA115561R1500 Application
For Signal1SNA115561R1500 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115561R1500 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2241973Part Number #1SNA115561R1500UNSPSC39121410UPC00662019023274
Image provided may only be a representation of final product and may include optional equipment
