Part Number # 1SNA115646R2200
SKU # 337451
Image Disclaimers Message

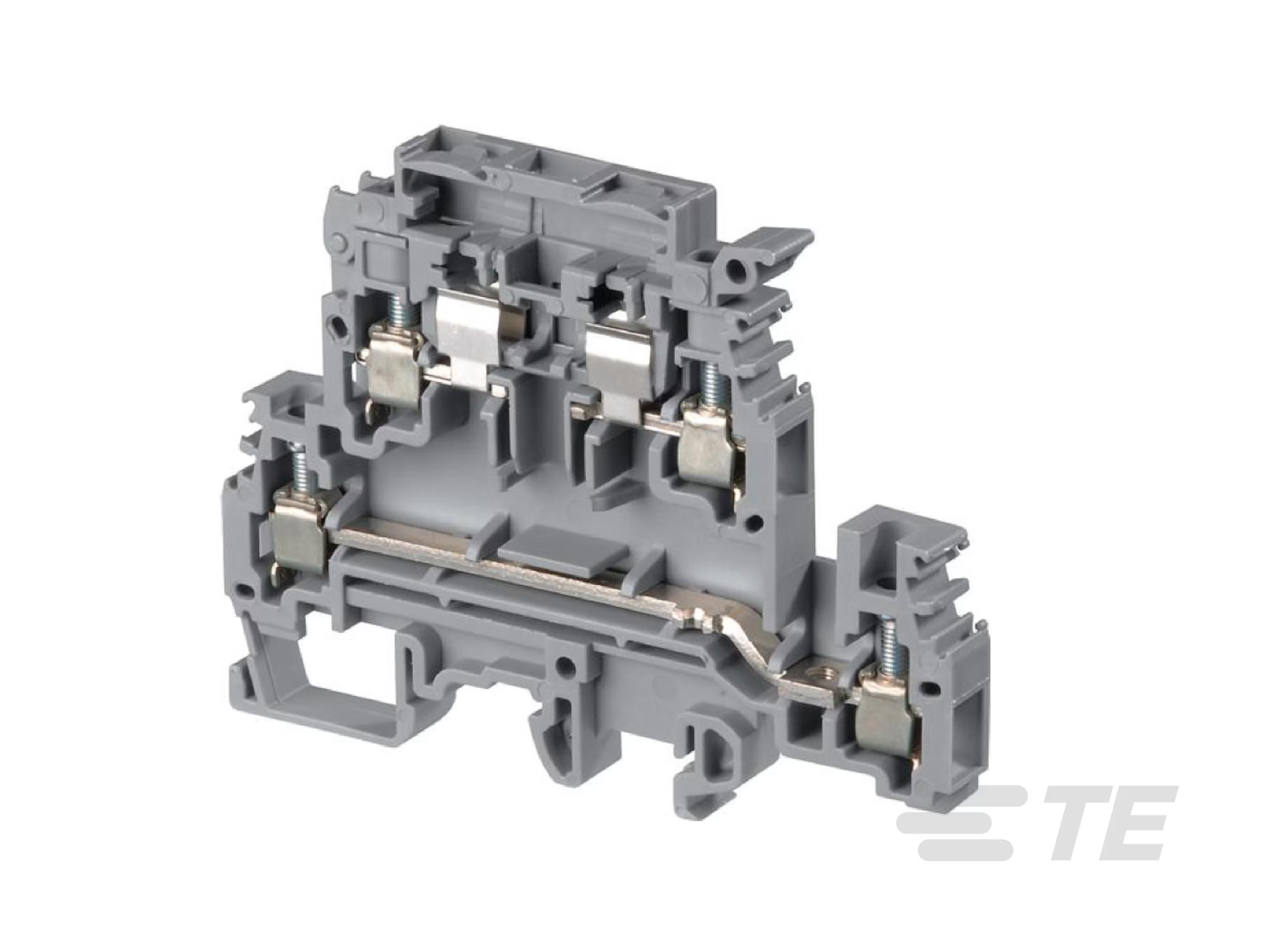

1SNA115646R2200
ENTRELEC 1SNA115646R2200 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks)
Part Number # 1SNA115646R2200
SKU # 337451
ENTRELEC 1SNA115646R2200 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115646R2200 |
| SKU #: | 337451 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 85.7 mm H x 8 mm W x 59 mm D |
| Spacing: | 8 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | Fused |
| Color: | Grey |
| Connection type: | Screw Clamp |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| UNSPSC: | 39121629 |
| UPC: | 00662019957432 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115646R2200 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks)
Brand: ENTRELEC
Part Number: 1SNA115646R2200
Beige, fuse holder terminal blocks, double-deck for 5 x 20 and 5 x 25 mm fuses with 8 mm spacing, 26 Amp rated UL current that accepts 12 AWG UL wire
Additional Description: TEC -1SNA115646R2200 M4/8.D2.SFL Screw Clamp Terminal Blocks - For 5 x 20 and 5 x 25 fuses - with blown fuse indicator - Grey 011564622 fuses - with blown fuse indicator - Grey
Catalog Description: - Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks), - Save space with double deck terminal blocks: 2 independent circuits 1 fuse on upper deck + 1 feed-through, - Ease the test with built-in test sockets, - Quickly identify the defective circuit thanks to the blown fuse indicator.
1SNA115646R2200 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
SKU #337451Part Number #1SNA115646R2200UNSPSC39121629UPC00662019957432
