Part Number # 1SNA115657R2500
SKU # 12403
1SNA115657R2500
ENTRELEC 1SNA115657R2500 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks).
Part Number # 1SNA115657R2500
SKU # 12403
ENTRELEC 1SNA115657R2500 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115657R2500 |
| SKU #: | 12403 |
| Amperage Rating: | 6.3, 6.3 A |
| Dimensions: | 41 mm L x 8 mm W x 56.5 mm H, 56.5 mm H x 8 mm W x 41 mm D |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 4, 4 mm, 8, 8 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C |
| Terminal Size: | M4/8 |
| Terminal Type: | Screw/Clamp |
| Torque Rating: | 0.5 to 0.8, 0.5 to 0.8 N-m |
| Type: | 1-Level, Fused, M4/8.SF |
| Wire Size: | 12, 12 AWG |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121629 |
| UPC: | 00662019023304 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115657R2500 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks).
Brand: ENTRELEC
Part Number: 1SNA115657R2500
ABB Fuse Terminal Block, 1-Level, Series: SNA, 630 VAC, 6.3 A, 12 AWG Wire, 9.5 mm Wire Strip Length, M4/8 Terminal, 4 mm Spacing, 0.5 to 0.8 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 41 mm L x 8 mm W x 56.5 mm H Dimensions
Additional Description: TEC -1SNA115657R2500 M4/8.SF Screw Clamp Terminal Blocks - For 5 x 20 and 5 x 25 fuses - Grey 011565725
Catalog Description: Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks).
1SNA115657R2500 Application
For applications ranging from standard distribution and control panels, to specialized applications in key industries such as traction, energy, maritime, explosive atmospheres and material handling1SNA115657R2500 Item Features
- Self-locking clamp design prevents screw loosening
- Quick fuse installation and replacement
- Touch-safe IP20 protection
- High quality steel offers a very high over-torque resistance
- Compensates for the flattening of copper under contact pressure
- Clamp is protected from harsh environments by a zinc dichromate surface treatment
- Flexible 1x 0.5 to 4 sq-mm, rigid 1x 0.5 to 6 sq-mm connecting capacity main circuit
- G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715 DIN rail mounting
- 3 deg pollution
- 4 mm recommended screw driver
- For 5 x 20 and 5 x 25 fuses
- 4 sq-mm rated cross section
- A4 gauge type
- 630 V IEC, 600 VAC UL, 250 VAC CSA rated, 6.3 A IEC, 10 A CSA/UL rated
- 4 sq-mm solid rated IEC wire range, 22 to 12 AWG stranded rated UL, 12 AWG CSA wire range
1SNA115657R2500 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cUL Listed|CE Certified|EAC Certified|UL94 V-0 Flammability RatingSKU #12403Part Number #1SNA115657R2500UNSPSC39121629UPC00662019023304

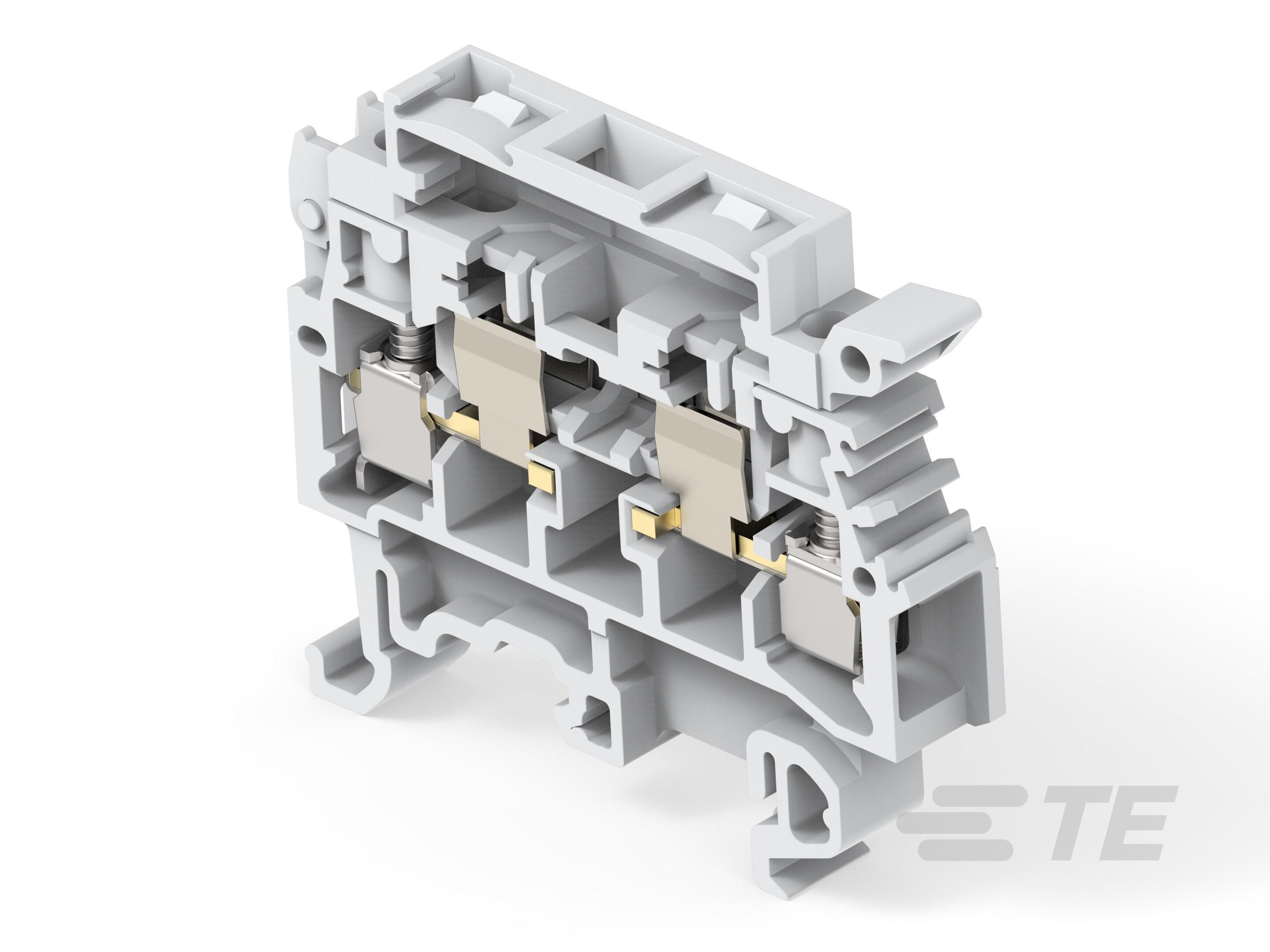

Image provided may only be a representation of final product and may include optional equipment
