Part Number # 1SNA115659R0700
SKU # 1446184
Image Disclaimers Message
1SNA115659R0700

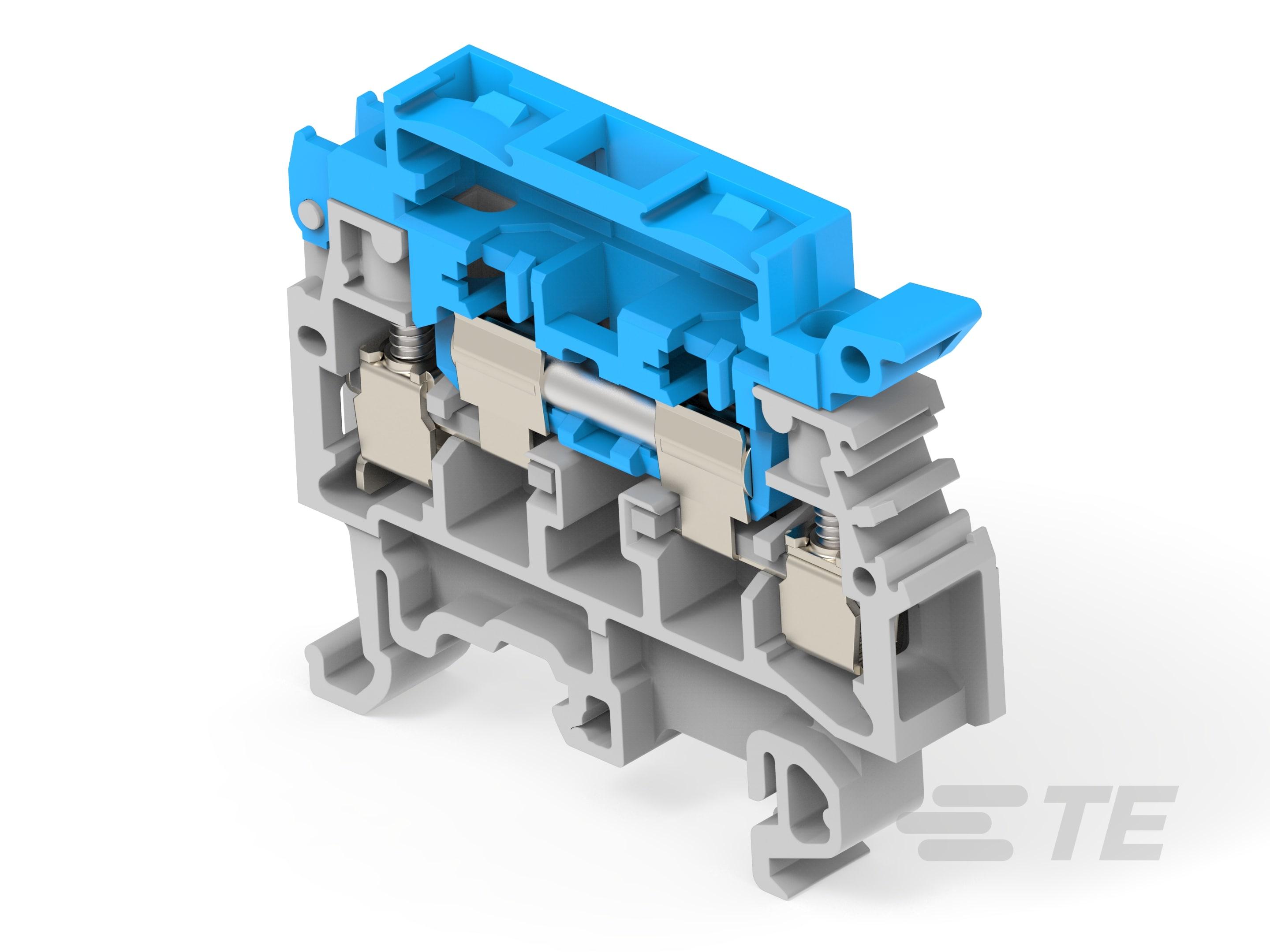

ENTRELEC 1SNA115659R0700 Simplify the disconnect operations for the disconnect terminal blocks installed next to fuse terminal blocks M4/8.SF...
Part Number # 1SNA115659R0700
SKU # 1446184
ENTRELEC 1SNA115659R0700 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115659R0700 |
| SKU #: | 1446184 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 56.5 mm H x 8 mm W x 41 mm L |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 8 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Screw |
| Torque Rating: | 0.5 N-m |
| Type: | M4/8.SN |
| Wire Size: | 12 AWG |
| Color: | Gray |
| Connection type: | Screw Clamp |
| Country of origin: | PL |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019957463 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115659R0700 Simplify the disconnect operations for the disconnect terminal blocks installed next to fuse terminal blocks M4/8.SF...
Brand: ENTRELEC
Part Number: 1SNA115659R0700
TE, 1SNA115659R0700, Terminal Block, M4/8.SN, Series: SNA, 630 V, 6.3 A, 2 Pole, 12 AWG Wire, 9.5 mm Wire Strip Length, 8 mm Spacing, 0.5 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 56.5 mm H x 8 mm W x 41 mm L Dimensions
Additional Description: TEC -1SNA115659R0700 (N) M4/8.SN Screw Clamp Terminal Blocks - Disconnect with lever - with test socket - Grey, Blue NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE 011565907 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Simplify the disconnect operations for the disconnect terminal blocks installed next to fuse terminal blocks M4/8.SF..., - With the same profile as M4/8.SF, the M4/8.SN disconnect lever is easily operated by hand and the wiring of the alternated disconnect and fuse circuits is easier, - Link bar for lever included in terminal block.
1SNA115659R0700 Application
For Signal1SNA115659R0700 Includes
Link bar1SNA115659R0700 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115659R0700 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #1446184Part Number #1SNA115659R0700UNSPSC39121410UPC00662019957463
