Part Number # 1SNA115662R2200
SKU # 2221934
Image Disclaimers Message
1SNA115662R2200

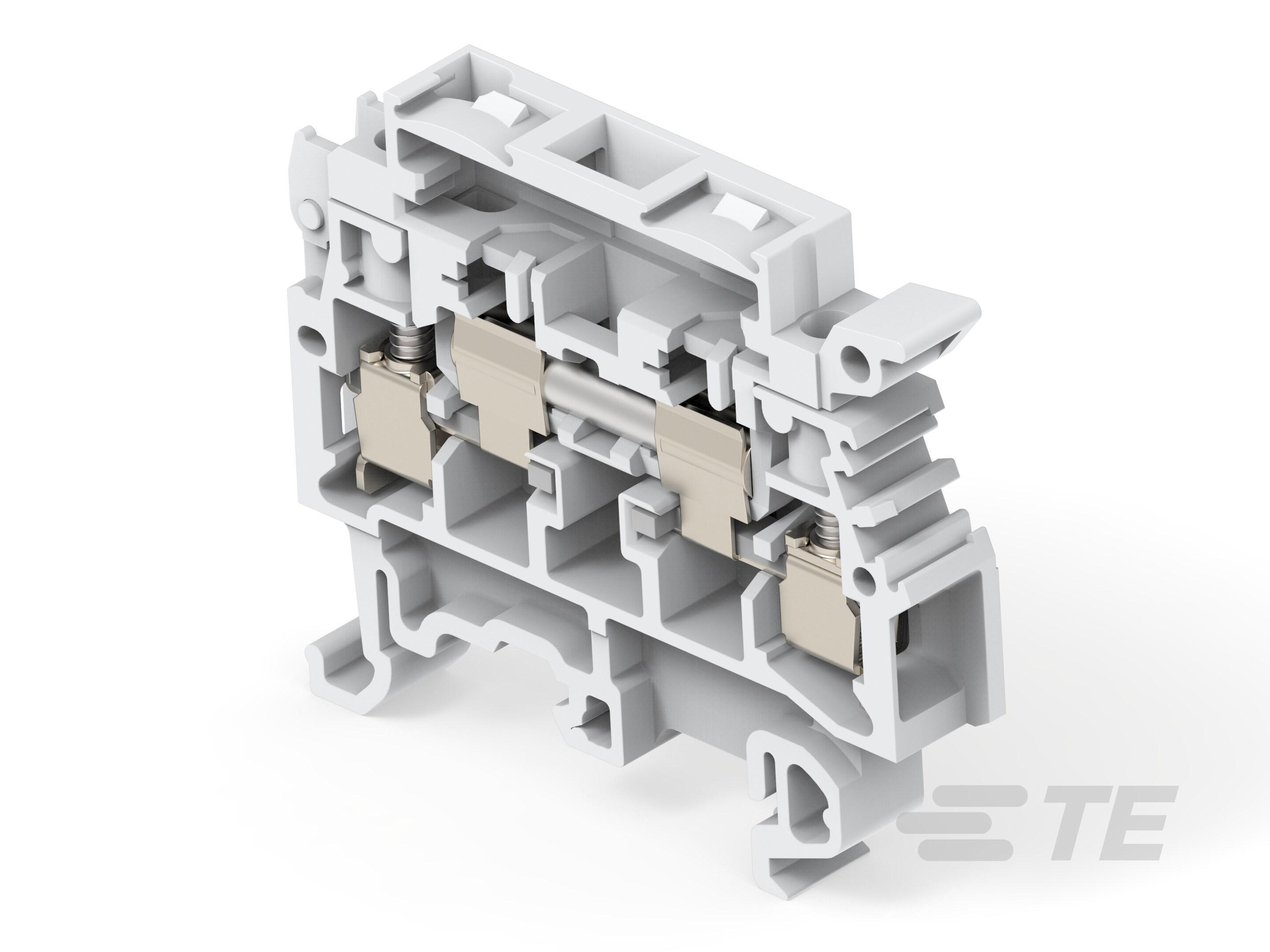

ENTRELEC 1SNA115662R2200 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks)
Part Number # 1SNA115662R2200
SKU # 2221934
ENTRELEC 1SNA115662R2200 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115662R2200 |
| SKU #: | 2221934 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 56.5 mm H x 8 mm W x 41 mm D |
| Number of Poles: | 2 |
| Spacing: | 8 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | Fused |
| Color: | Grey |
| Connection type: | Screw Clamp |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| UNSPSC: | 39121629 |
| UPC: | 00662019957494 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115662R2200 Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks)
Brand: ENTRELEC
Part Number: 1SNA115662R2200
Gray, fuse holder block with 8 mm spacing, 10 Amp rated UL current with screw clamp connection that accepts 22-12 AWG UL wire range
Additional Description: TEC -1SNA115662R2200 M4/8.SFT Screw Clamp Terminal Blocks - For 5 x 20 and 5 x 25 fuses - with test socket - Grey 011566222
Catalog Description: - Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks), - Ease the test with built-in test sockets.
1SNA115662R2200 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
SKU #2221934Part Number #1SNA115662R2200UNSPSC39121629UPC00662019957494
