ENTRELEC 1SNA115685R1200 Mainly dedicated to energy applications based on BS TS5018 standard
Part Number # 1SNA115685R1200
SKU # 2268228

1SNA115685R1200
ENTRELEC 1SNA115685R1200 Mainly dedicated to energy applications based on BS TS5018 standard
Part Number # 1SNA115685R1200
SKU # 2268228
ENTRELEC 1SNA115685R1200 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115685R1200 |
| SKU #: | 2268228 |
| Dimensions: | 50 mm H x 8 mm W x 48.5 mm L |
| Type: | M6/8.RS |
| UNSPSC: | 39121410 |
| UPC: | 00662019957579 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA115685R1200 Mainly dedicated to energy applications based on BS TS5018 standard
Brand: ENTRELEC
Part Number: 1SNA115685R1200
TE Connectivity, 1SNA115685R1200, TE Connectivityrminal Block, M6/8.RS, Series: SNA, 800 V, 41 A, 8 AWG Wire, 8 mm Spacing, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 50 mm H x 8 mm W x 48.5 mm L Dimensions
Additional Description: TEC -1SNA115685R1200 M6/8.RS Spring Loaded Screw Clamp Terminal Blocks - Feed-through - Grey 011568512 011568512
Catalog Description: - Mainly dedicated to energy applications based on BS TS5018 standard, - Security: specific shape in linking bar to lock the hook type ferrule, spring clamp can maintain contact pressure even if screw clamp is loose.
1SNA115685R1200 Application
For Signal1SNA115685R1200 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115685R1200 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2268228Part Number #1SNA115685R1200UNSPSC39121410UPC00662019957579

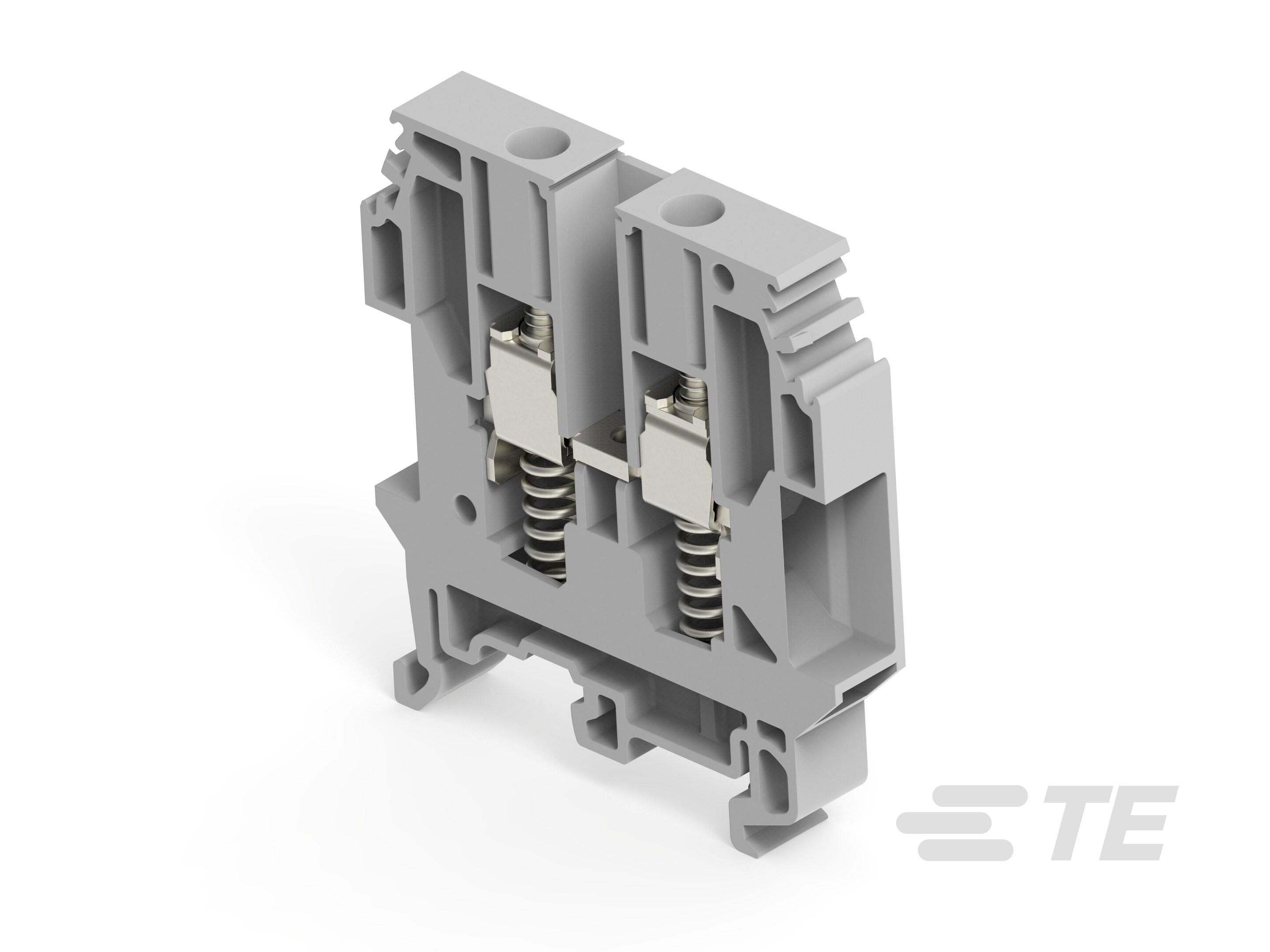

Image provided may only be a representation of final product and may include optional equipment
