Part Number # 1SNA115686R1300
SKU # 1618066
1SNA115686R1300

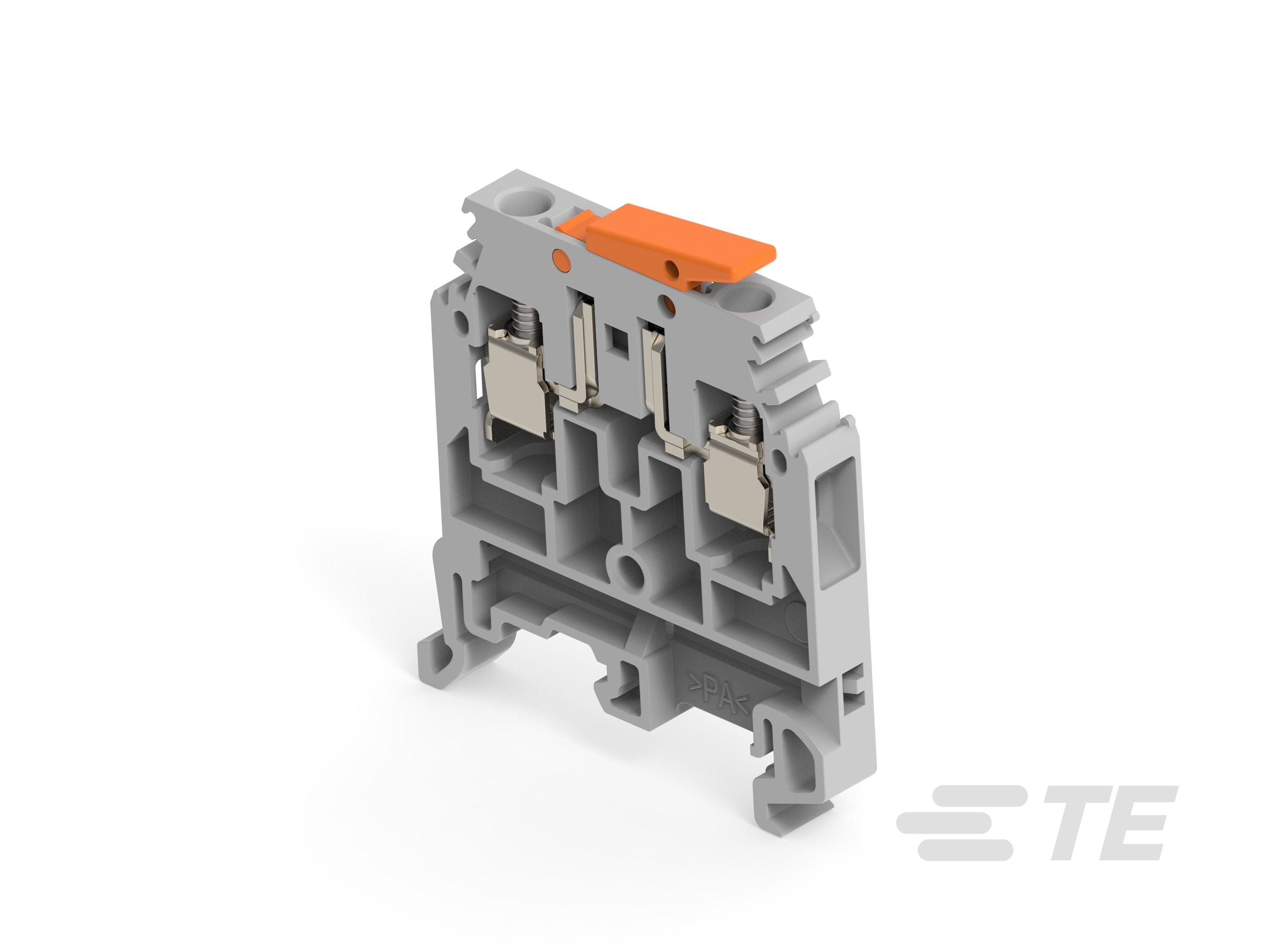

ENTRELEC 1SNA115686R1300 Ease your disconnect operations with the disconnect blade operated by hand or with a screwdriver
Part Number # 1SNA115686R1300
SKU # 1618066
ENTRELEC 1SNA115686R1300 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115686R1300 |
| SKU #: | 1618066 |
| Dimensions: | 44.5 mm H x 6 mm W x 51 mm L |
| Type: | M4/6.SNB |
| UNSPSC: | 39121410 |
| UPC: | 00804325159340 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115686R1300 Ease your disconnect operations with the disconnect blade operated by hand or with a screwdriver
Brand: ENTRELEC
Part Number: 1SNA115686R1300
TE Connectivity, 1SNA115686R1300, TE Connectivityrminal Block, M4/6.SNB, Series: SNA, 400 V, 20 A, 2 Pole, 10 AWG Wire, 9.5 mm Wire Strip Length, 6 mm Spacing, 0.5 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 44.5 mm H x 6 mm W x 51 mm L Dimensions
Additional Description: TEC -1SNA115686R1300 M4/6.SNB Screw Clamp Terminal Blocks - Disconnect with blade - Grey, Grey 011568613
Catalog Description: - Ease your disconnect operations with the disconnect blade operated by hand or with a screwdriver, - Same profile as M4/6 feed-through terminal block for aligned marking.
1SNA115686R1300 Application
For Signal1SNA115686R1300 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115686R1300 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #1618066Part Number #1SNA115686R1300UNSPSC39121410UPC00804325159340
Image provided may only be a representation of final product and may include optional equipment
