ENTRELEC 1SNA115692R1100 Modular Terminal Blocks
Part Number # 1SNA115692R1100
SKU # 2201270
ENTRELEC 1SNA115692R1100 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115692R1100 |
| SKU #: | 2201270 |
| UNSPSC: | 39121629 |
| UPC: | 00662019957609 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

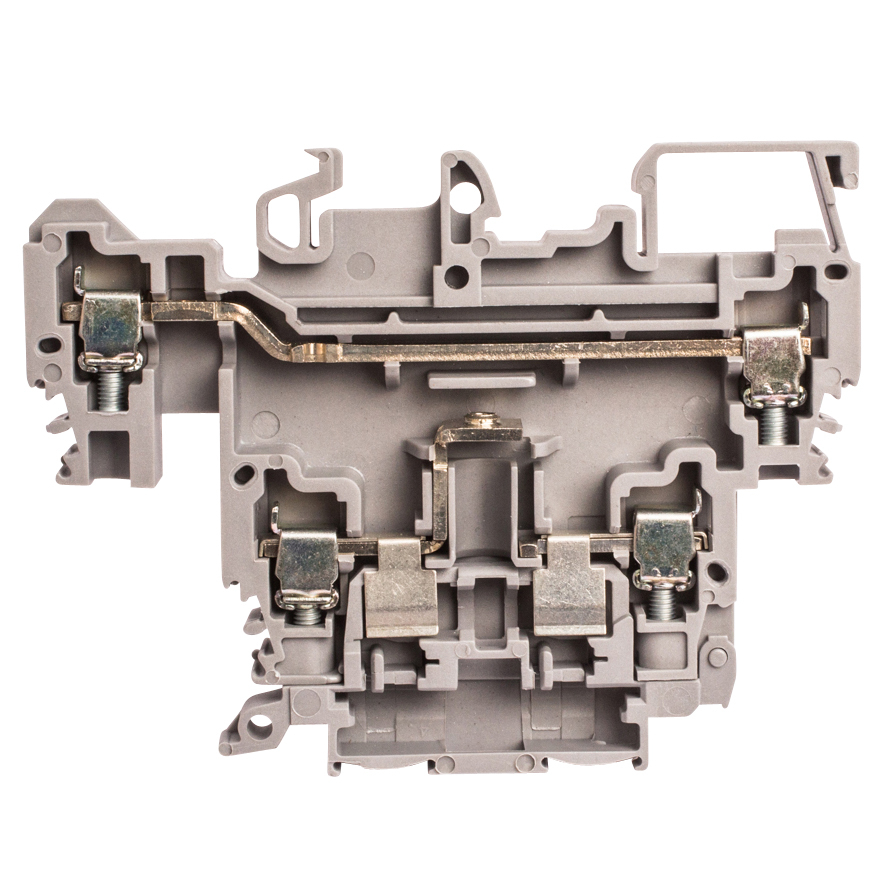

ENTRELEC 1SNA115692R1100 Modular Terminal Blocks
Brand: ENTRELEC
Part Number: 1SNA115692R1100
Gray fuse holder terminal blocks double-deck for 5 x 20 and 5 x 25 mm fuses, 20 Amps UL rated with a screw clamp connection that accepts 24-12 AWG wire range
Additional Description: TEC -1SNA115692R1100 (N) M4/8.D2.SFJ Screw Clamp Terminal Blocks - For 5 x 20 and 5 x 25 fuses - Grey NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Modular Terminal Blocks, Fuse, Screw Clamp Terminal Block, Product Spacing .314 in [8 mm], 4 Position, Screw Terminal, Signal, DIN Rail, 500 VAC
1SNA115692R1100 Application
For Fuse application1SNA115692R1100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115692R1100 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2201270Part Number #1SNA115692R1100UNSPSC39121629UPC00662019957609
Image provided may only be a representation of final product and may include optional equipment
