Part Number # 1SNA115699R2000
SKU # 2257871
Image Disclaimers Message
1SNA115699R2000

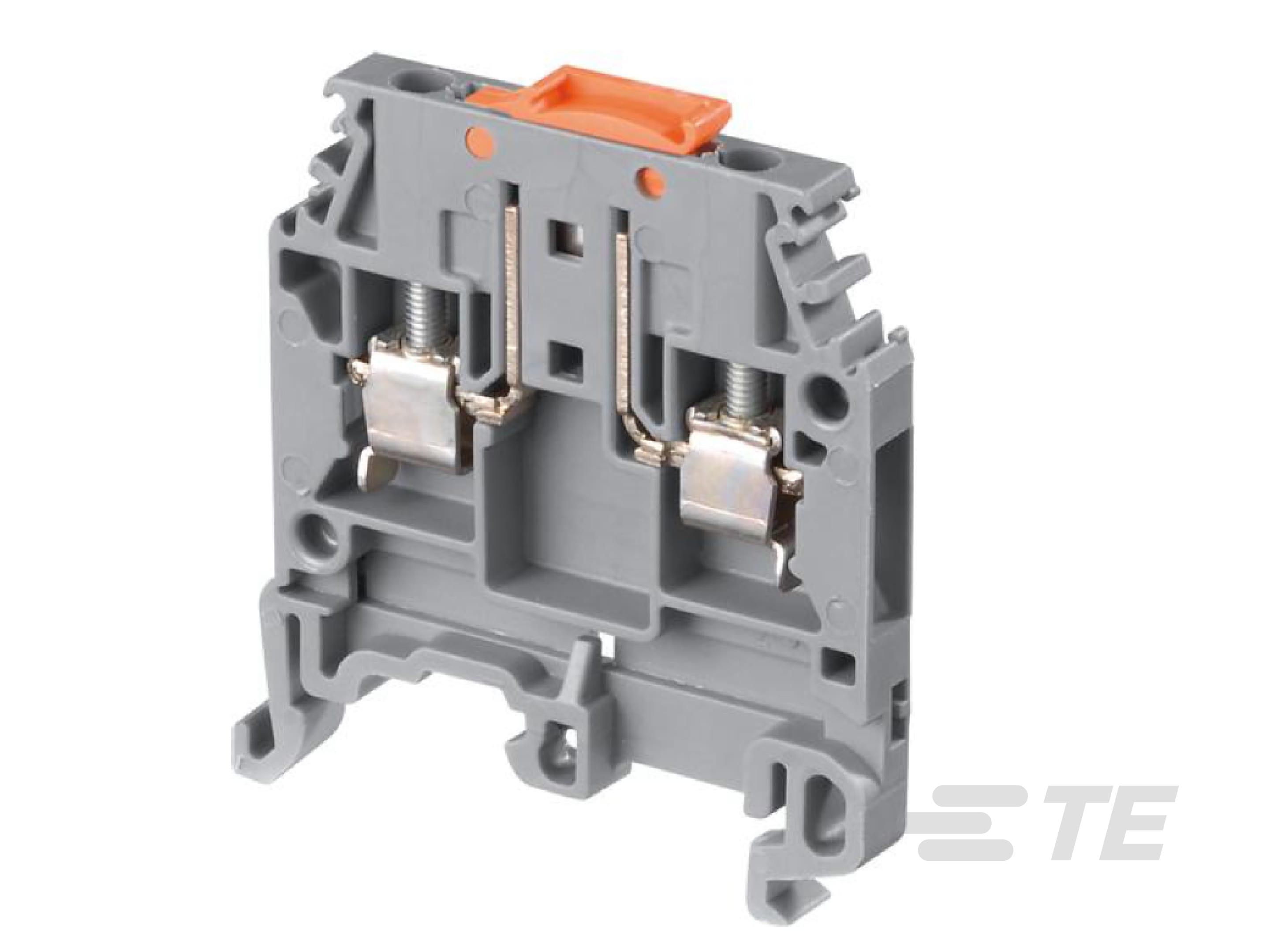

ENTRELEC 1SNA115699R2000 Ease your disconnect operations with the disconnect blade operated by hand or with a screwdriver
Part Number # 1SNA115699R2000
SKU # 2257871
ENTRELEC 1SNA115699R2000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115699R2000 |
| SKU #: | 2257871 |
| Amperage Rating: | 10 A |
| Dimensions: | 44.5 mm H x 5 mm W x 44.5 mm L |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 5 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Clamp |
| Torque Rating: | 0.4 N-m |
| Type: | MA2.5/5.SNB |
| Wire Size: | 12 AWG |
| Color: | Gray |
| Connection type: | Screw |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019094472 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115699R2000 Ease your disconnect operations with the disconnect blade operated by hand or with a screwdriver
Brand: ENTRELEC
Part Number: 1SNA115699R2000
TE, 1SNA115699R2000, Terminal Blocks, MA2.5/5.SNB, Series: SNA, 320 V, 10 A, 2 Pole, 12 AWG Wire, 10 mm Wire Strip Length, Clamp Terminal, 5 mm Spacing, 0.4 N-m Torque, DIN Rail Mounting, Screw Connection, -55 to 110?| deg C, Polyamide, Gray, 44.5 mm H x 5 mm W x 44.5 mm L Dimensions
Additional Description: TEC -1SNA115699R2000 (N) MA2.5/5.SNB Screw Clamp Terminal Blocks - Disconnect with blade - Grey, Orange NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE 011569920 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Ease your disconnect operations with the disconnect blade operated by hand or with a screwdriver, - Same profile as MA2.5/5 feed-through terminal block for aligned marking and identical end section use.
1SNA115699R2000 Application
For Signal1SNA115699R2000 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115699R2000 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2257871Part Number #1SNA115699R2000UNSPSC39121410UPC00662019094472
