Part Number # 1SNA116540R2500
SKU # 2189252
1SNA116540R2500

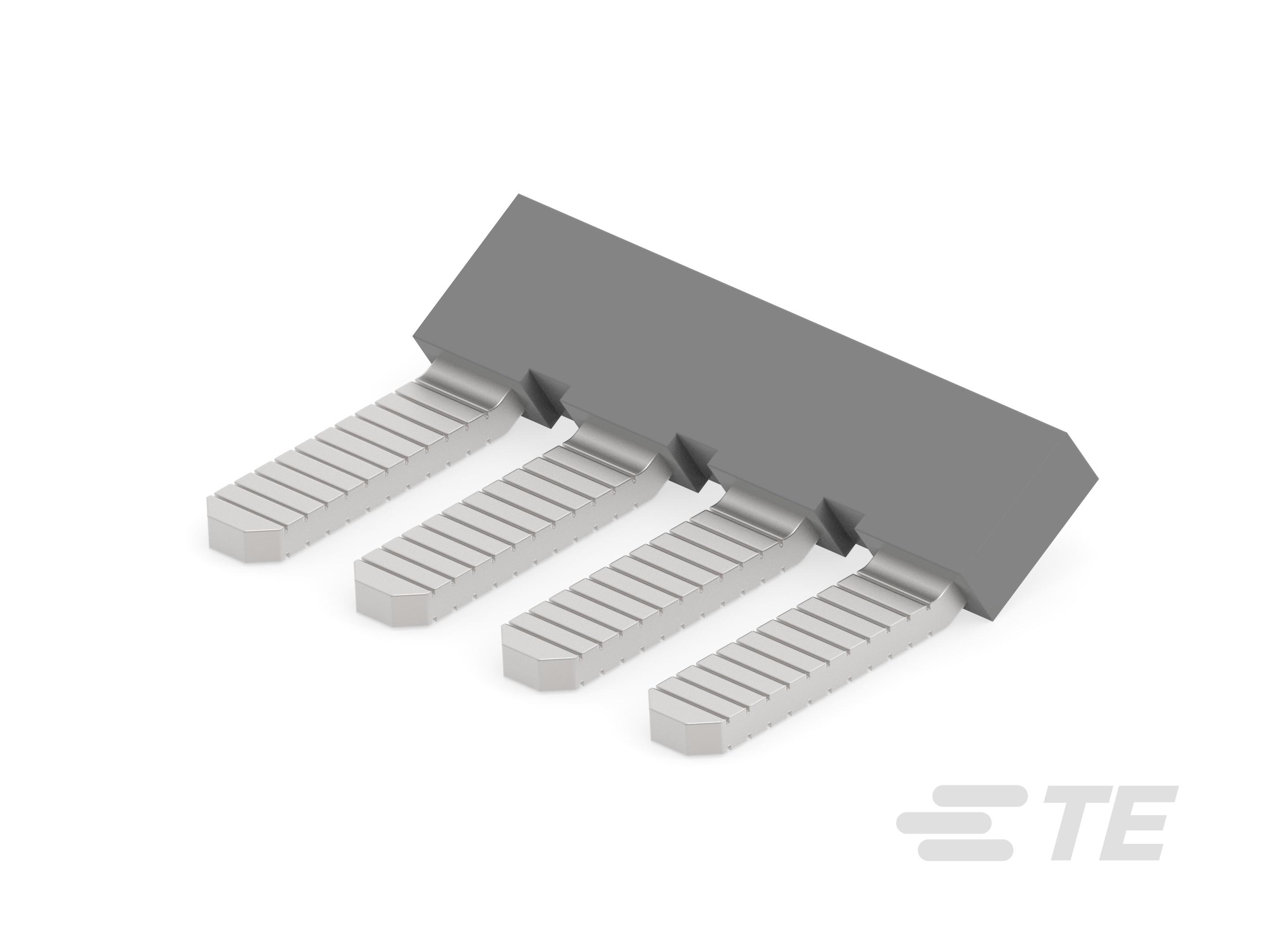

ENTRELEC 1SNA116540R2500 IP20 Comb Jumper bars
Part Number # 1SNA116540R2500
SKU # 2189252
ENTRELEC 1SNA116540R2500 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA116540R2500 |
| SKU #: | 2189252 |
| Dimensions: | 8 mm |
| Series: | ENTRELEC SNA |
| Suitable For Use With: | Terminal Blocks and Strips |
| Type: | PC8-4 |
| UNSPSC: | 39121410 |
| UPC: | 00804325227148 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA116540R2500 IP20 Comb Jumper bars
Brand: ENTRELEC
Part Number: 1SNA116540R2500
TE Connectivity, 1SNA116540R2500, Jumper Bar, PC8-4, Series: ENTRELEC SNA, 4 Pole, For Use With: TE Connectivityrminal Blocks and Strips, 8 mm Dimensions
Additional Description: TEC -1SNA116540R2500 (N) PC8-4 Lateral Jumper Bars Black 011654025 1SNA116540R2500 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: IP20 Comb Jumper bars, - direct insertion in the screw clamp before tightening the screws, above the eventual conductor (if conductor used with ferrule, we recommend the use of long ferrule for optimized mounting ergonomy with test disconnect terminal blocks), - Multiple versions available in pre-cut poles for test disconnect terminal blocks applications.
1SNA116540R2500 Application
For Power1SNA116540R2500 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA116540R2500 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2189252Part Number #1SNA116540R2500UNSPSC39121410UPC00804325227148
Image provided may only be a representation of final product and may include optional equipment
