ENTRELEC 1SNA125116R0100 Flexibility: snap onto symmetrical and asymmetrical rails
Part Number # 1SNA125116R0100
SKU # 12413

1SNA125116R0100
ENTRELEC 1SNA125116R0100 Flexibility: snap onto symmetrical and asymmetrical rails
Part Number # 1SNA125116R0100
SKU # 12413
ENTRELEC 1SNA125116R0100 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA125116R0100 |
| SKU #: | 12413 |
| Dimensions: | 44.5 mm H x 6 mm W x 40.5 mm L |
| Type: | M4/6.N |
| UNSPSC: | 39121410 |
| UPC: | 00662019023908 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA125116R0100 Flexibility: snap onto symmetrical and asymmetrical rails
Brand: ENTRELEC
Part Number: 1SNA125116R0100

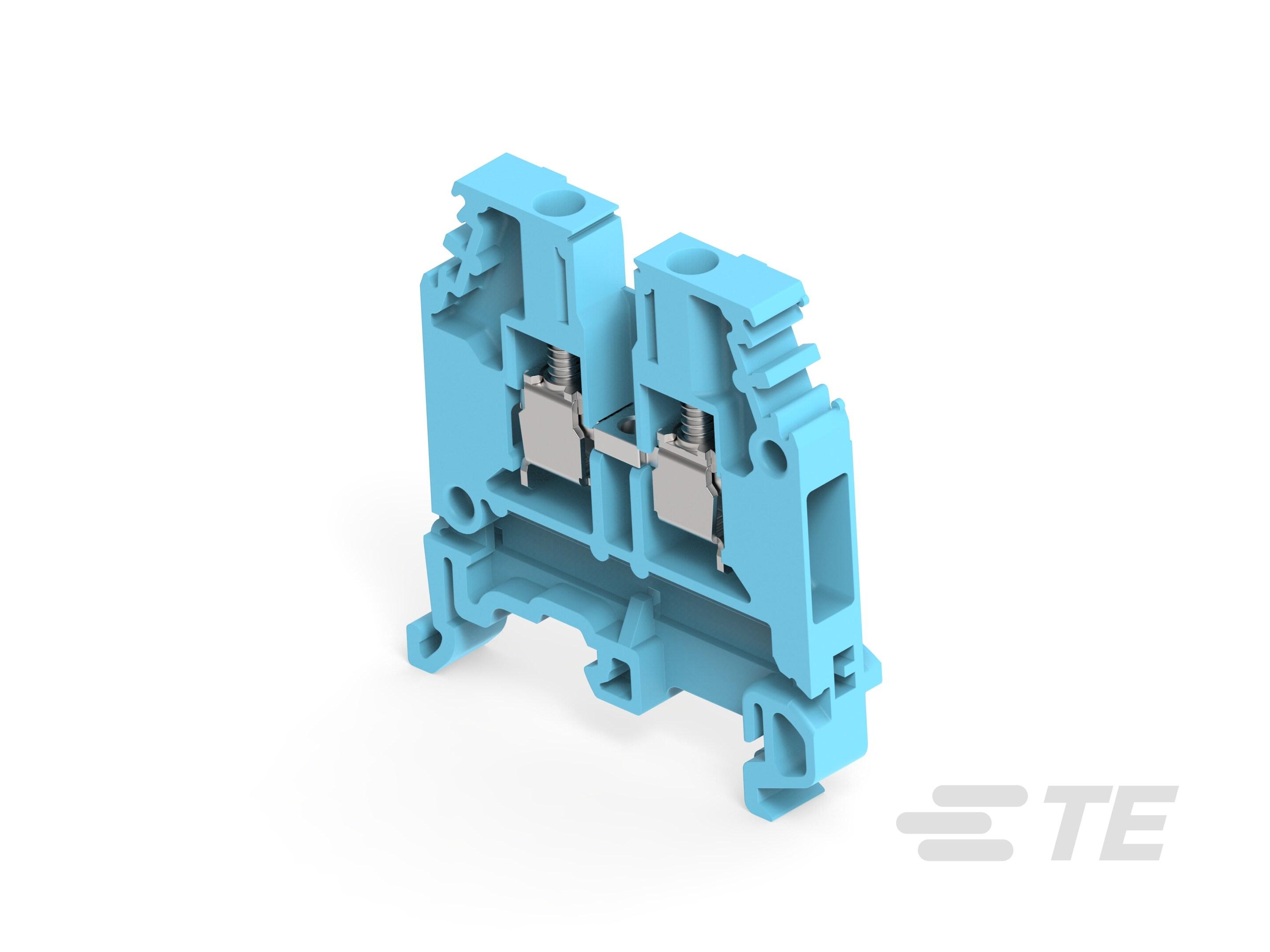

TE Connectivity, 1SNA125116R0100, TE Connectivityrminal Block, M4/6.N, Series: SNA, 1 kV, 32 A, 2 Pole, 10 |AWG Wire, 9.5 mm Wire Strip Length, 6 mm Spacing, 0.5 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Blue, 44.5 mm H x 6 mm W x 40.5 mm L Dimensions
Additional Description: TEC -1SNA125116R0100 M4/6.N Screw Clamp Terminal Blocks - Feed-through - Blue BLUE 012511601
Catalog Description: - Flexibility: snap onto symmetrical and asymmetrical rails, - Many colors are available in addition to our generic grey to help you quickly identify any specific functions.
1SNA125116R0100 Application
For Signal1SNA125116R0100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA125116R0100 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #12413Part Number #1SNA125116R0100UNSPSC39121410UPC00662019023908
Image provided may only be a representation of final product and may include optional equipment
