Part Number # 1SNA125120R1100
SKU # 362585
Image Disclaimers Message
Brand: ENTRELEC
1SNA125120R1100

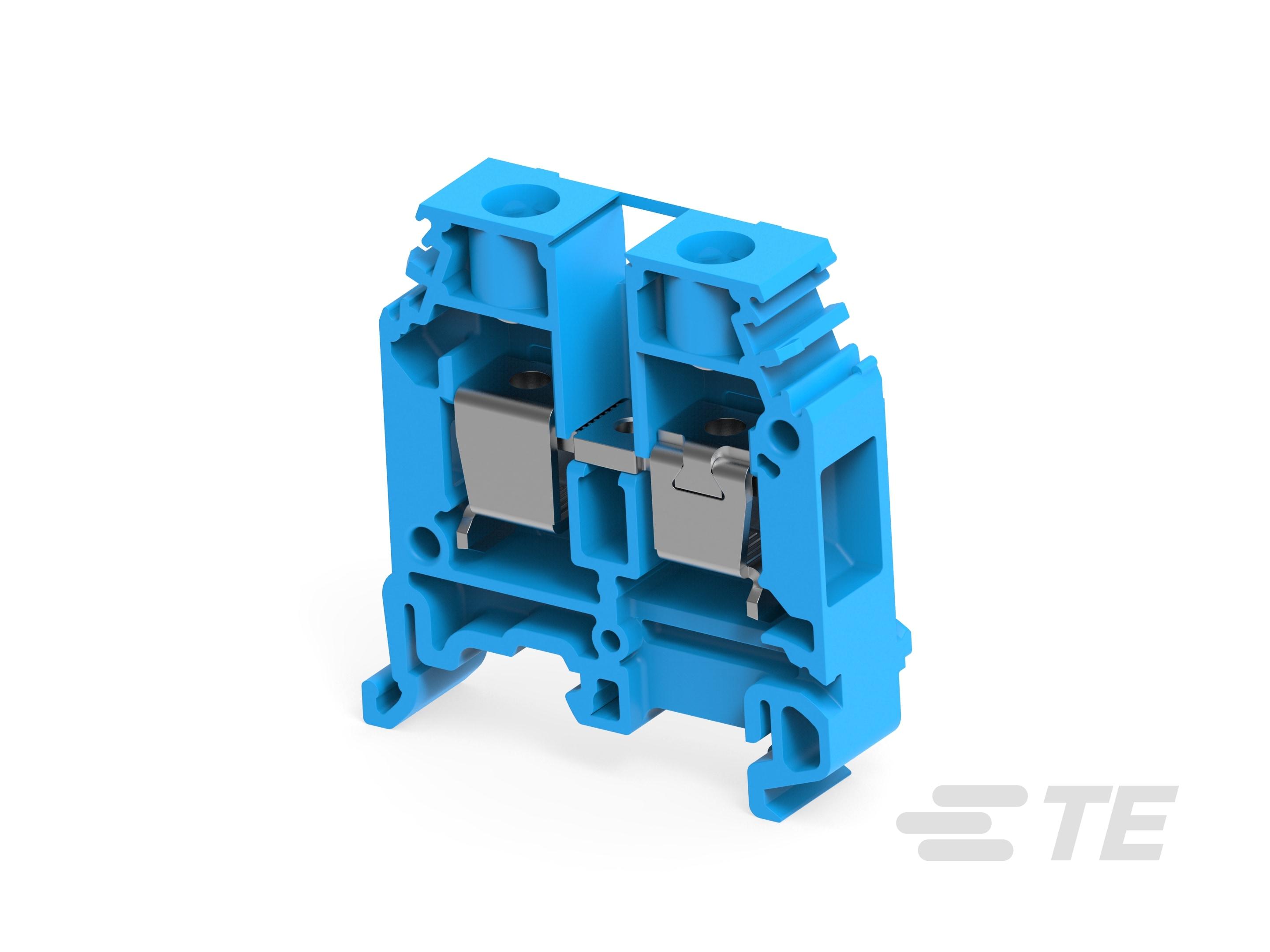

ENTRELEC 1SNA125120R1100 Flexibility: snap onto symmetrical and asymmetrical rails
Part Number # 1SNA125120R1100
SKU # 362585
$96.50 / 50Each
Typical price:$124.30 / Each
ENTRELEC 1SNA125120R1100 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA125120R1100 |
| SKU #: | 362585 |
| Amperage Rating: | 57 A |
| Dimensions: | 40.5 mm H x 10 mm W x 40.5 mm L |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 10 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Screw |
| Torque Rating: | 1.2 N-m |
| Type: | M10/10.N |
| Wire Size: | 6 AWG |
| Color: | Blue |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019958934 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$96.50 / 50Each
Typical price:$124.30 / Each
Quantity:
- TE Connectivity, 1SNA125120R1100, TE Connectivityrminal Block, M10/10.N, Series: SNA, 1 kV, 57 A, 2 Pole, 6 AWG Wire, 12 mm Wire Strip Length, 10 mm Spacing, 1.2 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Blue, 40.5 mm H x 10 mm W x 40.5 mm L Dimensions
1SNA125120R1100 Application
For Signal1SNA125120R1100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA125120R1100 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #362585Part Number #1SNA125120R1100UNSPSC39121410UPC00662019958934
