ENTRELEC 1SNA125124R0100 Closed terminal block: no end section needed
Part Number # 1SNA125124R0100
SKU # 2195588

1SNA125124R0100
ENTRELEC 1SNA125124R0100 Closed terminal block: no end section needed
Part Number # 1SNA125124R0100
SKU # 2195588
ENTRELEC 1SNA125124R0100 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA125124R0100 |
| SKU #: | 2195588 |
| Dimensions: | 49 mm H x 16 mm W x 46.5 mm L |
| Type: | M35/16.N |
| UNSPSC: | 39121410 |
| UPC: | 00662019958941 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA125124R0100 Closed terminal block: no end section needed
Brand: ENTRELEC
Part Number: 1SNA125124R0100
TE Connectivity, 1SNA125124R0100, TE Connectivityrminal Block, M35/16.N, Series: SNA, 1 kV, 125 A, 2 Pole, 17 mm Wire Strip Length, 16 mm Spacing, 2.8 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Blue, 49 mm H x 16 mm W x 46.5 mm L Dimensions
Additional Description: TEC -1SNA125124R0100 (N) M35/16.N Screw Clamp Terminal Blocks - Feed-through - Blue 012512401 NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Closed terminal block: no end section needed, optimized rigidity, - Flexibility: snap onto symmetrical and asymmetrical rails, - Use of Jumper bars requires the user to cut out the partition.
1SNA125124R0100 Application
For Signal1SNA125124R0100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA125124R0100 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2195588Part Number #1SNA125124R0100UNSPSC39121410UPC00662019958941

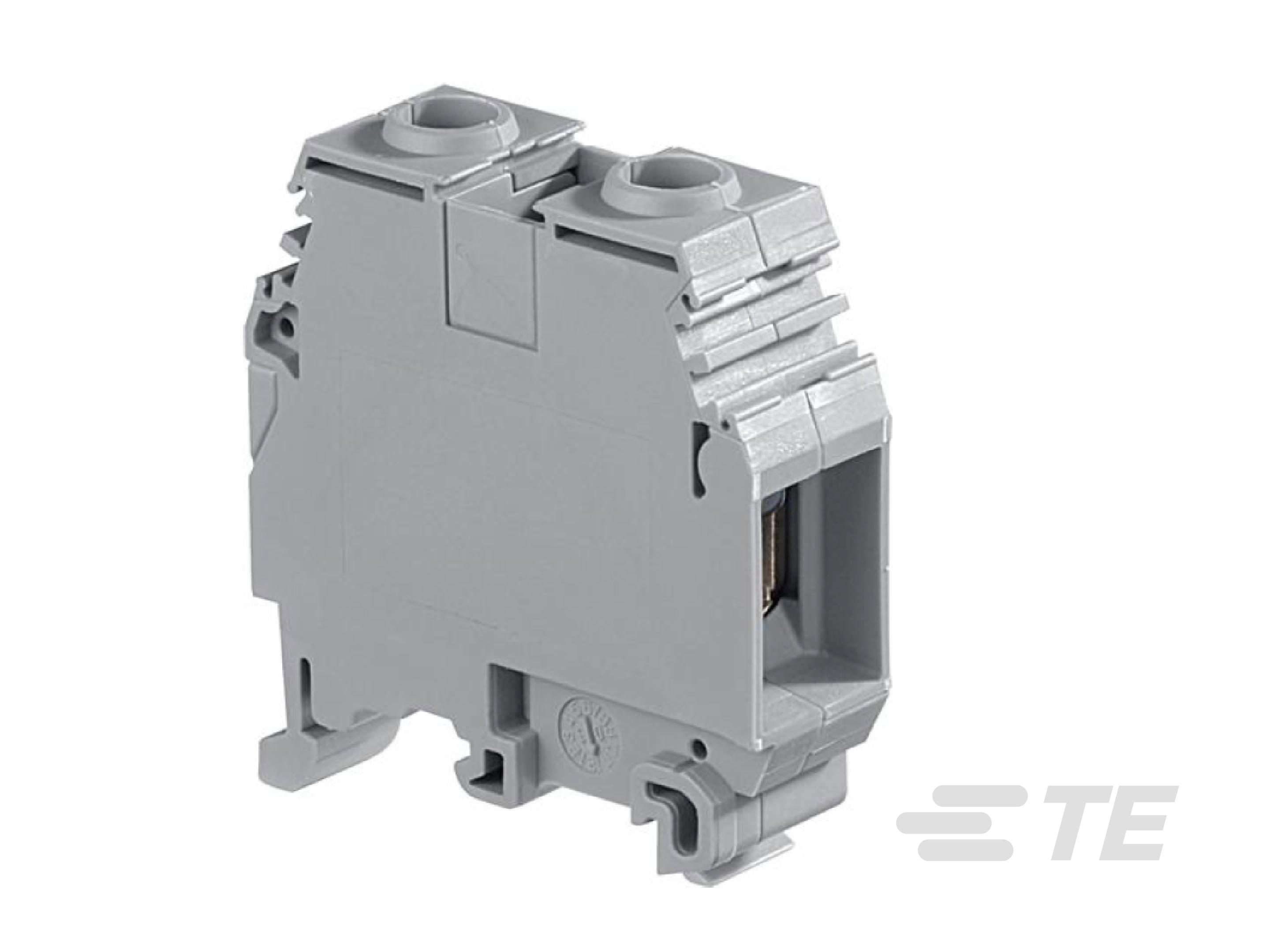

Image provided may only be a representation of final product and may include optional equipment
