Part Number # 1SNA125126R0300
SKU # 1711563
Image Disclaimers Message
1SNA125126R0300

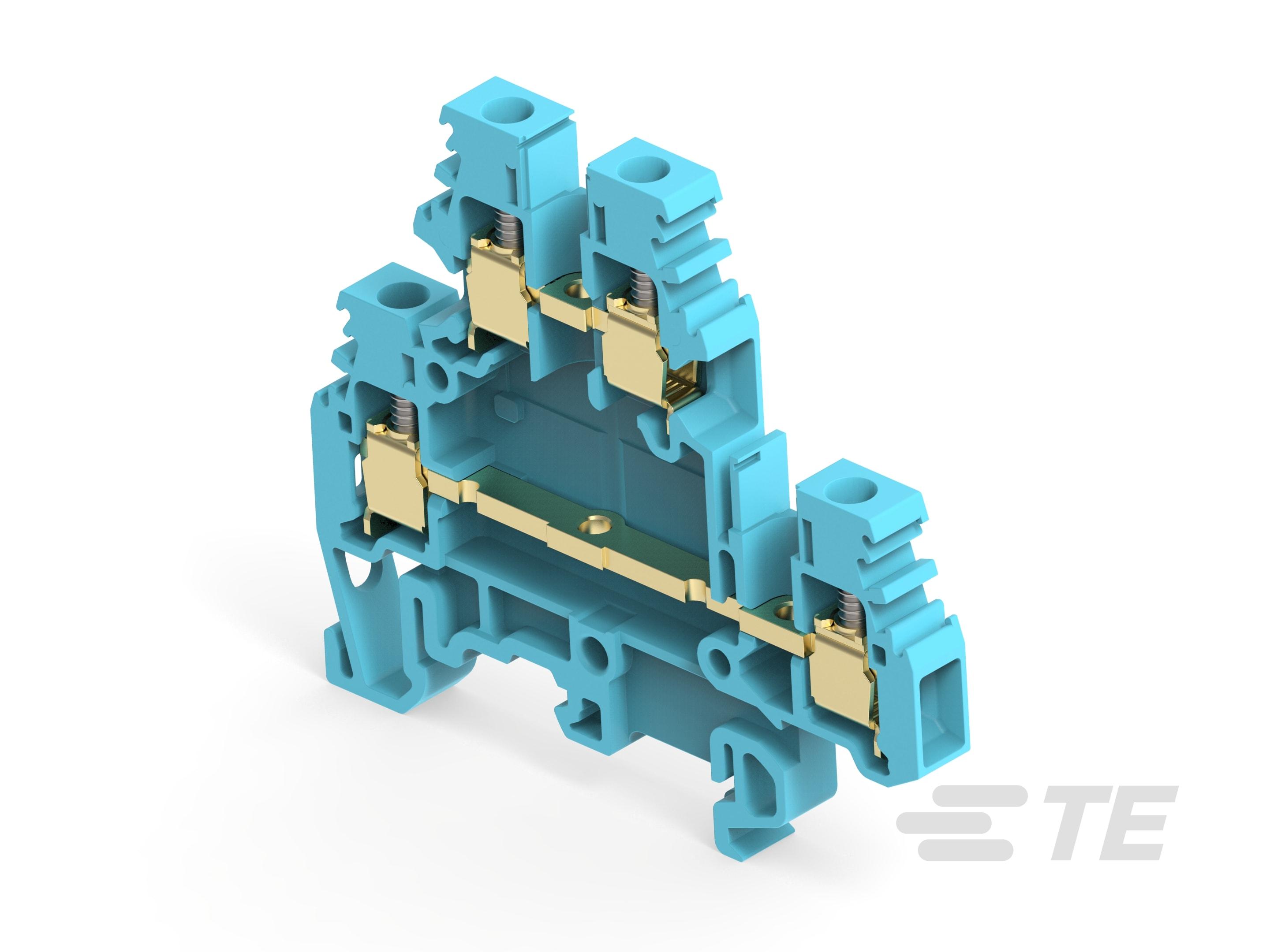

ENTRELEC 1SNA125126R0300 M4/6.D2 with partition
Part Number # 1SNA125126R0300
SKU # 1711563
ENTRELEC 1SNA125126R0300 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA125126R0300 |
| SKU #: | 1711563 |
| Amperage Rating: | 32 A |
| Dimensions: | 65.5 mm H x 6 mm W x 52 mm L |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Screw |
| Type: | M4/6.D2.1.N |
| Wire Size: | 12 AWG |
| Color: | Blue |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019958958 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA125126R0300 M4/6.D2 with partition
Brand: ENTRELEC
Part Number: 1SNA125126R0300
TE, 1SNA125126R0300, Terminal Block, M4/6.D2.1.N, Series: SNA, 800 V, 32 A, 2 Pole, 12 AWG Wire, 6 mm Spacing, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Blue, 65.5 mm H x 6 mm W x 52 mm L Dimensions
Additional Description: TEC -1SNA125126R0300 M4/6.D2.1.N Screw Clamp Terminal Blocks - Double deck - Blue 012512603
Catalog Description: - M4/6.D2 with partition, particulary adapted when many test sockets are used: no circuit separators needed, - Use of jumper bars requires the user to cut out the partition.
1SNA125126R0300 Application
For Signal1SNA125126R0300 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA125126R0300 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #1711563Part Number #1SNA125126R0300UNSPSC39121410UPC00662019958958
