ENTRELEC 1SNA125486R0500 Flexibility: snap onto symmetrical and asymmetrical rails
Part Number # 1SNA125486R0500
SKU # 308531

1SNA125486R0500
ENTRELEC 1SNA125486R0500 Flexibility: snap onto symmetrical and asymmetrical rails
Part Number # 1SNA125486R0500
SKU # 308531
ENTRELEC 1SNA125486R0500 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA125486R0500 |
| SKU #: | 308531 |
| Dimensions: | 44.5 mm H x 5 mm W x 40.5 mm L |
| Type: | MA2.5/5.N |
| UNSPSC: | 39121410 |
| UPC: | 00662019959054 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA125486R0500 Flexibility: snap onto symmetrical and asymmetrical rails
Brand: ENTRELEC
Part Number: 1SNA125486R0500
TE, 1SNA125486R0500, Terminal Blocks, MA2.5/5.N, Series: SNA, 1000 V, 24 A, 4 Pole, 12 AWG Wire, 11 mm Wire Strip Length, Clamp Terminal, 5.2 mm Spacing, DIN Rail Mounting, Screw Connection, -55 to 110?| deg C, Polyamide, Blue, 44.5 mm H x 5 mm W x 40.5 mm L Dimensions
Additional Description: TEC -1SNA125486R0500 MA2.5/5.N Screw Clamp Terminal Blocks - Feed-through - Blue 012548605
Catalog Description: - Flexibility: snap onto symmetrical and asymmetrical rails, - Many colors are available in addition to our generic grey to help you quickly identify any specific functions.
1SNA125486R0500 Application
For Signal1SNA125486R0500 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA125486R0500 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #308531Part Number #1SNA125486R0500UNSPSC39121410UPC00662019959054

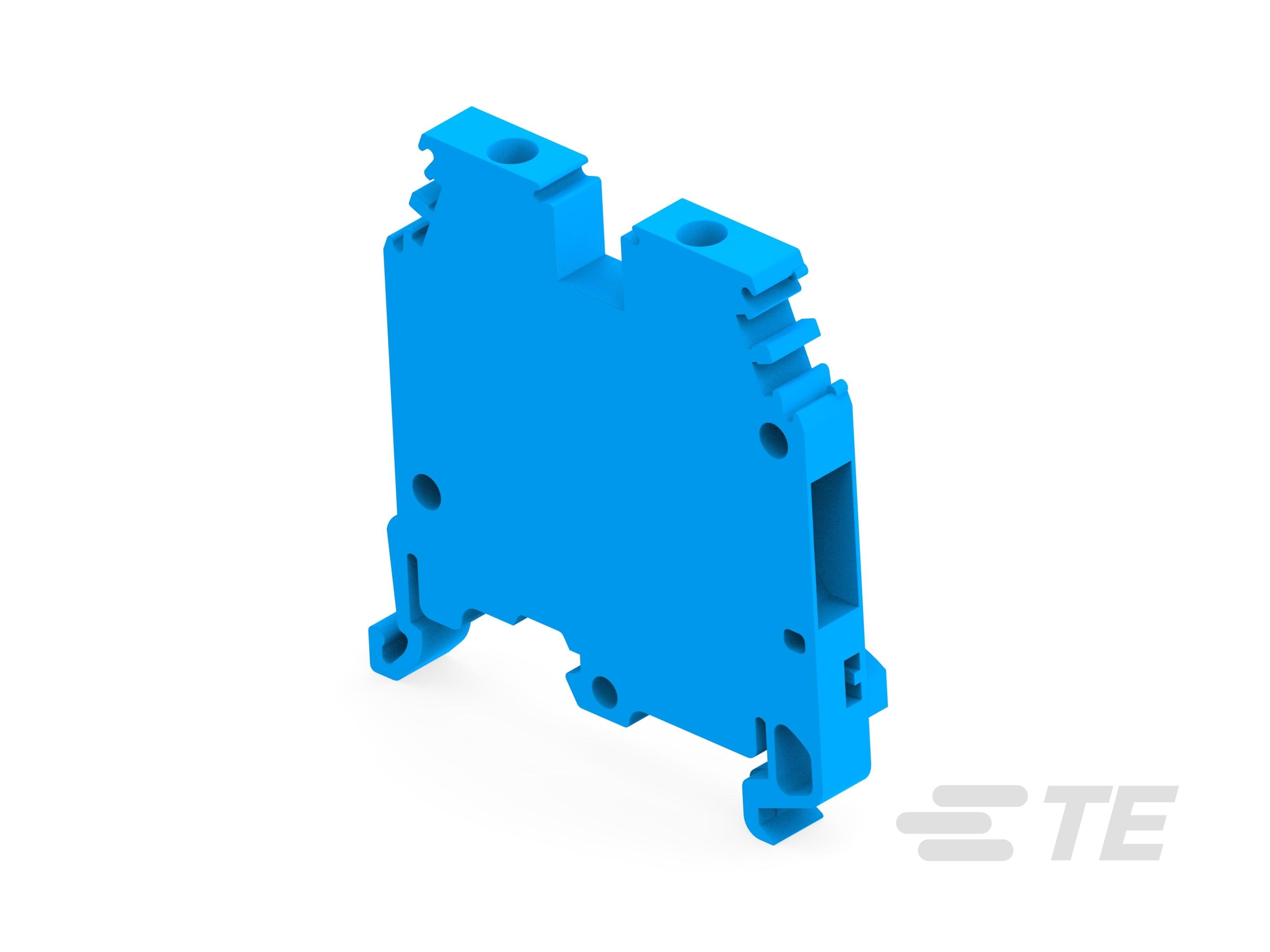

Image provided may only be a representation of final product and may include optional equipment
