Part Number # 1SNA146305R0400
SKU # 2198165
Image Disclaimers Message
1SNA146305R0400

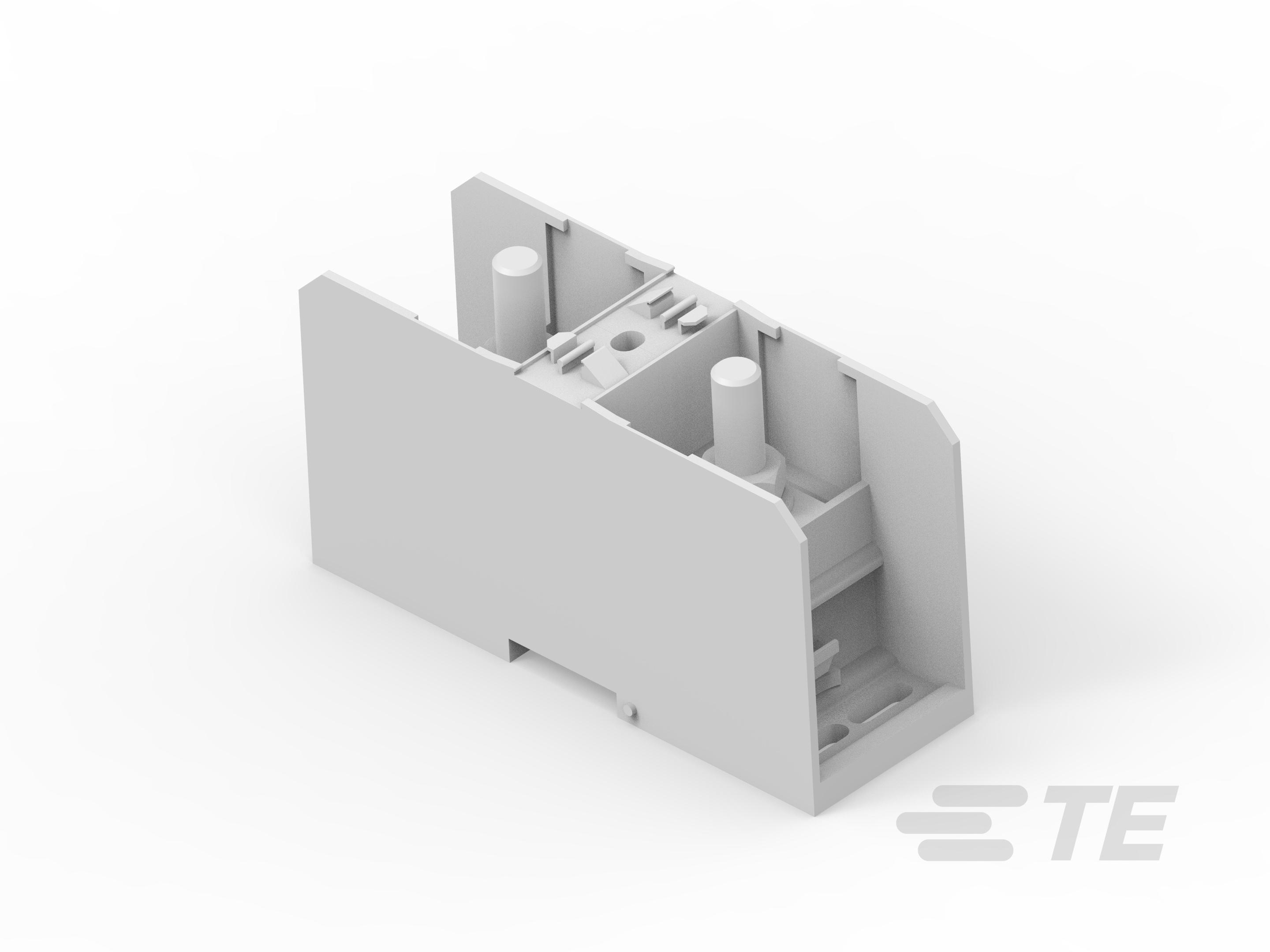

ENTRELEC 1SNA146305R0400 Rated cross section up to 300 mm2 / 1000 Kcmil
Part Number # 1SNA146305R0400
SKU # 2198165
ENTRELEC 1SNA146305R0400 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA146305R0400 |
| SKU #: | 2198165 |
| Amperage Rating: | 353 A |
| Dimensions: | 163 mm H x 55 mm W x 82.5 mm L |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 55 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Terminal Type: | Stud |
| Type: | D185/55.FF.EX |
| Color: | Gray |
| Connection type: | Stud |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00804325453455 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA146305R0400 Rated cross section up to 300 mm2 / 1000 Kcmil
Brand: ENTRELEC
Part Number: 1SNA146305R0400
TE, 1SNA146305R0400, Terminal Block, D185/55.FF.EX, Series: SNA, 353 A, 2 Pole, Stud Terminal, 55 mm Spacing, DIN Rail Mounting, -55 to 110 deg C, Polyamide, Gray, 163 mm H x 55 mm W x 82.5 mm L Dimensions
Additional Description: TEC -1SNA146305R0400 (N) D185/55.FF.EX Stud Terminal Blocks Feed-through Grey 1SNA146305R0400 NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: - Rated cross section up to 300 mm2 / 1000 Kcmil, IP20 protection cover, - Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130 and DIN 46234, various marking options, rail or base mounting.
1SNA146305R0400 Application
For Signal1SNA146305R0400 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA146305R0400 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #2198165Part Number #1SNA146305R0400UNSPSC39121410UPC00804325453455
