1SNA163313R2400

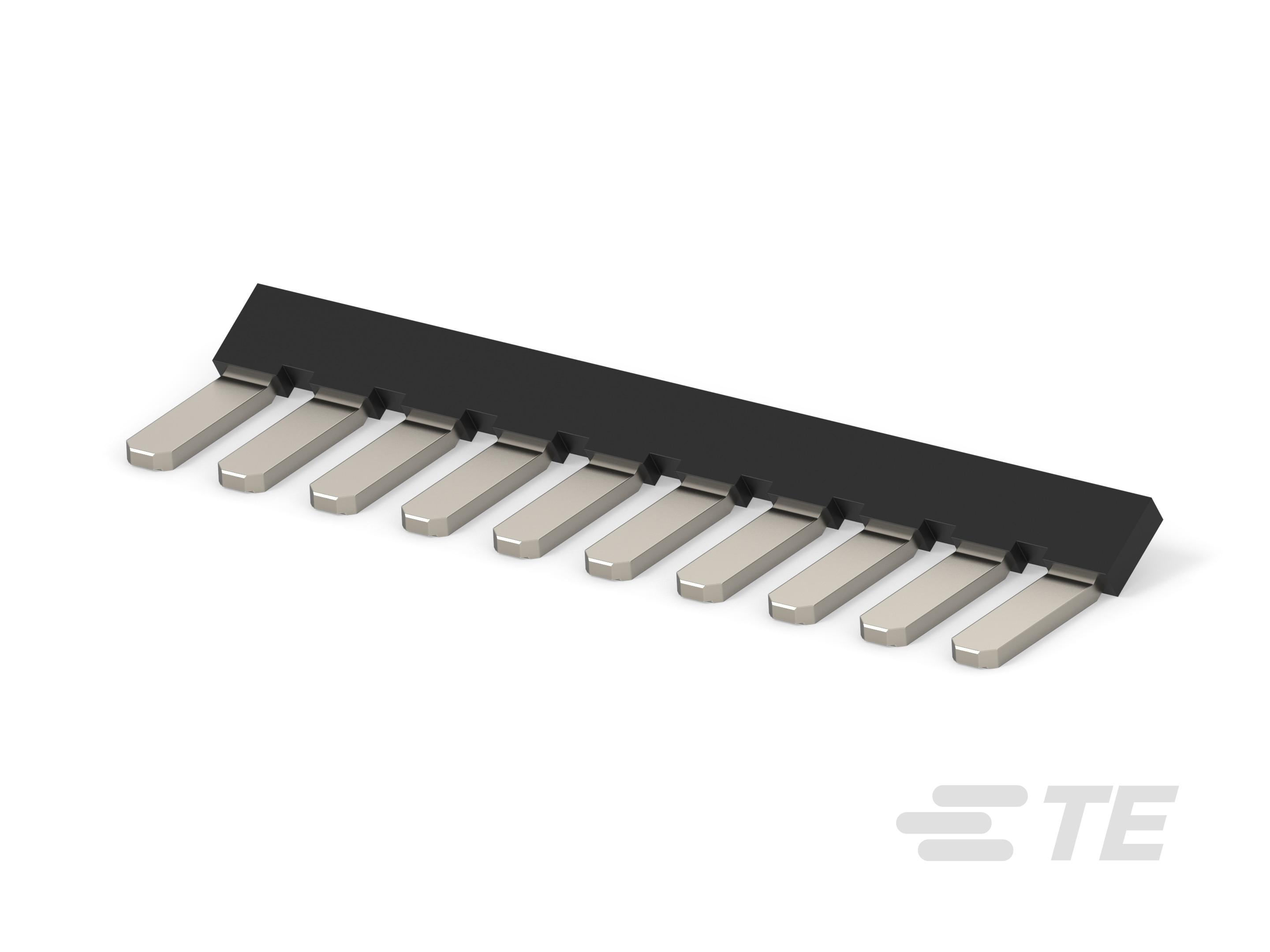

ENTRELEC 1SNA163313R2400 IP20 Comb Jumper bars
Part Number # 1SNA163313R2400
SKU # 1711644
ENTRELEC 1SNA163313R2400 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA163313R2400 |
| SKU #: | 1711644 |
| Dimensions: | 8 mm H x 78 mm W x 22 mm L |
| Number of Poles: | 10 |
| Series: | PC8, SNK |
| Suitable For Use With: | SNA Series Terminal Block, Terminal Block and strips |
| Type: | Comb |
| Country of origin: | FR |
| Material: | Polyamide |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019959801 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA163313R2400 IP20 Comb Jumper bars
Brand: ENTRELEC
Part Number: 1SNA163313R2400
TE, 1SNA163313R2400, Jumper Bar, Comb, Series: SNK, 10 Pole, For Use With: Terminal Block and strips, 8 mm H x 78 mm W x 22 mm L Dimensions
Additional Description: TEC -1SNA163313R2400 PC8-10 Lateral Jumper Bars Black 016331324
Catalog Description: IP20 Comb Jumper bars, - direct insertion in the screw clamp before tightening the screws, above the eventual conductor (if conductor used with ferrule, we recommend the use of long ferrule for optimized mounting ergonomy with test disconnect terminal blocks), - Multiple versions available in pre-cut poles for test disconnect terminal blocks applications.
1SNA163313R2400 Application
For Power1SNA163313R2400 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA163313R2400 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #1711644Part Number #1SNA163313R2400UNSPSC39121410UPC00662019959801
