Part Number # 1SNA165115R1000
SKU # 44352
Image Disclaimers Message
Brand: ENTRELEC
1SNA165115R1000

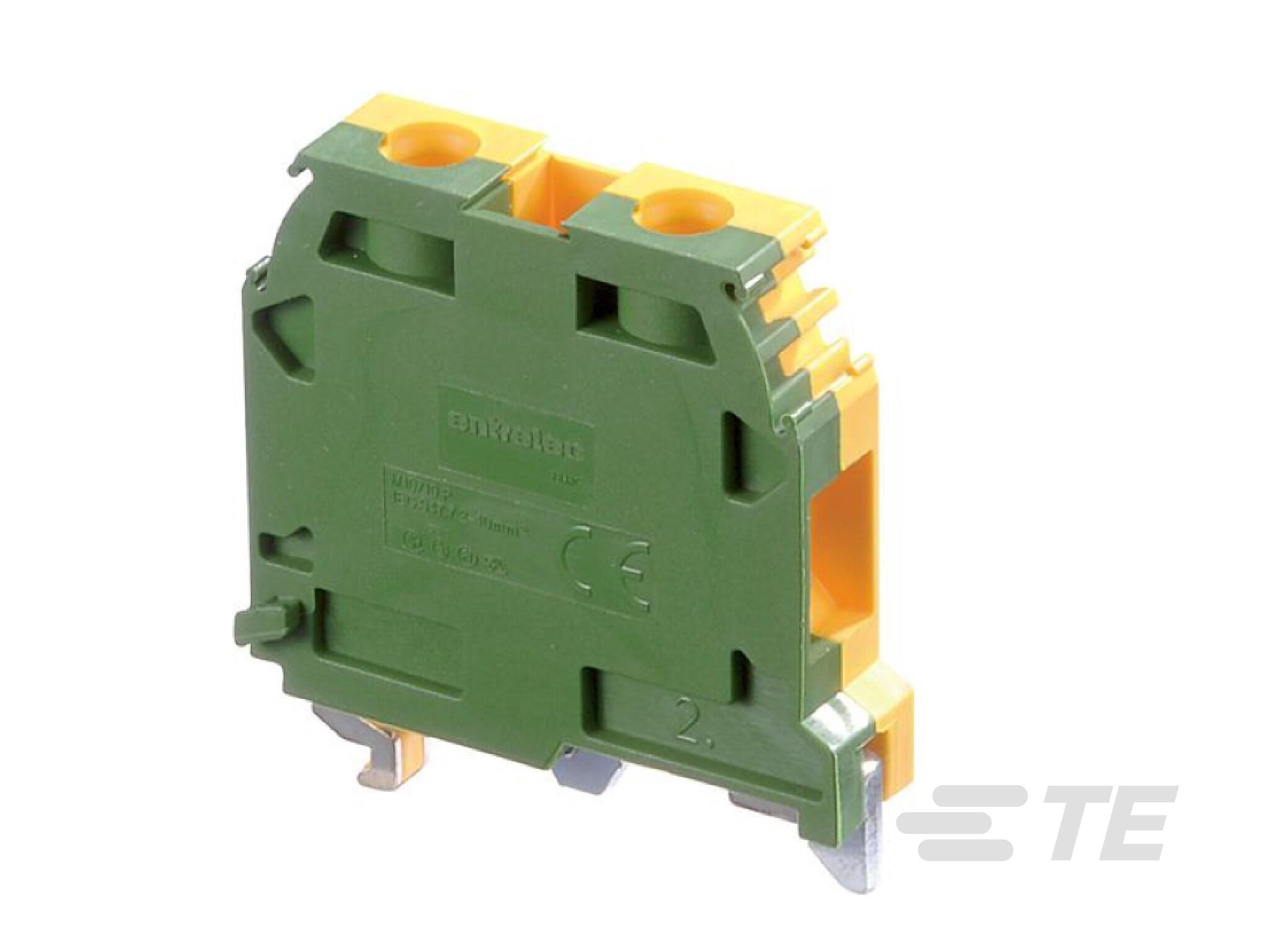

ENTRELEC 1SNA165115R1000 Reliable electrical and mechanical contact with the rail
Part Number # 1SNA165115R1000
SKU # 44352
$5.99 / Each
Typical price:$7.71 / Each
ENTRELEC 1SNA165115R1000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA165115R1000 |
| SKU #: | 44352 |
| Amperage Rating: | 1200 A |
| Dimensions: | 43.5 mm H x 10 mm W x 40.5 mm D, 43.5 mm H x 10 mm W x 40.5 mm L |
| Series: | M10/10-P, SNA |
| Spacing: | 10, 10 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C |
| Terminal Type: | Ground |
| Torque Rating: | 1.2 N-m, 1.4, 1.4 N-m |
| Type: | Ground |
| Color: | Green/Yellow |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019960227 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.99 / Each
Typical price:$7.71 / Each
Quantity:
ENTRELEC 1SNA165115R1000 Reliable electrical and mechanical contact with the rail
Brand: ENTRELEC
Part Number: 1SNA165115R1000
ABB Terminal Block, Series: SNA, 12 mm Wire Strip Length, Ground Terminal, 10 mm Spacing, 1.4 N-m, DIN Rail Mount, Screw Clamp, -55 to 110 deg C, Green/Yellow, 43.5 mm H x 10 mm W x 40.5 mm D
Additional Description: TEC -1SNA165115R1000 M10/10.P Screw Clamp Terminal Blocks - Ground - Green-Yellow 016511510
Catalog Description: - Reliable electrical and mechanical contact with the rail, - Flexibility: snap onto symmetrical and asymmetrical rails.
1SNA165115R1000 Application
For Signal application1SNA165115R1000 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA165115R1000 Standards
UL 94V-0|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #44352Part Number #1SNA165115R1000UNSPSC39121410UPC00662019960227
