Part Number # 1SNA176281R2200
SKU # 2218994
1SNA176281R2200

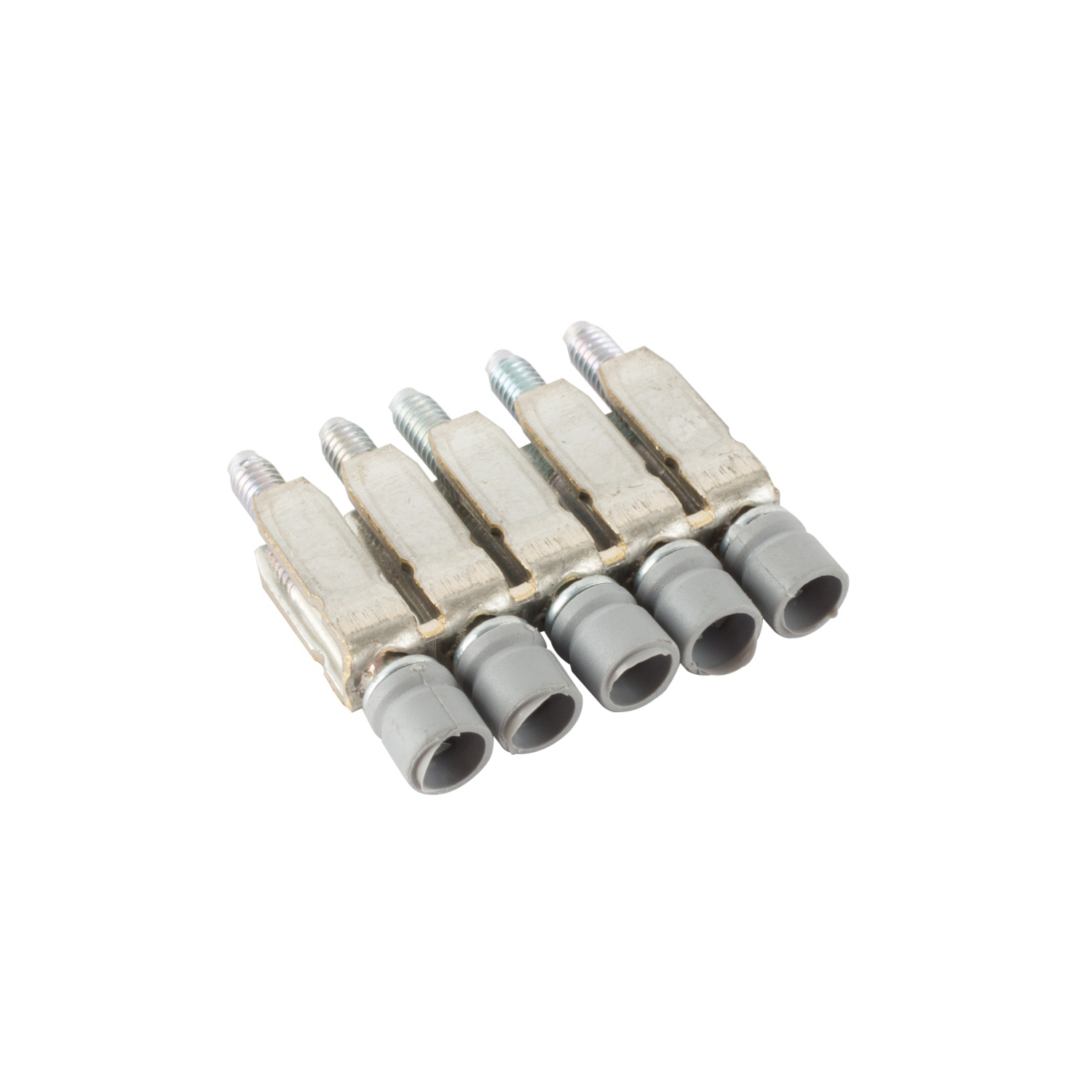

ENTRELEC 1SNA176281R2200 Terminal Block & Strip Conducting Accessories
Part Number # 1SNA176281R2200
SKU # 2218994
ENTRELEC 1SNA176281R2200 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA176281R2200 |
| SKU #: | 2218994 |
| Dimensions: | 20.6 mm H x 5 mm W x 5 mm L |
| Series: | BJMI5-5 |
| Suitable For Use With: | D1.5/5-ADO-NF/D1/5-ADO/D1/5-D2-ADO/D2-5/5-ADO/D2-5/5-D2-ADO/MA2-5/5/MA2-5/5-2CPE/MA2-5/5-CPE/MA2-5/5D-2CPE |
| UNSPSC: | 39121410 |
| UPC: | 00662019962986 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA176281R2200 Terminal Block & Strip Conducting Accessories
Brand: ENTRELEC
Part Number: 1SNA176281R2200
TE, 1SNA176281R2200, Distribution Block, Low Voltage, Series: BJMI5-5, 24 A, For Use With: D1.5/5-ADO-NF/D1/5-ADO/D1/5-D2-ADO/D2-5/5-ADO/D2-5/5-D2-ADO/MA2-5/5/MA2-5/5-2CPE/MA2-5/5-CPE/MA2-5/5D-2CPE, Polyamide, Grey, 20.6 mm H x 5 mm W x 5 mm L Dimensions
Additional Description: TEC -1SNA176281R2200 BJMI5-5 POLES Jumper Bars 017628122
Catalog Description: Terminal Block & Strip Conducting Accessories
1SNA176281R2200 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA176281R2200 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2218994Part Number #1SNA176281R2200UNSPSC39121410UPC00662019962986
Image provided may only be a representation of final product and may include optional equipment
