ENTRELEC 1SNA176664R0100 Terminal Block & Strip Conducting Accessories
Part Number # 1SNA176664R0100
SKU # 346736

1SNA176664R0100
ENTRELEC 1SNA176664R0100 Terminal Block & Strip Conducting Accessories
Part Number # 1SNA176664R0100
SKU # 346736
ENTRELEC 1SNA176664R0100 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA176664R0100 |
| SKU #: | 346736 |
| Dimensions: | 23.3 mm H x 6 mm W x 5 mm L |
| Series: | BJMI6-3 |
| Suitable For Use With: | D1-5/6-ADO/D1-5/6-ADO.NF/D1-5/6-D2-ADO/D1-5/6-D2-ADO-NF/D4/6-ADO/D4/6-ADO-NC/D4/6-D2-ADO/M2-5/6-2G-2G/M4/6/M4/6-2G/M4/6-3A/M4/6-3A-NC/M4/6-4A/M4/6-G/M4/6-NC/M4/6-RS |
| UNSPSC: | 39121410 |
| UPC: | 00066201996303 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA176664R0100 Terminal Block & Strip Conducting Accessories
Brand: ENTRELEC
Part Number: 1SNA176664R0100
TE, 1SNA176664R0100, Distribution Block, Low Voltage, Series: BJMI6-3, 32 A, For Use With: D1-5/6-ADO/D1-5/6-ADO.NF/D1-5/6-D2-ADO/D1-5/6-D2-ADO-NF/D4/6-ADO/D4/6-ADO-NC/D4/6-D2-ADO/M2-5/6-2G-2G/M4/6/M4/6-2G/M4/6-3A/M4/6-3A-NC/M4/6-4A/M4/6-G/M4/6-NC/M4/6-RS, Polyamide, Grey, 23.3 mm H x 6 mm W x 5 mm L Dimensions
Additional Description: TEC -1SNA176664R0100 BJMI6-3 POLES Jumper Bars 017666401 1SNA176664R0100
Catalog Description: Terminal Block & Strip Conducting Accessories
1SNA176664R0100 Specifications
- Type BJM16
- 6 mm spacing
- Fractionnable model, composed of captive screws on a jumper bar, with IP20 protection touchproof
- This accessory can be used for connecting consecutive blocks only
- 32 A amperage rating
- G32, TH35-7.5, TH35-15 mounting on Din ra
1SNA176664R0100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA176664R0100 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #346736Part Number #1SNA176664R0100UNSPSC39121410UPC00066201996303

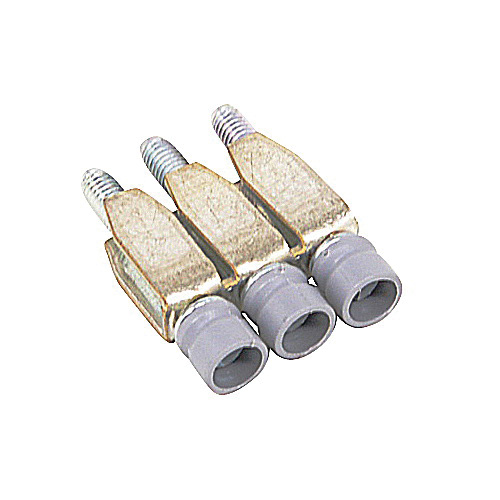

Image provided may only be a representation of final product and may include optional equipment
