Part Number # 1SNA176666R0300
SKU # 364683
Image Disclaimers Message
Brand: ENTRELEC
1SNA176666R0300
ENTRELEC 1SNA176666R0300 Terminal Block & Strip Conducting Accessories
Part Number # 1SNA176666R0300
SKU # 364683
$39.60 / 10Each
Typical price:$51.05 / Each
ENTRELEC 1SNA176666R0300 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA176666R0300 |
| SKU #: | 364683 |
| Amperage Rating: | 32 A |
| Dimensions: | 23.3 mm H x 6 mm W x 5 mm L |
| Series: | BJMI6-5 |
| Suitable For Use With: | D1-5/6-ADO/D1-5/6-ADO.NF/D1-5/6-D2-ADO/D1-5/6-D2-ADO-NF/D4/6-ADO/D4/6-ADO-NC/D4/6-D2-ADO/M2-5/6-2G-2G/M4/6/M4/6-2G/M4/6-3A/M4/6-3A-NC/M4/6-4A/M4/6-G/M4/6-NC/M4/6-RS |
| Type: | Low Voltage |
| Color: | Grey |
| Material: | Polyamide |
| UNSPSC: | 39121410 |
| UPC: | 00662019963051 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$39.60 / 10Each
Typical price:$51.05 / Each
Quantity:
ENTRELEC 1SNA176666R0300 Terminal Block & Strip Conducting Accessories
Brand: ENTRELEC
Part Number: 1SNA176666R0300

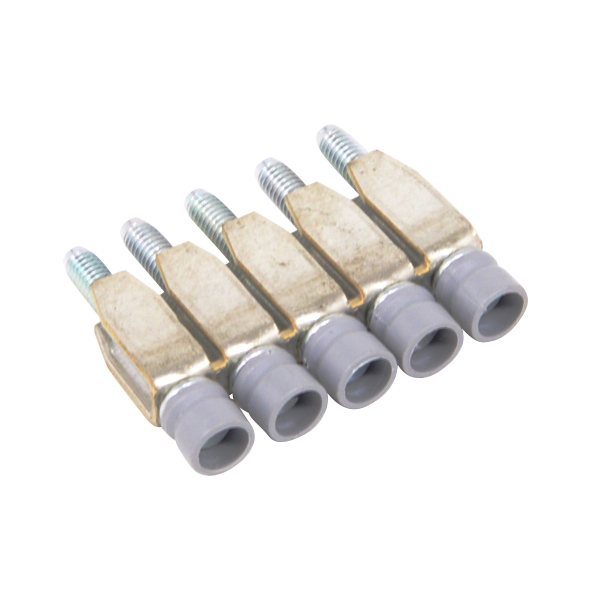

5 pole, type BJM16, 32 Amp assembled jumber bar with IP20 protection.
Additional Description: TEC -1SNA176666R0300 BJMI6-5 POLES Jumper Bars 017666603 1SNA176666R0300
Catalog Description: Terminal Block & Strip Conducting Accessories
1SNA176666R0300 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
SKU #364683Part Number #1SNA176666R0300UNSPSC39121410UPC00662019963051
