BJMI8-2
ENTRELEC 1SNA176669R1600 Terminal Block & Strip Conducting Accessories
Part Number # BJMI8-2
SKU # 2177034
$21.10 / 10Each
Typical price:$27.21 / Each
ENTRELEC BJMI8-2 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | BJMI8-2 |
| SKU #: | 2177034 |
| Amperage Rating: | 41 A |
| Dimensions: | 23.3 mm H x 8 mm W x 8 mm L |
| Number of Poles: | 2 |
| Series: | BJMI8-2 |
| Suitable For Use With: | C6/8/D2-5/8-ADO/D2-5/8-ADO-NF/D4/8-ADO/D4/8-ADO-NFD6/8-ADO/D6/8-ADO-NC/D6/8-ADO-RS/D6/8-D2-ADO/M4/8-D2-SB/M4/8-D2-SF/M4/8-D2-SF-N/M6/8/M6/8-D/M6/8-D2-NC/M6/8-NC/M6/8-RS, SNA Terminal Block, SNA Terminal Blocks |
| Type: | Low Voltage |
| Color: | Grey |
| Material: | Polyamide |
| UNSPSC: | 39121410 |
| UPC: | 00662019963075 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$21.10 / 10Each
Typical price:$27.21 / Each
Quantity:
ENTRELEC 1SNA176669R1600 Terminal Block & Strip Conducting Accessories
Brand: ENTRELEC
Part Number: BJMI8-2

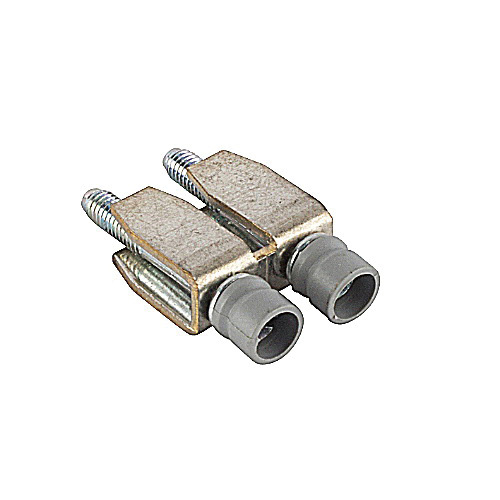

T&B Assembled Jumper Bar, 2 Pole, For Use With: SNA Terminal Block
Additional Description: TEC -1SNA176669R1600 BJMI8-2 POLES Jumper Bars 017666916
Catalog Description: Terminal Block & Strip Conducting Accessories, Jumper Bar, 2 Pole, Gray, Product Spacing .314 in [8 mm], -55 – 110 °C [-67 – 230 °F]
BJMI8-2 Specifications
- Type BJM18
- 8 mm spacing
- Fractionnable model, composed of captive screws on a jumper bar, with IP20 protection touchproof
- This accessory can be used for connecting consecutive blocks only
- 41 A amperage rating
- G32, TH35-7.5, TH35-15 mounting on Din ra
BJMI8-2 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
SKU #2177034Part Number #BJMI8-2UNSPSC39121410UPC00662019963075
