ENTRELEC 1SNA176670R1300 Terminal Block & Strip Conducting Accessories
Part Number # 1SNA176670R1300
SKU # 2186476

1SNA176670R1300
ENTRELEC 1SNA176670R1300 Terminal Block & Strip Conducting Accessories
Part Number # 1SNA176670R1300
SKU # 2186476
ENTRELEC 1SNA176670R1300 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA176670R1300 |
| SKU #: | 2186476 |
| Dimensions: | 23.3 mm H x 8 mm W x 8 mm L |
| Series: | BJMI8-3 |
| Suitable For Use With: | C6/8/D2-5/8-ADO/D2-5/8-ADO-NF/D4/8-ADO/D4/8-ADO-NF/D6/8-ADO/D6/8-ADO-NC/D6/8-ADO-RS/D6/8-D2-ADO/M4/8-D2-SB/M4/8-D2-SF/M4/8-D2-SF-NC/M6/8/M6/8-D/M6/8-D2-NC/M6/8-NC/M6/8-RS |
| UNSPSC: | 39121410 |
| UPC: | 00662019963082 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
ENTRELEC 1SNA176670R1300 Terminal Block & Strip Conducting Accessories
Brand: ENTRELEC
Part Number: 1SNA176670R1300
TE, 1SNA176670R1300, Distribution Block, Low Voltage, Series: BJMI8-3, 41 A, For Use With: C6/8/D2-5/8-ADO/D2-5/8-ADO-NF/D4/8-ADO/D4/8-ADO-NF/D6/8-ADO/D6/8-ADO-NC/D6/8-ADO-RS/D6/8-D2-ADO/M4/8-D2-SB/M4/8-D2-SF/M4/8-D2-SF-NC/M6/8/M6/8-D/M6/8-D2-NC/M6/8-NC/M6/8-RS, Polyamide, Grey, 23.3 mm H x 8 mm W x 8 mm L Dimensions
Additional Description: TEC -1SNA176670R1300 BJMI8-3 POLES Jumper Bars 017667013

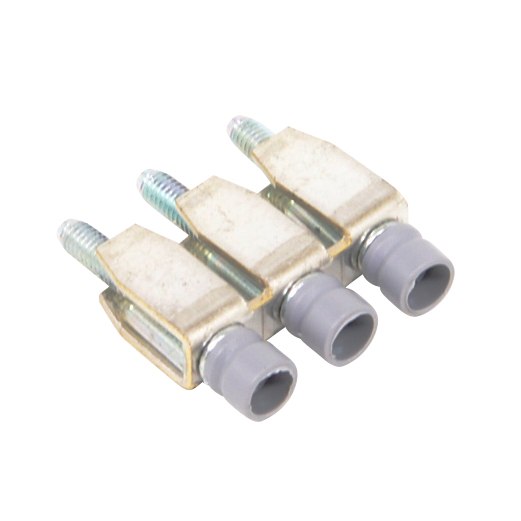

Catalog Description: Terminal Block & Strip Conducting Accessories, Jumper Bar, 3 Pole, Gray, Product Spacing .314 in [8 mm], -55 – 110 °C [-67 – 230 °F]
1SNA176670R1300 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA176670R1300 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2186476Part Number #1SNA176670R1300UNSPSC39121410UPC00662019963082
Image provided may only be a representation of final product and may include optional equipment
